74568 TE - Toro 122cm GrandStand Stand-On Mower (SN: 310000001 - 310999999) (2010) DECK ASSEMBLY Parts Diagram

122cm GrandStand Stand-On Mower

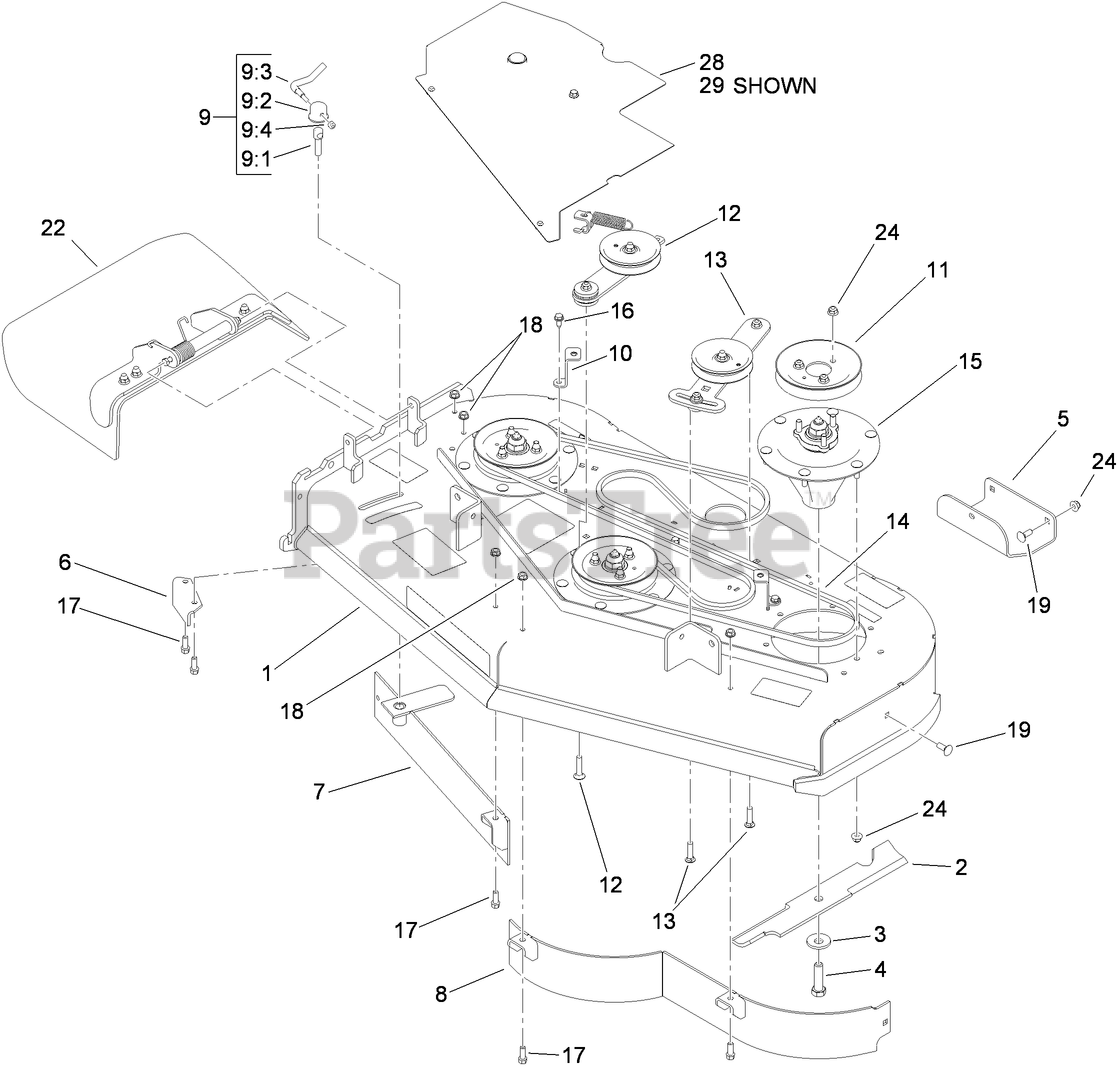

DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 119-7262

DECK ASM

$2382.99

$

Usually ships in 3-6 days

0

2

Toro 107-3192-03

BLADE-16.5 INCH (HIGH FLOW)

$27.99

$

In Stock, Qty 20+

0

3

Toro 103-0865

Washer-Blade Bolt, Heavy

$5.99

$

In Stock, Qty 20+

0

4

Toro 51-4060

SCREW-BLADE

$7.99

$

In Stock, Qty 20+

0

5

Toro 114-1908-01

SKID

$82.99

$

Usually ships in 3-6 days

0

6

Toro 107-8541-01

BAFFLE-DISCHARGE

$20.99

$

Usually ships in 3-6 days

0

7

Toro 114-1870-01

BAFFLE ASM

$153.99

$

Usually ships in 3-6 days

0

8

Toro 117-0410-01

48 INCH BAFFLE ASM

$263.99

$

Usually ships in 3-6 days

0

9

Toro 107-1664

LEVER ASM

$72.99

$

In Stock, only 4 left!

0

9:1

Toro 106-3239

Screw-Lock

$52.99

$

In Stock, only 2 left!

0

9:2

Toro 107-1644

CAP-LOCK

$18.99

$

Usually ships in 3-6 days

0

9:3

Toro 106-3241

Lever-Lock
(Superseded to 107-1664)

$72.99

$

In Stock, only 4 left!

0

9:4

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 119-7272-01

BELT COVER BRACKET ASM

$46.99

$

Usually ships in 3-6 days

0

11

Toro 115-7440

PULLEY

$66.99

$

Usually ships in 3-6 days

0

12

Toro 117-0445

SPRING IDLER ASM

$188.99

$

Usually ships in 3-6 days

0

13

Toro 117-0446

IDLER ADJUST ASM

$188.99

$

Usually ships in 3-6 days

0

14

Toro 114-0453

BELT-V

$64.99

$

Usually ships in 3-6 days

0

15

Toro 117-6158

SPINDLE ASM
(Superseded to 119-8560)

$532.99

$

In Stock, Qty 16

0

16

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

17

Toro 92-1624

SCREW-HWH
(Superseded to 95-1726)

$2.99

$

In Stock, Qty 20+

0

18

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

19

Toro 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

22

Toro 114-1910

DEFLECTOR ASM

$263.99

$

Usually ships in 3-6 days

0

24

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 119-7268

LH BELT COVER ASM

$317.99

$

Usually ships in 3-6 days

0

29

Toro 119-7269

RH BELT COVER ASM

$317.99

$

Usually ships in 3-6 days

0
