74568 - Toro 48" GrandStand Stand-On Mower (SN: 290003001 - 290999999) (2009) LOWER CONTROL ASSEMBLY Parts Diagram

48" GrandStand Stand-On Mower

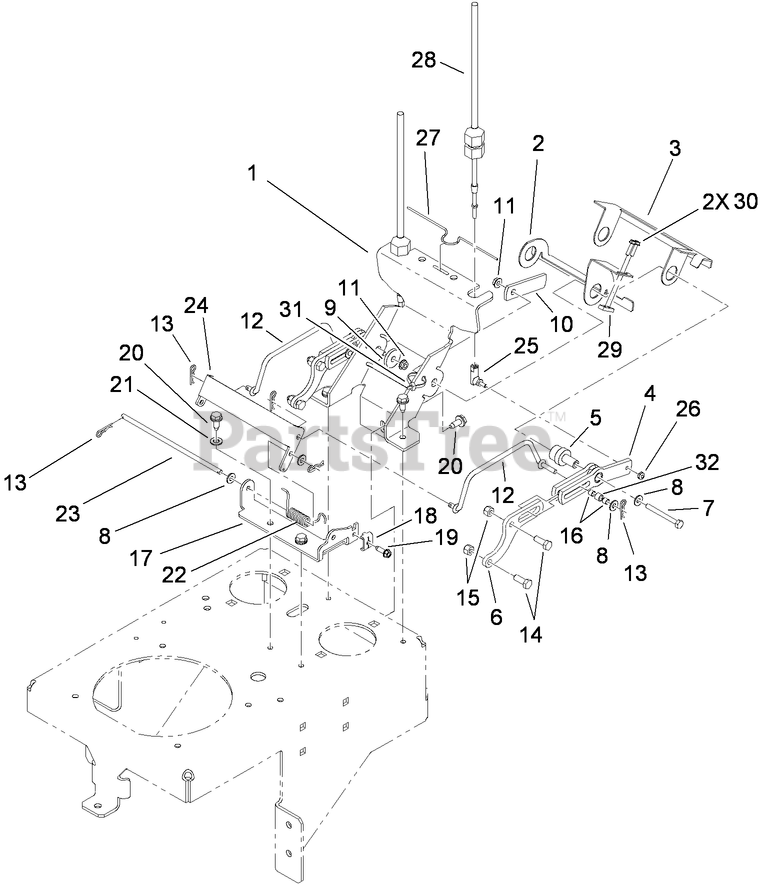

LOWER CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-5304-01

MOUNT-LINKAGE, DRIVE

$116.99

$

Usually ships in 3-6 days

0

2

Toro 114-1993

LEVER-SWITCH

$49.99

$

Usually ships in 3-6 days

0

3

Toro 114-1999

LEVER-SWITCH

$43.99

$

Usually ships in 3-6 days

0

4

Toro 114-1956

CONTROL FORK ASM

$117.99

$

Usually ships in 3-6 days

0

5

Toro 114-1955

HUB-SHOULDER

$28.99

$

In Stock, Qty 10

0

6

Toro 114-3547

ARM-CONTROL

$18.99

$

Usually ships in 3-6 days

0

7

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

8

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

9

Toro 65-8270

WASHER

$1.99

$

Usually ships in 3-6 days

0

10

Toro 114-5155-03

ARM-SWITCH, STOP

$10.99

$

Usually ships in 3-6 days

0

11

Toro 32128-14

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

12

Toro 114-5295

ROD-LINK, SHIFTER

$63.99

$

Usually ships in 3-6 days

0

13

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 114-3534

ROLLER

$6.49

$

Usually ships in 3-6 days

0

17

Toro 114-1912-03

BRACKET-SHIFTER

$

$

Not available

18

Toro 106-7297

CLAMP-CABLE
(Superseded to 136-7191)

$4.99

$

Usually ships in 3-6 days

0

19

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

22

Toro 106-2584

Spring-Torsion

$15.99

$

Usually ships in 3-6 days

0

23

Toro 114-1978

PIN-HINGE

$

$

Not available

24

Toro 114-5347

ARM-DUAL, SHIFTER

$38.99

$

Usually ships in 3-6 days

0

25

Toro 2411-38

JOINT-BALL

$22.99

$

Usually ships in 3-6 days

0

26

Toro 3296-27

NUT-LOCK, NI

$1.49

$

In Stock, only 3 left!

0

27

Toro 114-0433

CLIP-SPRING

$27.99

$

In Stock, only 1 left!

0

28

Toro 117-0474

CABLE-CONTROL, TRACTION

$197.99

$

Usually ships in 3-6 days

0

29

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 14

0

30

Toro 32105-13

SCREW-HWH

$1.99

$

In Stock, Qty 5

0

31

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 8

0

32

Toro 114-3576

BUSHING-GUIDE, DRILL

$54.99

$

Usually ships in 3-6 days

0
