74569 - Toro 52" GrandStand Stand-On Mower (SN: 290000001 - 290000206) (2009) LOWER CONTROL ASSEMBLY Parts Diagram

52" GrandStand Stand-On Mower

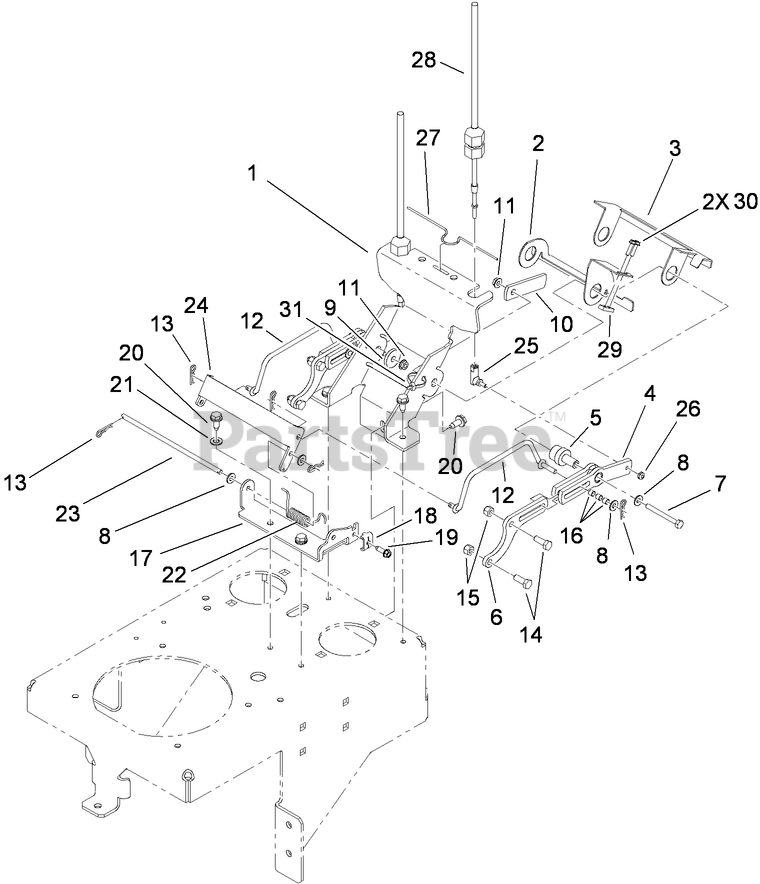

LOWER CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 114-5304-01

MOUNT-LINKAGE, DRIVE

$

$

Not available

2

Toro 114-1993

LEVER-SWITCH

$

$

Not available

3

Toro 114-1999

LEVER-SWITCH

$54.99

$

Usually ships in 3-6 days

0

4

Toro 114-1956

CONTROL FORK ASM

$254.99

$

Usually ships in 3-6 days

0

5

Toro 114-1955

HUB-SHOULDER

$37.99

$

In Stock, Qty 10

0

6

Toro 114-5291

ARM-CONTROL, PUMP

$

$

Not available

7

Toro 321-15

SCREW-HH

$1.49

$

In Stock, Qty 11

0

8

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

9

Toro 65-8270

WASHER

$1.99

$

Usually ships in 3-6 days

0

10

Toro 114-5155-03

ARM-SWITCH, STOP

$

$

Not available

11

Toro 32128-14

NUT-HF

$0.99

$

Usually ships in 3-6 days

0

12

Toro 114-5295

ROD-LINK, SHIFTER

$

$

Not available

13

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

14

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 114-3534

ROLLER

$

$

Not available

17

Toro 114-1912-03

BRACKET-SHIFTER

$

$

Not available

18

Toro 106-7297

CLAMP-CABLE
(Superseded to 136-7191)

$5.49

$

Usually ships in 3-6 days

0

19

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 15

0

21

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

22

Toro 106-2584

Spring-Torsion

$14.99

$

Usually ships in 3-6 days

0

23

Toro 114-1978

PIN-HINGE

$

$

Not available

24

Toro 114-5347

ARM-DUAL, SHIFTER

$

$

Not available

25

Toro 2411-38

JOINT-BALL

$25.99

$

In Stock, Qty 10

0

26

Toro 3296-27

NUT-LOCK, NI

$1.99

$

In Stock, Qty 8

0

27

Toro 114-0433

CLIP-SPRING

$28.99

$

In Stock, only 1 left!

0

28

Toro 117-0474

CABLE-CONTROL, TRACTION

$231.99

$

Usually ships in 3-6 days

0

29

Toro 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 12

0

30

Toro 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

31

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0
