74570 (170-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) CONTROL SHAFT ASSEMBLY Parts Diagram

Lawn Tractor

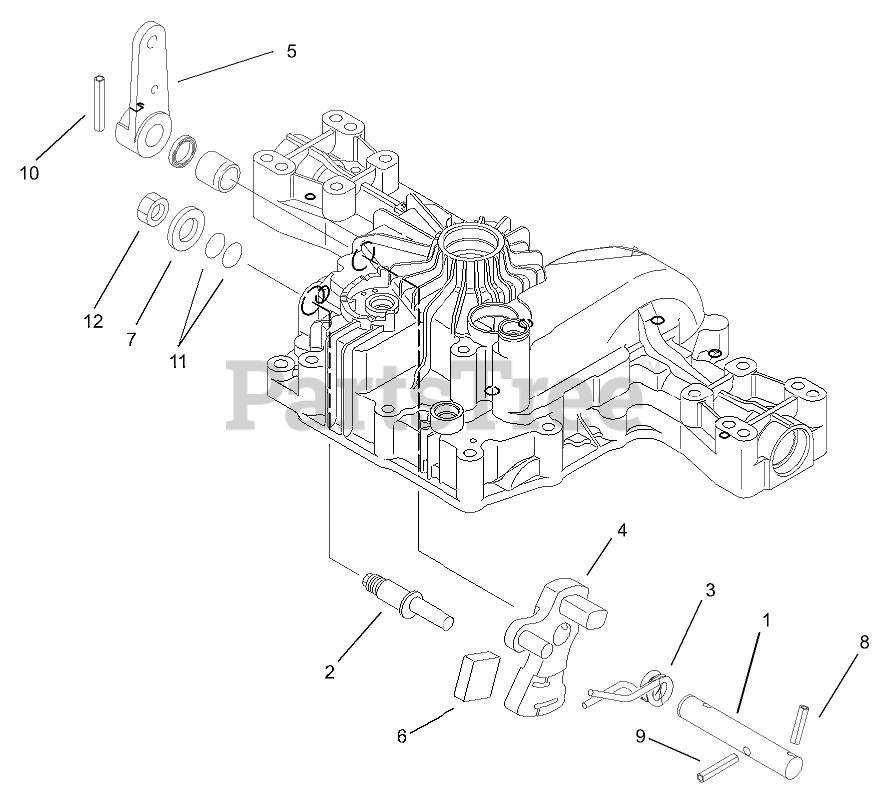

CONTROL SHAFT ASSEMBLY Parts Diagram

  • Title

1

Toro 104-3291

Shaft-Control

$

$

Not available

2

Toro 104-3292

Fulcrum-Eccentricity

$143.99

$

Usually ships in 3-6 days

0

3

Toro 104-3293

Spring-Torsion

$

$

Not available

4

Toro 104-3294

Arm-Control

$

$

Not available

5

Toro 104-3295

Lever-Control
(Superseded to 104-3342)

$

$

Not available

6

Toro 104-3296

Plate-Jerky

$32.99

$

Usually ships in 3-6 days

0

7

Toro 93-0417

WASHER

$4.49

$

Usually ships in 3-6 days

0

8

Toro 92-0769

PIN-ROLL

$1.49

$

Usually ships in 3-6 days

0

9

Toro 104-3297

Pin

$9.49

$

Usually ships in 3-6 days

0

10

Toro 93-0411

PIN-ROLL

$8.99

$

Usually ships in 3-6 days

0

11

Toro 104-3298

PACKING
(Superseded to 93-0475)

$8.99

$

Usually ships in 3-6 days

0

12

Toro 93-0420

NUT

$6.49

$

Usually ships in 3-6 days

0
