74570 (170-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 311777-0151-E1 Parts Diagram

Lawn Tractor

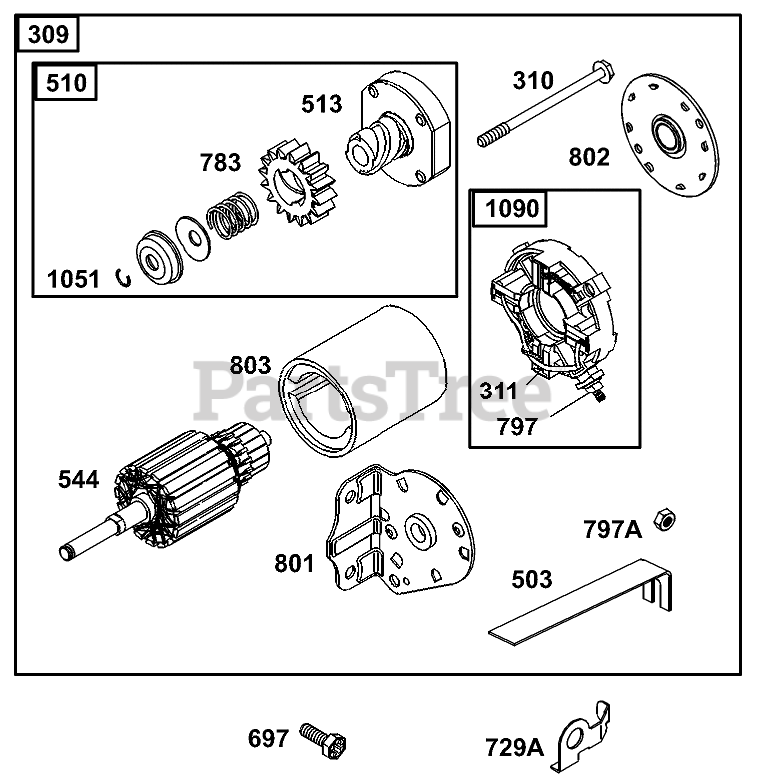

ENGINE BRIGGS & STRATTON MODEL 311777-0151-E1 Parts Diagram

  • Title

309

Briggs & Stratton 693551

Motor-Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 11

0

310

Briggs & Stratton 690323

Bolt

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

503

Briggs & Stratton 691532

Strap-Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 693699

Drive-Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 11

0

513

Briggs & Stratton 398003

Clutch ASM
(Superseded to 692024)

$21.99

$

Usually ships in 2-12 days

0

544

Briggs & Stratton 497603

Armature-Starter
(Superseded to 692034)

$82.99

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

$3.99

$

In Stock, Qty 6

0

729A

Briggs & Stratton 691224

Clip-Wire

$4.99

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

Usually ships in 2-12 days

0

797

Briggs & Stratton 693167

Nut

$4.49

$

Usually ships in 2-12 days

0

797A

Briggs & Stratton 92278

Nut-Hex
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691429

Cap-Drive
(Superseded to 691283)

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 497607

Cap-End
(Superseded to 691286)

$26.99

$

Usually ships in 2-12 days

0

803

Toro 691427

Starter Housing

$

$

Currently unavailable

1051

Briggs & Stratton 263080

Retainer
(Superseded to 691265)

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 691293

Retainer-Brush

$29.99

$

In Stock, Qty 6

0
