74570 (170-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 311777-0151-E1 Parts Diagram

Lawn Tractor

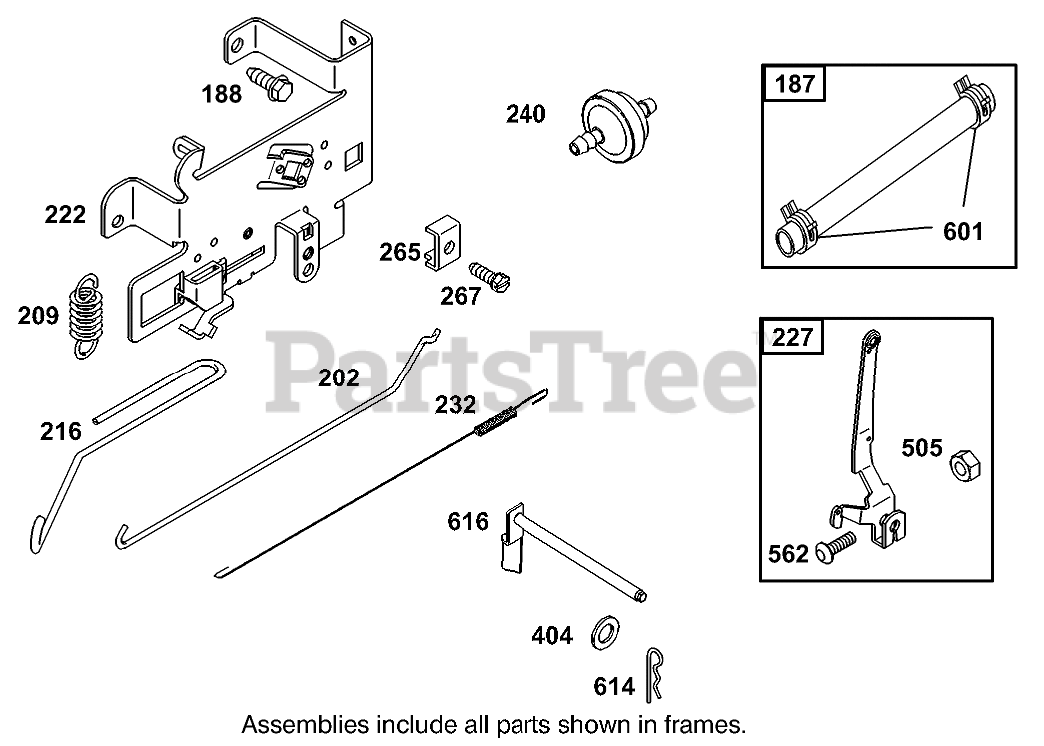

ENGINE BRIGGS & STRATTON MODEL 311777-0151-E1 Parts Diagram

  • Title

187

Briggs & Stratton 492790

Hose-Fuel
(Superseded to 791766)

$7.99

$

In Stock, Qty 20+

0

188

Briggs & Stratton 94929

Screw
(Superseded to 691693)

$3.99

$

In Stock, only 3 left!

0

202

Briggs & Stratton 262767

Choke Link
(Superseded to 691841)

$9.49

$

In Stock, Qty 8

0

209

Briggs & Stratton 692208

Spring-Governor
(Superseded to 796260)

$4.99

$

In Stock, Qty 11

0

216

Briggs & Stratton 691840

Link-Choke

$8.99

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 694042

Bracket-Control
(Superseded to 597209)

$38.99

$

In Stock, only 4 left!

0

227

Briggs & Stratton 493935

Lever-Governor
(Superseded to 691374)

$26.99

$

In Stock, Qty 6

0

232

Briggs & Stratton 262785

Spring-Link
(Superseded to 691842)

$11.99

$

In Stock, Qty 6

0

240

Briggs & Stratton 394358

Filter-Fuel
(Superseded to 394358S)

$5.99

$

In Stock, Qty 20+

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 94906

Screw-Sem
(Superseded to 690804)

$2.99

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 94927

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

505

Briggs & Stratton 231978

Nut-Hex
(Superseded to 691251)

$3.49

$

In Stock, Qty 11

0

562

Briggs & Stratton 94907

Bolt-Carriage
(Superseded to 691119)

$4.49

$

In Stock, Qty 19

0

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

$3.49

$

In Stock, Qty 20+

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

616

Briggs & Stratton 495157

Crank-Governor
(Superseded to 692012)

$13.99

$

In Stock, only 4 left!

0
