74570 (170-DH) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) Control Shaft Assembly Parts Diagram

Lawn Tractor

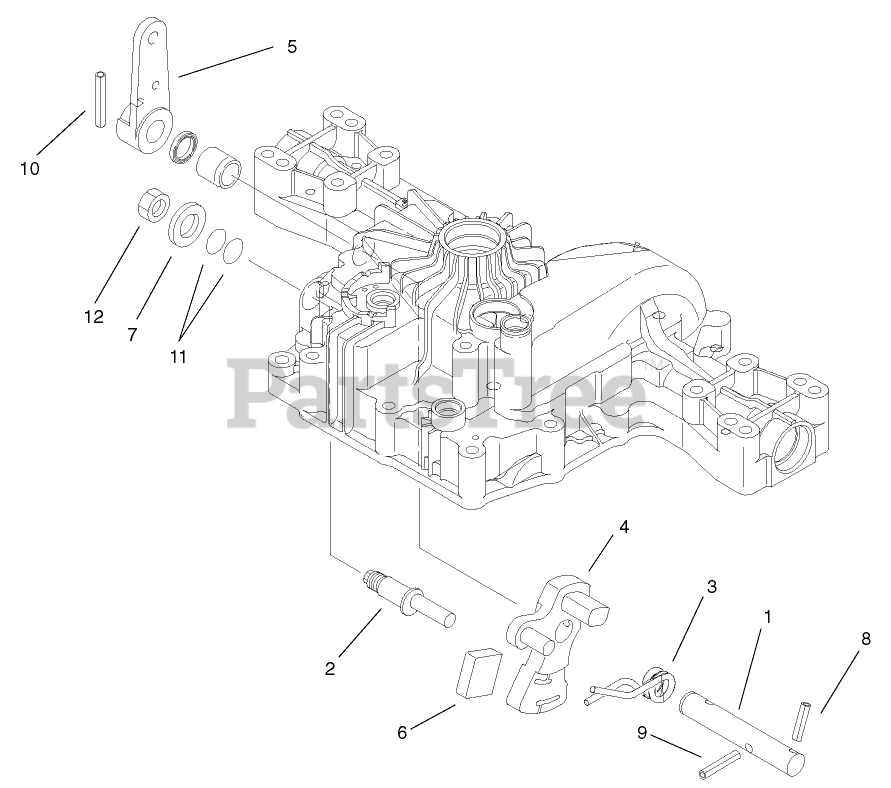

Control Shaft Assembly Parts Diagram

  • Title

1

Toro 104-3291

SHAFT-CONTROL

$

$

Not available

2

Toro 104-3292

FULCRUM-ECCENTRICITY

$161.99

$

Usually ships in 3-6 days

0

3

Toro 104-3293

SPRING-TORSION

$

$

Not available

4

Toro 104-3294

ARM-CONTROL

$

$

Not available

5

Toro 104-3295

See Supercession: 104-3342
(Superseded to 104-3342)

$

$

Not available

6

Toro 104-3296

PLATE-JERKY

$36.99

$

Usually ships in 3-6 days

0

7

Toro 93-0417

WASHER

$4.49

$

Usually ships in 3-6 days

0

8

Toro 92-0769

PIN-ROLL

$1.99

$

Usually ships in 3-6 days

0

9

Toro 104-3297

PIN

$9.49

$

Usually ships in 3-6 days

0

10

Toro 93-0411

PIN-ROLL

$9.49

$

Usually ships in 3-6 days

0

11

Toro 104-3298

See Supercession: 93-0475
(Superseded to 93-0475)

$10.99

$

Usually ships in 3-6 days

0

12

Toro 93-0420

NUT

$6.99

$

Usually ships in 3-6 days

0
