74570 (170-DH) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) Crankcase Assembly Engine Briggs and Stratton Model 311777-0151-E1 Parts Diagram

Lawn Tractor

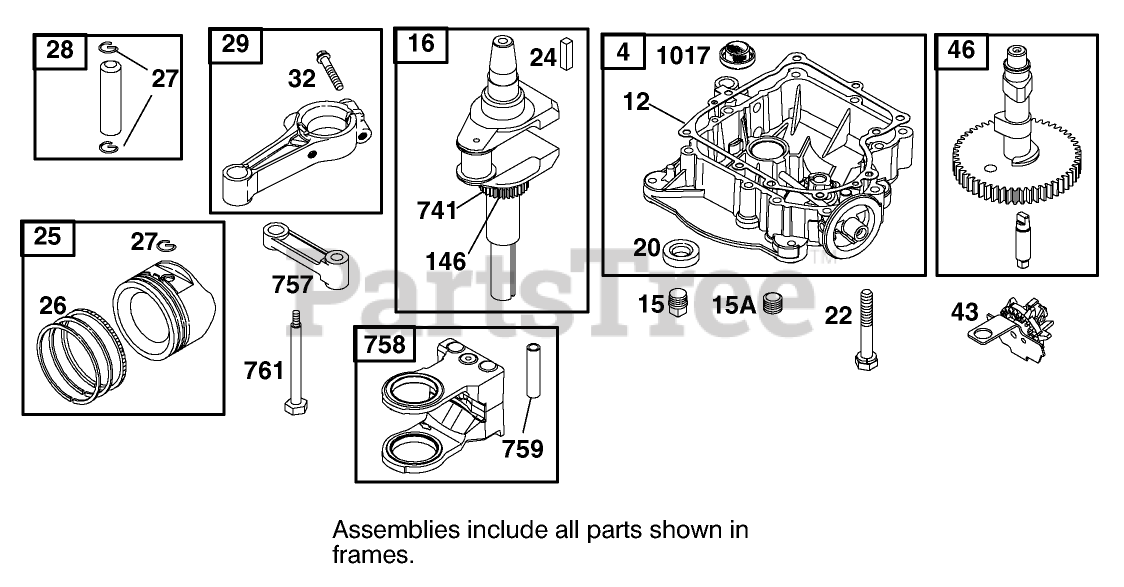

Crankcase Assembly Engine Briggs and Stratton Model 311777-0151-E1 Parts Diagram

  • Title

4

Toro 693582

EngineSump

$

$

Currently unavailable

12

Toro 271916

Gasket-Crankcase (1/64")

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

Toro 271997

Gasket-Crankcase (.005")

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

Toro 271996

Gasket-Crankcase (.009")

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

15

Toro 94239

Plug-Pipe

$

$

Currently unavailable

15A

Toro 91488

Plug-Oil

$

$

Currently unavailable

16

Toro 690136

Crankshaft

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

22

Toro 692125

Screw

$

$

Currently unavailable

24

Toro 222698

Key

$

$

Currently unavailable

25

Toro 692271

Piston Assembly (Standard)

$

$

Currently unavailable

Toro 692272

Piston Assy. (.010" O.S.)

$

$

Currently unavailable

Toro 692273

Piston Assy. (.O2O" O.S.)

$

$

Currently unavailable

Toro 692274

Piston Assy. (.030" O.S.)

$

$

Currently unavailable

26

Toro 690162

Ring Set (Std)

$

$

Currently unavailable

Toro 690164

Ring Set (.010" O.S.)

$

$

Currently unavailable

Toro 690166

Ring Set (.020" O.S.)

$

$

Currently unavailable

Toro 690168

Ring Set (.030" O.S.)

$

$

Currently unavailable

Toro 690168

Ring Set (.030" O.S.)

$

$

Currently unavailable

27

Toro 691299

Lock-Piston Pin

$

$

Currently unavailable

28

Toro 498319

Pin-Piston (Std.)

$

$

Currently unavailable

Toro 498320

Pin-Piston (.005 O.S.)

$

$

Currently unavailable

29

Toro 692419

Connecting Rod (Std)

$

$

Currently unavailable

Toro 499940

Connecting Rod (.020" Undersize)

$

$

Currently unavailable

32

Toro 692852

Screw

$

$

Currently unavailable

43

Toro 490815

Gear-Governor

$

$

Currently unavailable

46

Toro 693930

Cam Shaft

$

$

Currently unavailable

146

Toro 94196

Key-Timing

$

$

Currently unavailable

741

Toro 691284

Gear-Timing

$

$

Currently unavailable

757

Toro 213998

Link-Counteweight

$

$

Currently unavailable

758

Toro 692423

Counterweight

$

$

Currently unavailable

759

Toro 230787

Pin-Counterweight

$

$

Currently unavailable

761

Toro 691096

Screw (Counterweight)

$

$

Currently unavailable

1017

Toro 690770

Screen-Pump, Oil

$

$

Currently unavailable
