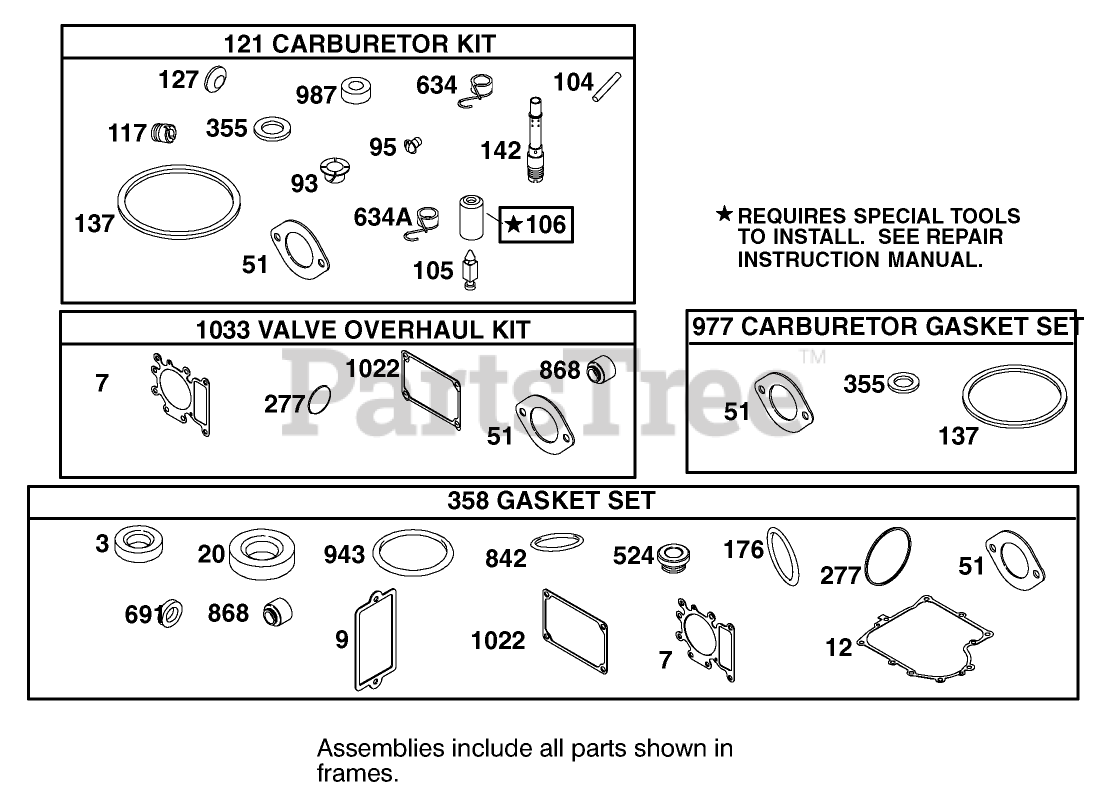

74570 (170-DH) - Toro Lawn Tractor (SN: 220000001 - 220999999) (2002) Carburetor Overhaul Kit Assembly Briggs and Stratton 311777-0151-E1 Parts Diagram

Lawn Tractor

Carburetor Overhaul Kit Assembly Briggs and Stratton 311777-0151-E1 Parts Diagram

  • Title

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

7

Toro 692410

Gasket-Cylinder Head

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

7

Toro 692410

Gasket-Cylinder Head

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

9

Toro 27803

Gasket-Breather

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

12

Toro 271916

Gasket-Crankcase (1/64")

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

Toro 271997

Gasket-Crankcase (.005")

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

Toro 271996

Gasket-Crankcase (.009")

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

20

Toro 291675

Seal-Oil

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

51

Toro 273650

Gasket-Intake

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

93

Toro 281346

Bushing-Throttle

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

95

Toro 94098

Valve-Choke

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

104

Toro 231789

Pin-Hinge, Float

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

105

Toro 231855

Valve-Needle, Float

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

106

Toro 231854

Seat-Inlet

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

117

Toro 232118

Jet-Main

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

121

Toro 690191

Carburetor Kit

$

$

Currently unavailable

127

Welch Plug Sold In Kit Only

Note: Included in Carburetor Kit-Ref. 121

$

$

Not available

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

137

Toro 281165

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

142

Toro 232117

Carburetor Nozzle

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

176

Toro 281106

O-Ring

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

277

Toro 692138

Seal-O Ring

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

277

Toro 692138

Seal-O Ring

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

355

Toro 281164

Washer

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

355

Toro 281164

Washer

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

358

Toro 690189

Gasket Set

$

$

Currently unavailable

524

Toro 281370

Seal

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

634

Toro 494453

Seal-Choke Shaft

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

634A

Toro 494455

Seal-Choke Shaft

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

691

Toro 491323

Seal-Oil

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

842

Toro 270920

O-Ring

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

868

Toro 499236

Seal-Valve

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

868

Toro 499236

Seal-Valve

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

943

Toro 280801

O-Ring Seal

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

977

Toro 690192

Carburetor Gasket Set

$

$

Currently unavailable

987

Toro 281166

Seal-Shaft

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

1022

Toro 272475

Gasket-Cover, Rocker

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

1033

Toro 690190

Set-Valve Gasket

$

$

Currently unavailable
