74570 (170-DH) - Toro Lawn Tractor (SN: 220000001 - 220999999) (2002) STEERING ASSEMBLY Parts Diagram

Lawn Tractor

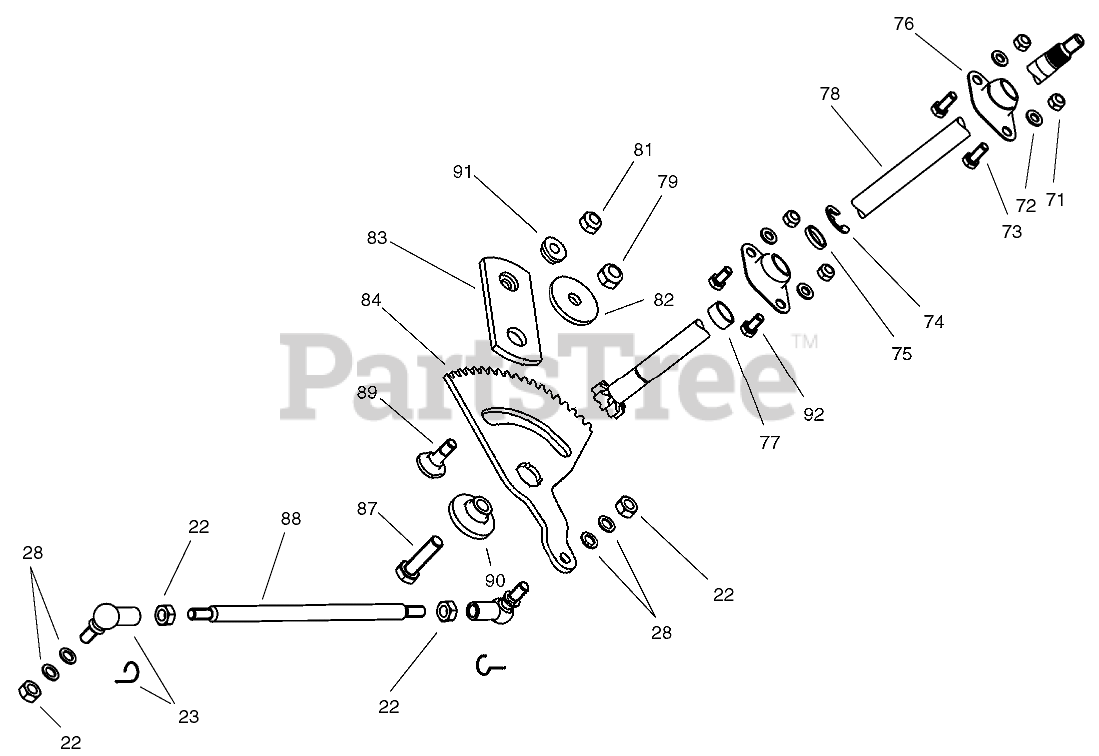

STEERING ASSEMBLY Parts Diagram

  • Title

22

Toro 33015-00

NUT-HEX
(Superseded to 48-7960)

$1.99

$

Usually ships in 3-6 days

0

23

Toro 104-2863

Hsg-Ball Angle
(Superseded to 104-2876)

$

$

Not available

28

Toro 106-5757

Washer

$

$

Currently unavailable

71

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

72

Toro 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

73

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

74

Toro 104-2891

CLIP-SPRING

$

$

Currently unavailable

75

Toro 104-2877

SPACER-UPPER

$

$

Currently unavailable

76

Toro 104-2878

BEARING-SPHERICAL

$

$

Currently unavailable

77

Toro 104-2879

SPACER-LOWER

$

$

Currently unavailable

78

Toro 106-5773

Shaft-Steering

$

$

Currently unavailable

79

Toro 33026-00

NUT-LOCK

$1.49

$

Usually ships in 3-6 days

0

81

Toro 33025-00

NUT-LOCK, NI

$1.49

$

Usually ships in 3-6 days

0

82

Toro 33094-00

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

0

83

Toro 105-1238

Plate-Steering

$

$

Currently unavailable

84

Toro 104-2883

GEAR-SECTOR
(Superseded to 120-8749)

$108.99

$

Usually ships in 3-6 days

0

87

Toro 104-2910

SCREW-HH

$

$

Currently unavailable

88

Toro 104-2886

LINK-DRAG

$

$

Currently unavailable

89

Toro 105-1239

Bolt-Shoulder

$

$

Currently unavailable

90

Toro 105-1240

Pivot-Steering

$

$

Currently unavailable

91

Toro 105-1241

Bushing

$

$

Currently unavailable

92

Toro 33114-016

SCREW-HH

$0.99

$

In Stock, Qty 8

0
