74570 (170-DH) - Toro Lawn Tractor (SN: 230000001 - 230999999) (2003) STARTER ASSEMBLY BRIGGS AND STRATTON 31G777-0121-E1 Parts Diagram

Lawn Tractor

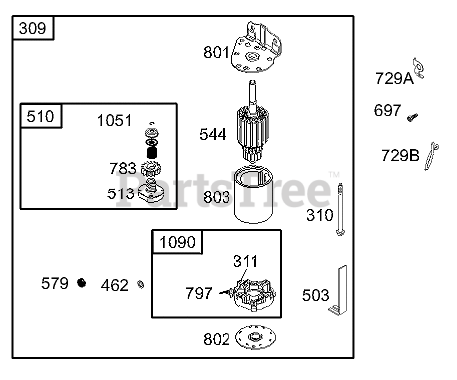

STARTER ASSEMBLY BRIGGS AND STRATTON 31G777-0121-E1 Parts Diagram

  • Title

309

Briggs & Stratton 693551

Motor-Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 7

0

310

Briggs & Stratton 690323

Bolt

$4.49

$

In Stock, Qty 7

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

462

Briggs & Stratton 691261

Washer

$3.99

$

In Stock, only 4 left!

0

503

Briggs & Stratton 691532

Strap-Starter

$6.49

$

Usually ships in 2-12 days

0

510

Briggs & Stratton 693699

Drive-Starter
(Superseded to 593934)

$131.99

$

In Stock, Qty 7

0

513

Briggs & Stratton 692024

Clutch-Drive

$21.99

$

In Stock, only 1 left!

0

544

Briggs & Stratton 692034

Armature-Starter

$82.99

$

Usually ships in 2-12 days

0

579

Briggs & Stratton 691029

Nut

$5.49

$

Usually ships in 2-12 days

0

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

$3.99

$

In Stock, only 2 left!

0

729A

Briggs & Stratton 691224

Clip-Wire

$4.99

$

Usually ships in 2-12 days

0

729B

Briggs & Stratton 694123

Clip?Wire

$4.49

$

Usually ships in 2-12 days

0

783

Briggs & Stratton 693713

Gear-Pinion
(Superseded to 593935)

$26.99

$

In Stock, only 1 left!

0

797

Briggs & Stratton 693167

Nut

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

Cap-Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 691286

Cap-End

$26.99

$

Usually ships in 2-12 days

0

803

Briggs & Stratton 693757

Housing-Starter

$25.99

$

Usually ships in 2-12 days

0

1051

Briggs & Stratton 691265

Ring-Retaining

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 691293

Retainer-Brush

$29.99

$

In Stock, Qty 6

0
