74570 (DH 210) - Toro Lawn Tractor (SN: 260000001 - 260999999) (2006) AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 311777-0151-E1 Parts Diagram

Lawn Tractor

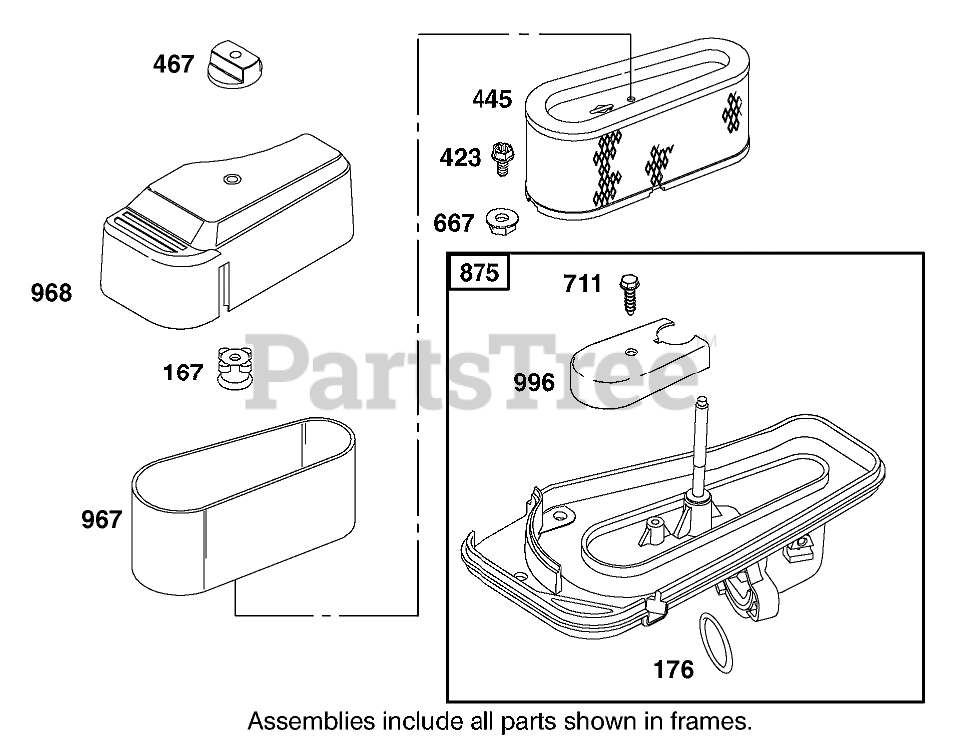

AIR CLEANER ASSEMBLY BRIGGS AND STRATTON 311777-0151-E1 Parts Diagram

  • Title

167

Briggs & Stratton 281051

Nut
(Superseded to 692297)

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

In Stock, only 2 left!

0

176

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 20+

0

176

Briggs & Stratton 281106

O-Ring
(Superseded to 691917)

Note: Included in Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 20+

0

423

Briggs & Stratton 692129

Screw-Torx Hex.

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

467

Briggs & Stratton 493903

Knob
(Superseded to 691668)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 20+

0

445

Briggs & Stratton 496894

Filter-Air
(Superseded to 496894S)

Note: Obtain parts from www.briggsandstratton.com

$19.99

$

In Stock, Qty 10

0

667

Briggs & Stratton 94010

Nut
(Superseded to 690958)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 8

0

711

Briggs & Stratton 94704

Screw
(Superseded to 690703)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

875

Briggs & Stratton 693686

Air Cleaner Base
(Superseded to 696129)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

967

Briggs & Stratton 272403

Filter-Air
(Superseded to 272403S)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 12

0

968

Briggs & Stratton 692502

Air Cleaner Cover

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

996

Briggs & Stratton 690678

Carburetor Shield

Note: Obtain parts from www.briggsandstratton.com

$11.99

$

Usually ships in 2-12 days

0
