74571 (150-DH) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) CYLINDER, CRANKSHAFT AND PISTON ASSEMBLIES BRIGGS AND STRATTON 282H79-23502 Parts Diagram

Lawn Tractor

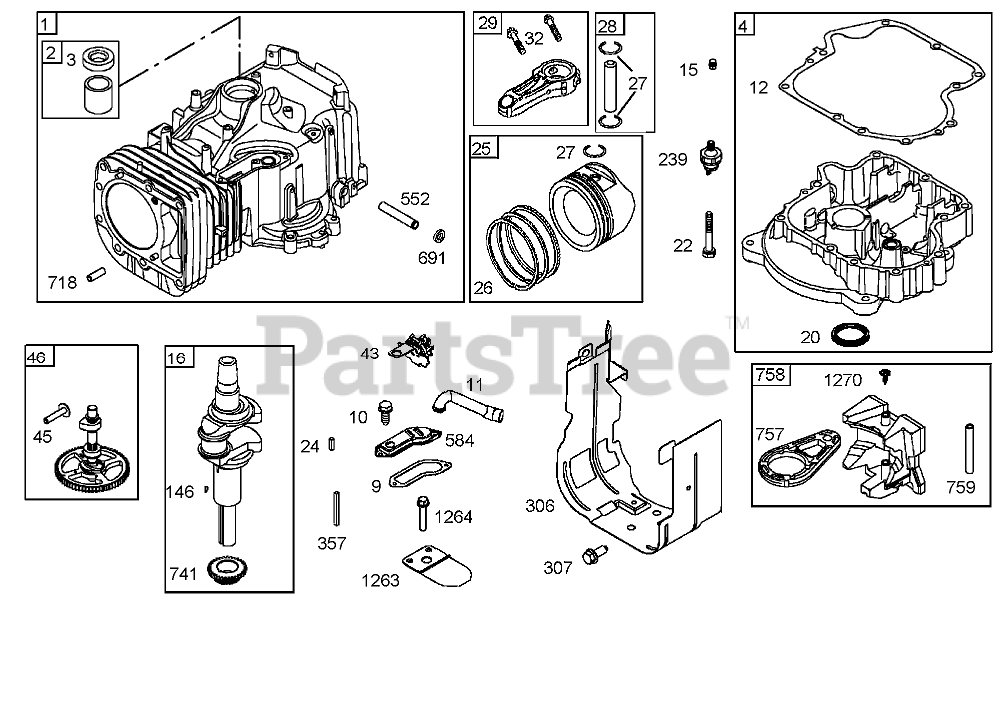

CYLINDER, CRANKSHAFT AND PISTON ASSEMBLIES BRIGGS AND STRATTON 282H79-23502 Parts Diagram

  • Title

1

Briggs & Stratton 697132

Cylinder ASM
(Superseded to 794087)

Note: Obtain parts from www.briggsandstratton.com

$425.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399265

Bushing and Seal Kit
(Superseded to 797673)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 697106

Sump-Engine

Note: Obtain parts from www.briggsandstratton.com

$308.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 697109

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 697109

Gasket-Breather

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 697157

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

11

Briggs & Stratton 697113

Tube-Breather
(Superseded to 794683)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 18

0

12

Briggs & Stratton 697110

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 17

0

16

Briggs & Stratton 697127

Crankshaft
(Superseded to 595339)

Note: Obtain parts from www.briggsandstratton.com

$372.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Included in Engine Gasket Set-Ref. 358.

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 698371

Piston ASM (Standard)
(Superseded to 792307)

Note: Obtain parts from www.briggsandstratton.com

$172.99

$

Usually ships in 2-12 days

0

25

Toro 698393

Piston ASM (.010 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

25

Briggs & Stratton 698394

Piston ASM (.020 Oversize)
(Superseded to 792728)

Note: Obtain parts from www.briggsandstratton.com

$278.99

$

Usually ships in 2-12 days

0

25

Toro 698395

Piston ASM (.030 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

26

Briggs & Stratton 698375

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$57.99

$

Usually ships in 2-12 days

0

26

Toro 698396

Ring Set (.010 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

26

Briggs & Stratton 698397

Ring Set (.020 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$291.99

$

Usually ships in 2-12 days

0

26

Toro 698398

Ring Set (.030 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

27

Briggs & Stratton 698469

Lock-Pin, Piston

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 697099

Pin-Piston (Std)

Note: Obtain parts from www.briggsandstratton.com

$13.99

$

In Stock, only 1 left!

0

29

Briggs & Stratton 697126

Rod?Connecting (Standard)
(Superseded to 794122)

Note: Obtain parts from www.briggsandstratton.com

$78.99

$

In Stock, only 2 left!

0

32

Briggs & Stratton 692852

Screw
(Superseded to 791118)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 9

0

43

Briggs & Stratton 691968

Slinger-Governor, Oil

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 9

0

45

Briggs & Stratton 690564

Tappet-Valve

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 698492

Camshaft
(Superseded to 793880)

Note: Obtain parts from www.briggsandstratton.com

$96.99

$

In Stock, Qty 20+

0

146

Briggs & Stratton 691639

Key-Timing

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 3 left!

0

239

Briggs & Stratton 491657

Switch?Oil Pressure
(Superseded to 491657S)

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

In Stock, only 1 left!

0

306

Briggs & Stratton 697107

Shield-Cylinder

Note: Obtain parts from www.briggsandstratton.com

$55.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 691003

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 2 left!

0

357

Briggs & Stratton 691483

Key?Pulley, Drive

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 3 left!

0

552

Briggs & Stratton 697144

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 2-12 days

0

584

Briggs & Stratton 697112

Cover-Passage, Breather
(Superseded to 794682)

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

In Stock, only 1 left!

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 11

0

691

Briggs & Stratton 692407

Seal-Shaft, Governor

Note: Included in Engine Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 11

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

741

Briggs & Stratton 697128

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, Qty 5

0

757

Briggs & Stratton 697607

Link-Counterweight
(Superseded to 793242)

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

In Stock, only 2 left!

0

758

Briggs & Stratton 697134

Counterweight
(Superseded to 793763)

Note: Obtain parts from www.briggsandstratton.com

$128.99

$

Usually ships in 2-12 days

0

759

Briggs & Stratton 697392

Pin-Counterweight

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

1263

Briggs & Stratton 697124

Reed-Breather

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

Usually ships in 2-12 days

0

1264

Briggs & Stratton 697104

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

Usually ships in 2-12 days

0

1270

Briggs & Stratton 697156

Plug-Counterweight, AVS
(Superseded to 793243)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 10

0
