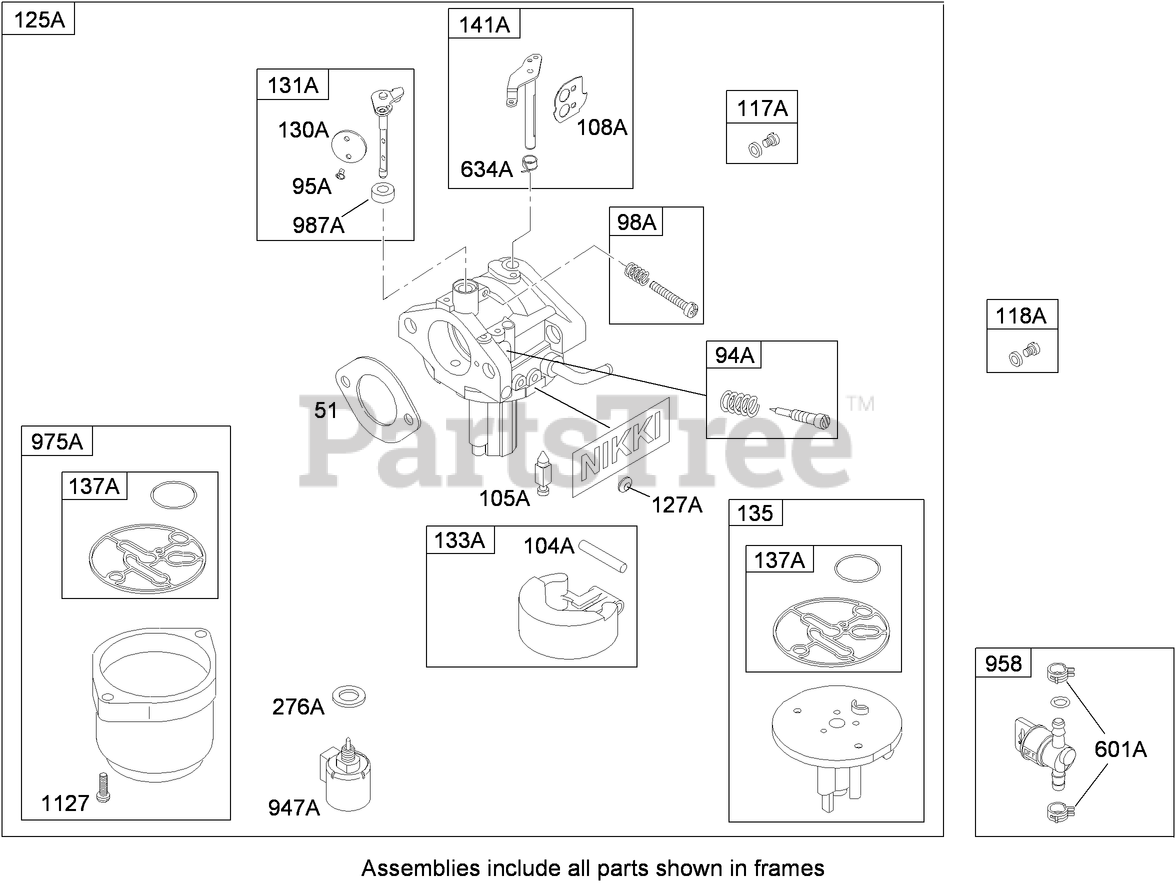

74573 (DH 200) - Toro Lawn Tractor (SN: 290000481 - 290999999) (2009) Carburetor Assembly (Nikki) Briggs and Stratton Model 31A607-0117-E1 Parts Diagram

Lawn Tractor

Carburetor Assembly (Nikki) Briggs and Stratton Model 31A607-0117-E1 Parts Diagram

  • Title

51

Toro 692137

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

51

Toro 692137

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

51

Toro 692137

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

51

Toro 692137

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

94A

Toro 695425

Idle Mixture Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

95A

Toro 690718

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

95A

Toro 690718

Screw

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

98A

Toro 695408

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

104A

Toro 694918

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

104A

Toro 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

105A

Toro 696136

Valve-Float, Needle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

105A

Toro 696136

Valve-Float, Needle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

108A

Toro 695419

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

117A

Toro 699457

Jet-Main (Std)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

117A

Toro 699457

Jet-Main (Std)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

118A

Toro 699458

Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

125A

Loose Parts Package

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

125A

Loose Parts Package

Note: Not serviced separately

$

$

Not available

127A

Toro 690727

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

127A

Toro 690727

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

130A

Toro 699500

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

131A

Toro 699501

Throttle Shaft Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

133A

Toro 694914

Carburetor Float ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

135

Toro 698780

Fuel Transfer Tube Asm

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137A

Toro 698781

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137A

Toro 698781

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

141A

Toro 695420

Choke Shaft Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

276A

Toro 695410

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

601A

Toro 691038

Clamp-Hose

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

634A

Toro 698779

Spring and Seal Asm

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

634A

Toro 698779

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

947A

Toro 699915

Solenoid, Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

958

Toro 698183

Valve?Shut Off, Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

975A

Toro 699502

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

987A

Toro 698777

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

987A

Toro 698777

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

1127

Toro 695407

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
