74573 (DH 200) - Toro Lawn Tractor (SN: 290000481 - 290999999) (2009) Carburetor Overhaul Kit (Nikki) Briggs and Stratton Model 31A607-0117-E1 Parts Diagram

Lawn Tractor

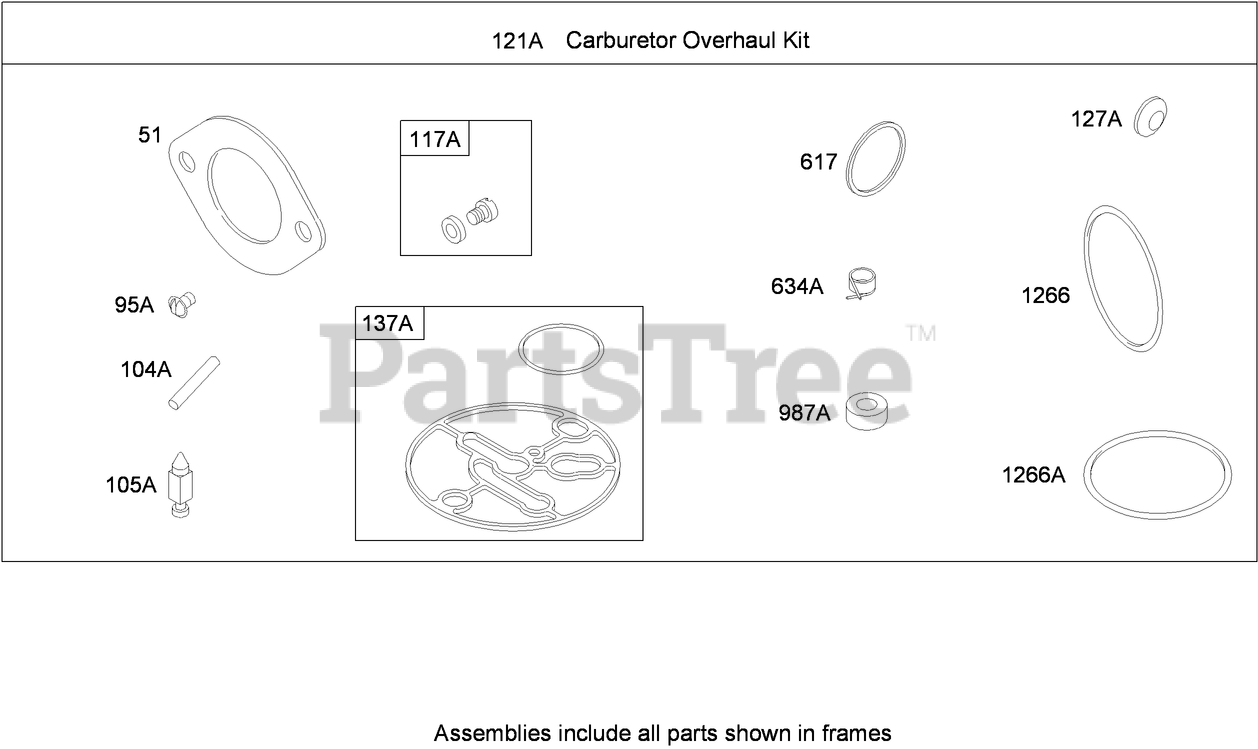

Carburetor Overhaul Kit (Nikki) Briggs and Stratton Model 31A607-0117-E1 Parts Diagram

  • Title

51

Toro 692137

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

51

Toro 692137

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

51

Toro 692137

Gasket-Intake

Note: For Service of Nikki Carburetors

$

$

Currently unavailable

51

Toro 692137

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51

Toro 692137

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

95A

Toro 690718

Screw

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 3-6 days

0

95A

Toro 690718

Screw

Note: For Service of Nikki Carburetors

$7.99

$

Usually ships in 3-6 days

0

95A

Toro 690718

Screw

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$7.99

$

Usually ships in 3-6 days

0

104A

Toro 694914

Carburetor Float ASM

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$41.99

$

Usually ships in 3-6 days

0

104A

Toro 694914

Carburetor Float ASM

Note: For Service of Nikki Carburetors

$41.99

$

Usually ships in 3-6 days

0

104A

Toro 694914

Carburetor Float ASM

Note: Obtain parts from www.briggsandstratton.com

$41.99

$

Usually ships in 3-6 days

0

105A

Toro 696136

Valve-Float, Needle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

105A

Toro 696136

Valve-Float, Needle

Note: For Service of Nikki Carburetors

$

$

Currently unavailable

105A

Toro 696136

Valve-Float, Needle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

117A

Toro 699457

Jet-Main (Std)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

117A

Toro 699457

Jet-Main (Std)

Note: For Service of Nikki Carburetors

$

$

Currently unavailable

117A

Toro 699457

Jet-Main (Std)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

121A

Toro 699521

Carburetor Overhaul Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

121A

Toro 699521

Carburetor Overhaul Kit

Note: For Service of Nikki Carburetors

$

$

Currently unavailable

127A

Toro 690727

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

127A

Toro 690727

Plug-Welch

Note: For Service of Nikki Carburetors

$

$

Currently unavailable

127A

Toro 690727

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137A

Toro 698781

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$14.99

$

Usually ships in 3-6 days

0

137A

Toro 698781

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$14.99

$

Usually ships in 3-6 days

0

137A

Toro 698781

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 3-6 days

0

137A

Toro 698781

Gasket-Bowl, Float

Note: For Service of Nikki Carburetors

$14.99

$

Usually ships in 3-6 days

0

617

Toro 692138

Seal-O Ring

Note: For Service of Nikki Carburetors

$

$

Currently unavailable

617

Toro 692138

Seal-O Ring

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

617

Toro 692138

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

617

Toro 692138

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

634A

Toro 698779

Spring and Seal Asm

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

634A

Toro 698779

Spring and Seal Asm

Note: For Service of Nikki Carburetors

$

$

Currently unavailable

634A

Toro 698779

Spring and Seal Asm

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

987A

Toro 698777

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

987A

Toro 698777

Seal-Shaft, Throttle

Note: For Service of Nikki Carburetors

$

$

Currently unavailable

987A

Toro 698777

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1266

Toro 691917

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

1266

Toro 691917

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1266

Toro 691917

Seal-O Ring

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

1266

Toro 691917

Seal-O Ring

Note: For Service of Nikki Carburetors

$

$

Currently unavailable

1266A

Toro 697123

Seal-O Ring

Note: For Service of Nikki Carburetors

$

$

Currently unavailable

1266A

Toro 697123

Seal-O Ring

Note: Included in Carburetor Overhaul Kit (Ref. No. 121, 121A)

$

$

Currently unavailable

1266A

Toro 697123

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
