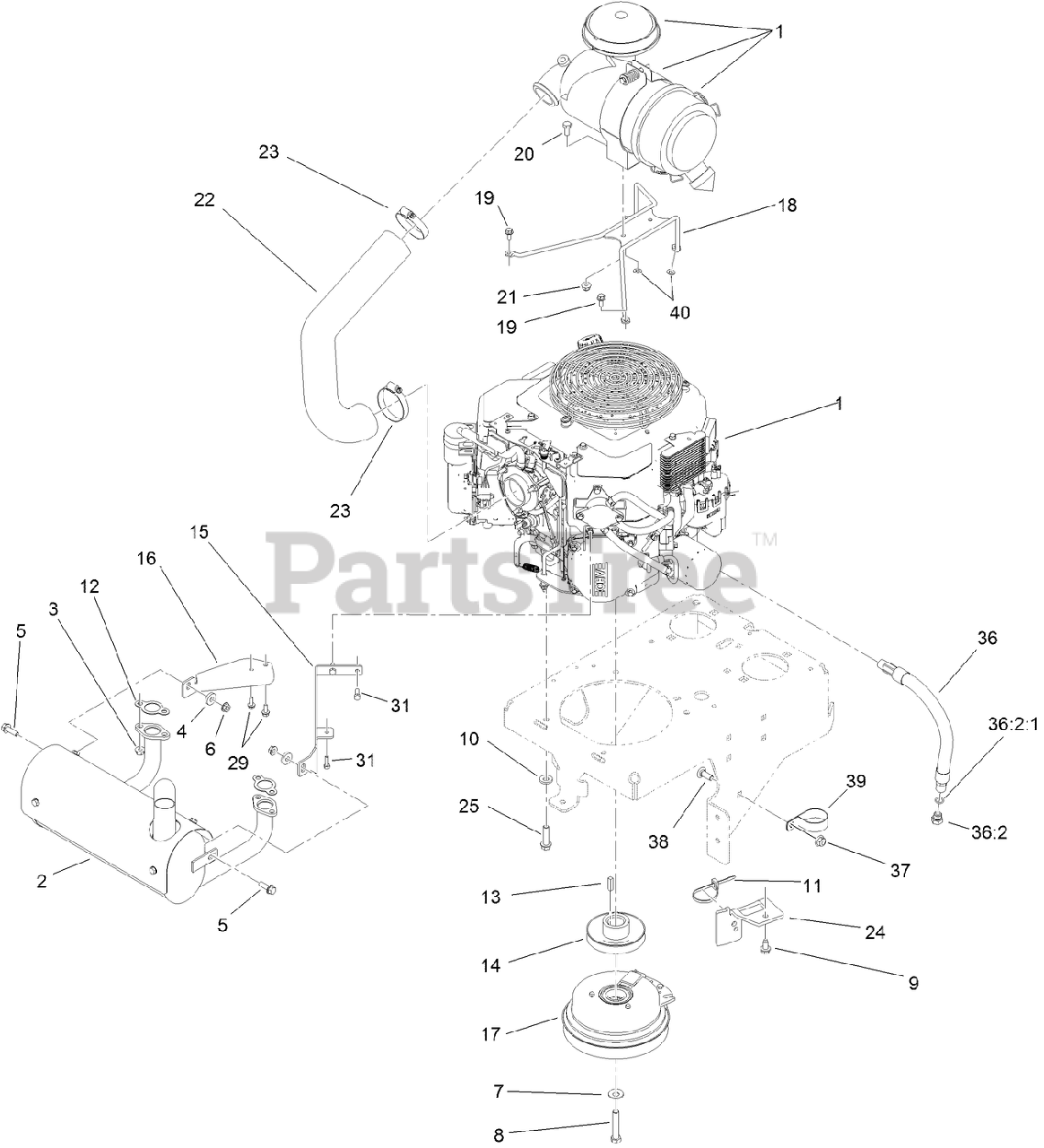

74583 - Toro 60" GrandStand Stand-On Mower (SN: 313001001 - 313999999) (2013) ENGINE ASSEMBLY Parts Diagram

60" GrandStand Stand-On Mower

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-KOHLER, PS-ECV740-3013

Note: Not serviced separately

$

$

Not available

1

ENGINE-KOHLER, PS-ECV740-3013

Note: Obtain parts from www.kohlerplus.com

$

$

Not available

2

Toro 116-4092

MUFFLER
(Superseded to 132-1549)

$391.99

$

Usually ships in 3-6 days

0

3

Toro 68-9400

NUT-FLANGE

$2.99

$

In Stock, only 2 left!

0

4

Toro 104-7658

SPACER

$1.49

$

In Stock, Qty 6

0

5

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 12

0

6

Toro 32128-25

NUT-HF

$3.49

$

In Stock, Qty 20+

0

7

Toro 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

8

Toro 3212-9

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on threads.

$12.99

$

In Stock, only 1 left!

0

9

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

10

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

11

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

12

Toro 110-6697

GASKET-EXHAUST

$

$

Not available

13

Toro 1-807259

KEY

$2.99

$

In Stock, Qty 14

0

14

Toro 116-3882

PULLEY

$118.99

$

Usually ships in 3-6 days

0

15

Toro 116-4039

BRACKET-MUFFLER, LH
(Superseded to 116-8751)

$35.99

$

Usually ships in 3-6 days

0

16

Toro 116-4038

BRACKET-MUFFLER, RH

$35.99

$

Usually ships in 3-6 days

0

17

Toro 116-4172

CLUTCH
(Superseded to 130-1848)

$682.99

$

Usually ships in 3-6 days

0

18

Toro 125-4660-03

MOUNT-CLEANER, AIR

$78.99

$

Usually ships in 3-6 days

0

19

Toro 33103-016

SCREW-HHF

$5.99

$

In Stock, Qty 10

0

20

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

21

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 116-4047

HOSE-INTAKE, AIR

$116.99

$

Usually ships in 3-6 days

0

23

Toro 2412-42

CLAMP-HOSE

$9.99

$

Usually ships in 3-6 days

0

24

Toro 116-3811-01

BRACKET-ANCHOR, CLUTCH

$37.99

$

Usually ships in 3-6 days

0

25

Toro 32144-102

SCREW-HWH

$3.49

$

In Stock, Qty 5

0

29

Toro 116-5722

SCREW-HWHTF

$1.49

$

Usually ships in 3-6 days

0

31

Toro 116-4295

SCREW-HH

$5.49

$

Usually ships in 3-6 days

0

36

Toro 116-5108

OIL DRAIN HOSE ASM

$37.99

$

In Stock, only 2 left!

0

36:2

Toro 353-508

PLUG-HH

$8.49

$

In Stock, only 1 left!

0

36:2:1

Toro 237-42

O-RING

$2.99

$

In Stock, Qty 20+

0

37

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

38

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

39

Toro 2412-147

CLAMP-R

$9.49

$

Usually ships in 3-6 days

0

40

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0
