74583 - Toro 60" GrandStand Stand-On Mower (SN: 313001001 - 313999999) (2013) FRAME ASSEMBLY Parts Diagram

60" GrandStand Stand-On Mower

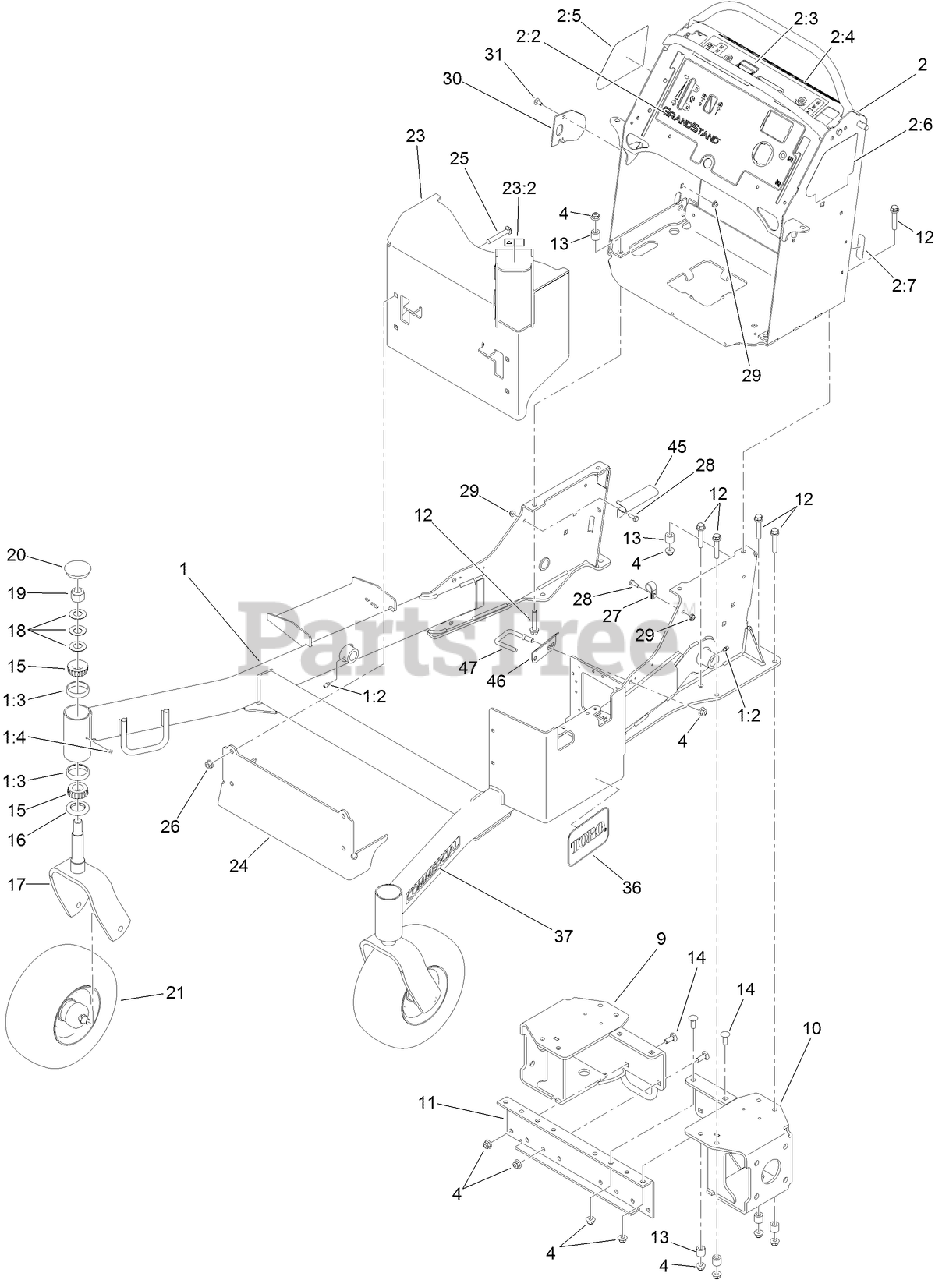

FRAME ASSEMBLY Parts Diagram

  • Title

1

Toro 121-5995

FRONT FRAME ASM

$1906.99

$

Usually ships in 3-6 days

0

1:2

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 16

0

1:3

Toro 1-543508

CUP-BEARING

$7.99

$

In Stock, Qty 20+

0

1:4

Toro 1-811010

PLUG

$5.49

$

In Stock, Qty 20+

0

2

Toro 121-5950

CONTROL TOWER ASM

$1186.99

$

Usually ships in 3-6 days

0

2:2

Toro 120-6497

DECAL-CONTROL PANEL, EFI

$44.99

$

Usually ships in 3-6 days

0

2:3

Toro 119-8727

DECAL-OPC

$21.99

$

Usually ships in 3-6 days

0

2:4

Toro 117-3626

DECAL-WARNING

$33.99

$

Usually ships in 3-6 days

0

2:5

Toro 117-0456

DECAL-HOC

$23.99

$

Usually ships in 3-6 days

0

2:6

Toro 121-5972

DECAL-SERVICE/SPARK ARREST

$18.99

$

Usually ships in 3-6 days

0

2:7

Toro 116-3267

DECAL-FUSE

$5.49

$

Usually ships in 3-6 days

0

4

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

9

Toro 119-7222-01

MOUNT-MOTOR, RH

$285.99

$

Usually ships in 3-6 days

0

10

Toro 119-7220-01

MOUNT-MOTOR, LH

$285.99

$

Usually ships in 3-6 days

0

11

Toro 119-7224-01

MOUNT-MOTOR, CENTER

$83.99

$

Usually ships in 3-6 days

0

12

Toro 108-3742

SCREW-HHF

$6.49

$

Usually ships in 3-6 days

0

13

Toro 121-1760

SPACER

$2.99

$

Usually ships in 3-6 days

0

14

Toro 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 8

0

15

Toro 1-543509

BEARING-ROLLER, TAPERED

$13.99

$

In Stock, Qty 20+

0

16

Toro 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

17

Toro 103-8618-01

FORK-CASTER

$128.99

$

In Stock, Qty 13

0

18

Toro 1-633508

WASHER-BELLVILLE

$3.49

$

In Stock, Qty 20+

0

19

Toro 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

20

Toro 103-4882

CAP-GREASE

$7.99

$

In Stock, Qty 20+

0

21

Toro 112-3810

WHEEL/TIRE AND BEARING ASM

$210.99

$

In Stock, only 3 left!

0

23

Toro 116-6373

MUFFLER GUARD ASM
(Superseded to 126-5015)

$210.99

$

Usually ships in 3-6 days

0

23:2

Toro 106-5517

DECAL-WARNING

$5.49

$

In Stock, only 4 left!

0

24

Toro 116-3113-01

PANEL-GUARD

$108.99

$

Usually ships in 3-6 days

0

25

Toro 3231-31

SCREW-CARR

$6.99

$

In Stock, Qty 20+

0

26

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0

27

Toro 2412-87

CLAMP-CABLE

$3.49

$

Usually ships in 3-6 days

0

28

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

29

Toro 104-7201

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Toro 119-7312

PLATE-STRIKER

$20.99

$

Usually ships in 3-6 days

0

31

Toro 3229-11

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

36

Toro 68-3640

DECAL

$20.99

$

In Stock, only 2 left!

0

37

Toro 117-3591

DECAL-COMMERCIAL

$14.99

$

In Stock, only 3 left!

0

45

Toro 116-5067

BRACKET-HOSE, FUEL (DOUBLE)

$22.99

$

Usually ships in 3-6 days

0

46

Toro 121-6003

GUARD-HOSE

$15.99

$

Usually ships in 3-6 days

0

47

Toro 121-6004

GUIDE-HOSE

$13.99

$

Usually ships in 3-6 days

0
