74588 - Toro 48" GrandStand Stand-On Mower (SN: 315000001 - 315999999) (2015) ELECTRICAL ASSEMBLY Parts Diagram

48" GrandStand Stand-On Mower

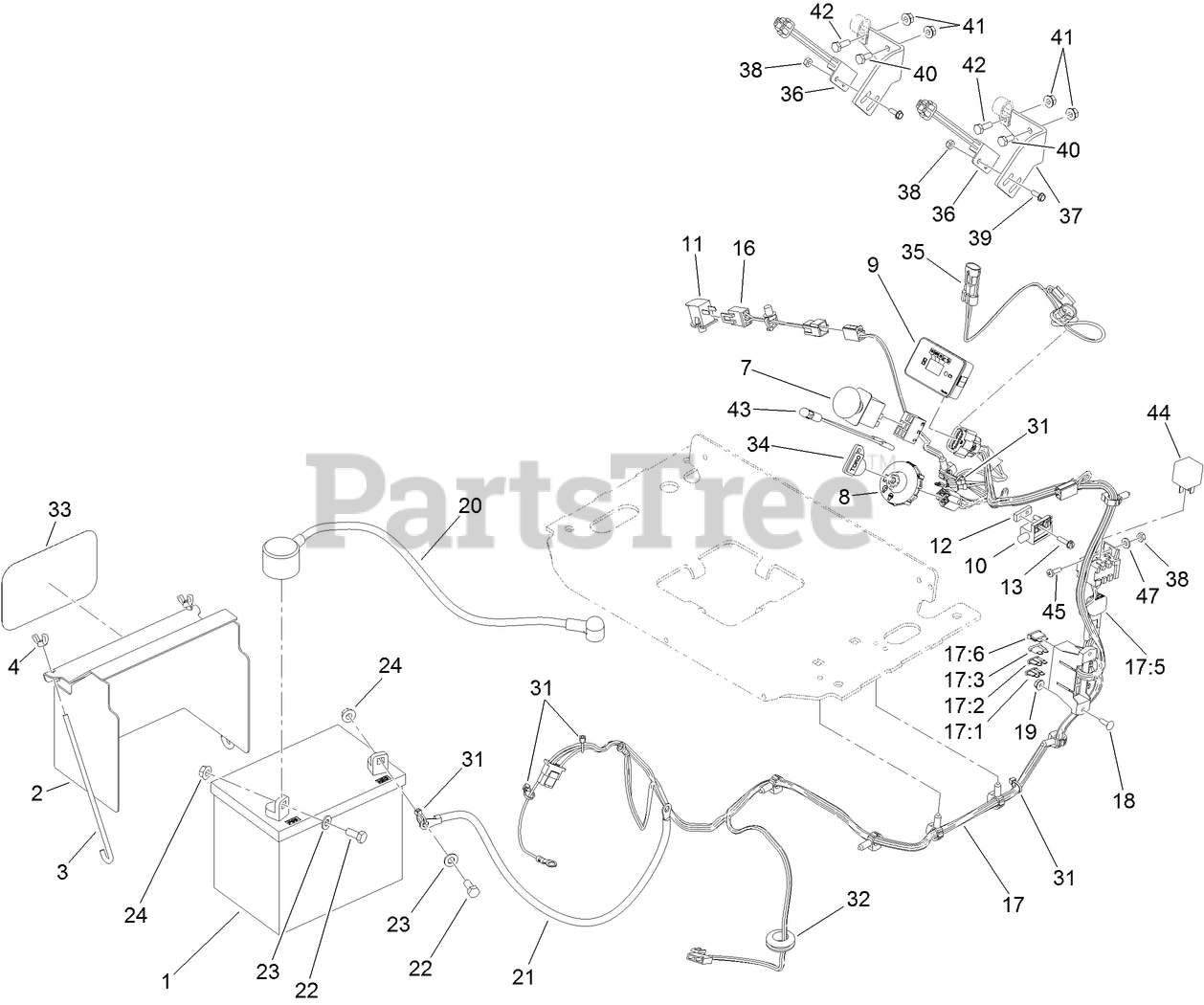

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-8162

BATTERY-DRY

$

$

Not available

2

Toro 117-0543-01

COVER-BATTERY

$106.99

$

Usually ships in 3-6 days

0

3

Toro 1-633651

BOLT-HOLDDOWN

$8.49

$

In Stock, Qty 12

0

4

Toro 1-543792

WINGNUT

$6.99

$

In Stock, Qty 13

0

7

Toro 114-0279

SWITCH-PTO, ON-ON-(ON)

$62.99

$

In Stock, only 3 left!

0

8

Toro 117-2222

SWITCH-IGNITION
(Superseded to 137-4101)

$36.99

$

In Stock, Qty 10

0

9

Toro 117-3886

MODULE-HOUR METER

$229.99

$

Usually ships in 3-6 days

0

10

Toro 1-513152

SWITCH-CLOSED, NORMALLY

$14.99

$

In Stock, only 3 left!

0

11

Toro 82-2190

SWITCH-BAIL

$15.99

$

In Stock, Qty 6

0

12

Toro 1-633181

PLATE-TAPPED

$6.99

$

In Stock, Qty 12

0

13

Toro 32105-13

SCREW-HWH

$1.99

$

Usually ships in 3-6 days

0

16

Toro 130-1779

HARNESS-WIRE, JUMPER (OPC)

$39.99

$

Usually ships in 3-6 days

0

17

Toro 121-7509

Harness-Wire, EFI

$548.99

$

Usually ships in 3-6 days

0

17:1

Toro 109103

FUSE-BLADE, 30 AMP

$6.99

$

In Stock, Qty 8

0

17:2

Toro 109102

FUSE-BLADE, 25 AMP

$6.49

$

Usually ships in 3-6 days

0

17:3

Toro 218-578

FUSE-BLADE, 10 AMP

$2.99

$

In Stock, Qty 5

0

17:5

Toro 103-3895

DIODE

$68.99

$

In Stock, only 2 left!

0

17:6

Toro 109355

FUSE-BLADE, 15 AMP

$3.99

$

In Stock, only 2 left!

0

17:4

Toro 116-0053

CAP-PLUG

Note: Not illustrated

$43.99

$

Usually ships in 3-6 days

0

18

Toro 1-807533

BOLT-CARR

$1.99

$

In Stock, Qty 12

0

19

Toro 3290-148

NUT-HF

$0.99

$

In Stock, Qty 5

0

20

Toro 115-3864

CABLE-BATTERY, POSITIVE

$33.99

$

In Stock, Qty 6

0

21

Toro 105-0836

CABLE-BATTERY, BLACK

$21.99

$

Usually ships in 3-6 days

0

22

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

24

Toro 109-5715

NUT-HHF, SMOOTH

$1.49

$

Usually ships in 3-6 days

0

31

Toro 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

32

Toro 117-2781

GROMMET

$8.49

$

Usually ships in 3-6 days

0

33

Toro 68-3640

DECAL

$21.99

$

In Stock, Qty 14

0

34

Toro 63-8360

KEY-IGNITION

$6.49

$

In Stock, Qty 20+

0

35

Toro 119-8729

HARNESS-WIRE, NEUTRAL SWITCH

$67.99

$

Usually ships in 3-6 days

0

36

Toro 105-0023

SWITCH-PROXIMITY

$153.99

$

In Stock, only 1 left!

0

37

Toro 119-8503-01

BRACKET-MOUNT, SWITCH

$19.99

$

Usually ships in 3-6 days

0

38

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 16

0

39

Toro 32105-23

SCREW

$1.49

$

In Stock, only 3 left!

0

40

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

41

Toro 32128-32

NUT-HHF

$3.49

$

In Stock, Qty 20+

0

42

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

43

Toro 1-643267

INDICATOR-LED, RED

$26.99

$

In Stock, only 4 left!

0

44

Toro 1-643275

RELAY

$25.99

$

In Stock, Qty 13

0

45

Toro 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

47

Toro 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
