74590 (190-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) ENGINE BRIGGS & STRATTON MODEL 406777-0157-E1 Parts Diagram

Lawn Tractor

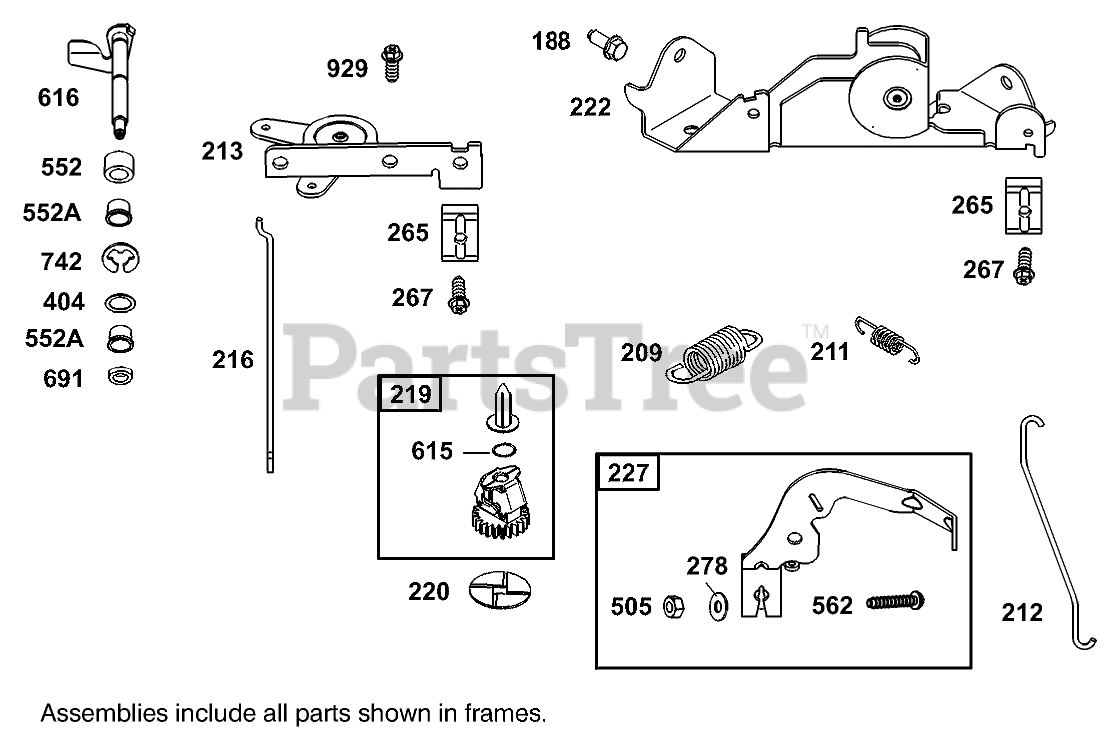

ENGINE BRIGGS & STRATTON MODEL 406777-0157-E1 Parts Diagram

  • Title

188

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

209

Briggs & Stratton 691018

Spring-Governor

$11.99

$

Usually ships in 2-12 days

0

211

Briggs & Stratton 691019

Spring-Idle, Governed

$4.99

$

In Stock, only 1 left!

0

212

Briggs & Stratton 691020

Link-Throttle

$9.49

$

Usually ships in 2-12 days

0

213

Briggs & Stratton 691021

Bracket-Control, Choke

$10.99

$

In Stock, only 1 left!

0

216

Briggs & Stratton 691022

Link-Choke

$8.49

$

In Stock, only 1 left!

0

219

Briggs & Stratton 394348

Gear-Governor
(Superseded to 793338)

$27.99

$

In Stock, Qty 7

0

220

Briggs & Stratton 690412

Washer

$5.49

$

Usually ships in 2-12 days

0

222

Briggs & Stratton 691023

Bracket-Control
(Superseded to 592661)

$61.99

$

Usually ships in 2-12 days

0

227

Briggs & Stratton 691048

Lever-Control, Governor
(Superseded to 798856)

$23.99

$

In Stock, only 1 left!

0

265

Briggs & Stratton 221535

Clamp-Casing
(Superseded to 691024)

$3.99

$

In Stock, only 1 left!

0

267

Briggs & Stratton 691044

Screw

$3.99

$

In Stock, Qty 11

0

278

Briggs & Stratton 94942

Washer (Governor Control Lever)
(Superseded to 692810)

$5.49

$

Usually ships in 2-12 days

0

404

Briggs & Stratton 690442

Washer

$3.49

$

In Stock, Qty 8

0

505

Briggs & Stratton 92278

Nut-Hex
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 690552

Bushing-Crank, Governor

$8.49

$

In Stock, Qty 10

0

552A

Briggs & Stratton 690553

Bushing-Crank, Governor

$7.49

$

In Stock, Qty 11

0

562

Briggs & Stratton 690311

Bolt

$4.49

$

Usually ships in 2-12 days

0

615

Briggs & Stratton 690317

Retainer-Shaft, Governor
(Superseded to 698290)

$4.49

$

In Stock, only 1 left!

0

616

Briggs & Stratton 691045

Crank-Governor

$19.99

$

In Stock, only 1 left!

0

691

Briggs & Stratton 690657

Seal-Shaft, Governor
(Superseded to 790574)

Note: Included in Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 7

0

742

Briggs & Stratton 690328

Retainer-E Ring

$4.49

$

In Stock, Qty 8

0

929

Briggs & Stratton 94930

Screw-Hex
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0
