74590 (190-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) Engine Briggs Stratton Model 406777-0157-E1 2 Parts Diagram

Lawn Tractor

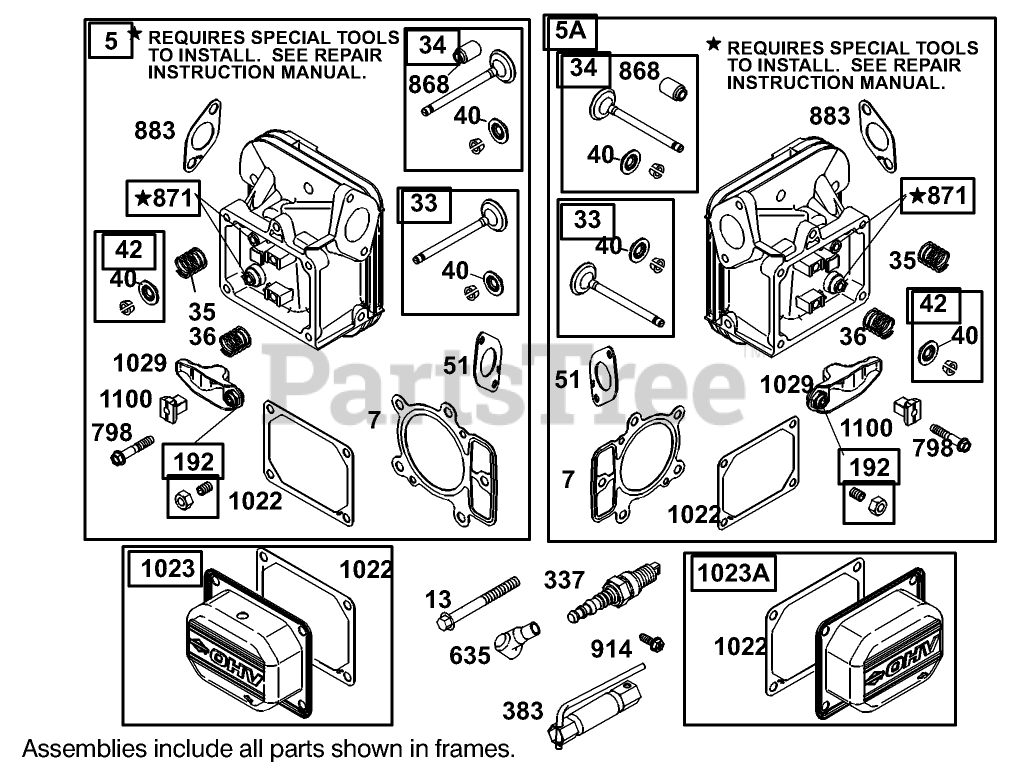

Engine Briggs Stratton Model 406777-0157-E1 2 Parts Diagram

  • Title

5

Toro 499587

Head-Cylinder(Cylinder #1)

$

$

Currently unavailable

5A

Toro 499595

Head-Cylinder (Cylinder #2)

$

$

Currently unavailable

7

Toro 690962

Gasket-Head, Cylinder

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

7

Toro 690962

Gasket-Head, Cylinder

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

13

Toro 690360

Screw

$

$

Currently unavailable

33

Toro 499596

Valve-Exhaust

$

$

Currently unavailable

34

Toro 499597

Valve-Intake

$

$

Currently unavailable

35

Toro 690963

Spring-Valve

$

$

Currently unavailable

36

Toro 690963

Spring-Valve

$

$

Currently unavailable

40

Toro 263215

Retainer-Valve

$

$

Currently unavailable

42

Toro 499586

Keeper-Valve

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

192

Toro 690083

Adjuster-Arm, Rocker

$

$

Currently unavailable

337

Toro 691043

Spark Plug

$

$

Currently unavailable

383

Toro 19374

Wrench-Spark Plug

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

798

Toro 690967

Screw (Rocker Arm)

$

$

Currently unavailable

868

Toro 690968

Seal-Valve

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

868

Toro 690968

Seal-Valve

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

871

Toro 690969

Bushing-Valve Guide

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

914

Toro 690960

Screw

$

$

Currently unavailable

1022

Toro 273486

Gasket-Rocker Cover

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

1022

Toro 273486

Gasket-Rocker Cover

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

1023

Toro 499599

Cover-Rocker

$

$

Currently unavailable

1023A

Toro 499600

Cover-Arm, Rocker

$

$

Currently unavailable

1029

Toro 690972

Arm-Rocker

$

$

Currently unavailable

1100

Toro 690973

Pivot-Arm, Rocker

$

$

Currently unavailable
