74590 (190-DH) - Toro Lawn Tractor (SN: 200000001 - 200999999) (2000) Engine Briggs Stratton Model 406777-0157-E1 9 Parts Diagram

Lawn Tractor

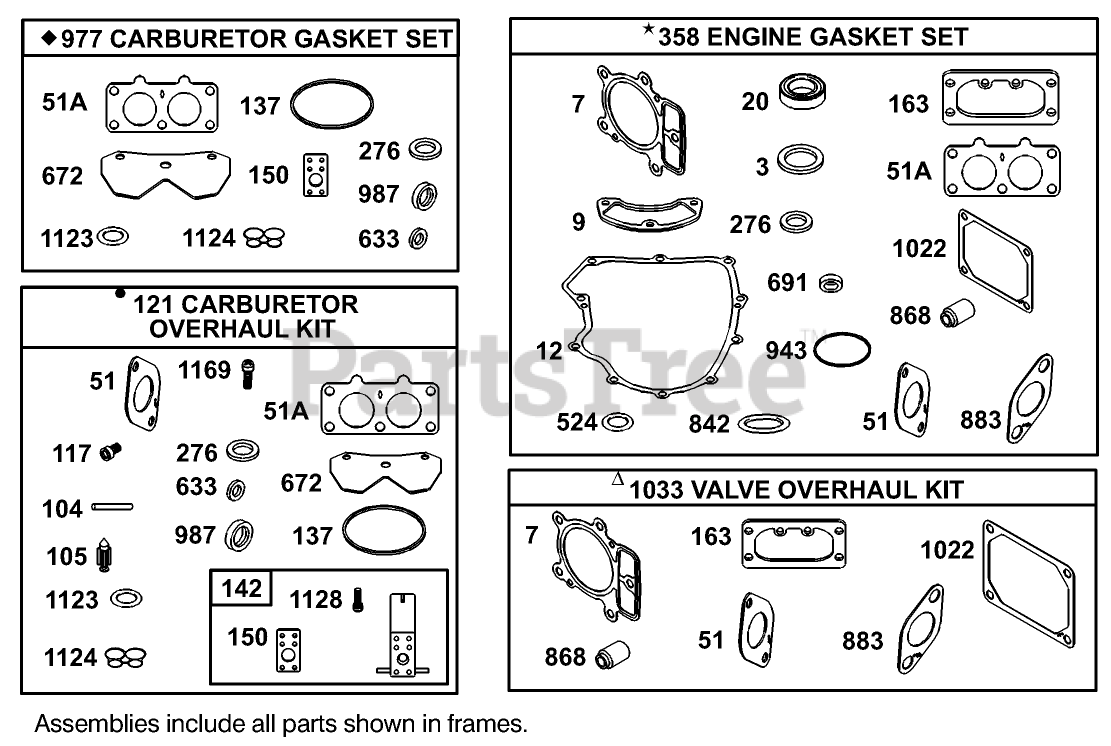

Engine Briggs Stratton Model 406777-0157-E1 9 Parts Diagram

  • Title

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

7

Toro 690962

Gasket-Head, Cylinder

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

7

Toro 690962

Gasket-Head, Cylinder

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

9

Toro 273370

Gasket-Breather

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

12

Toro 273488

Gasket-Crankcase

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

20

Toro 690947

Seal-Oil

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

51A

Toro 690950

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

51A

Toro 690950

Gasket-Intake

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

51A

Toro 690950

Gasket-Intake

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

104

Toro 690984

Guard-Muffler

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

105

Toro 690985

Valve-Float, Needle

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

117

Toro 690232

Jet-Main

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

121

Toro 499811

Carburetor Overhaul Kit

$

$

Currently unavailable

137

Toro 690994

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

137

Toro 690994

Gasket-Bowl, Float

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

142

Toro 499808

Nozzle-Carburetor

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

150

Toro 690995

Gasket-Nozzle

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

150

Toro 690995

Gasket-Nozzle

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

163

Toro 273640

Gasket-Air Cleaner

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

163

Toro 273640

Gasket-Air Cleaner

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

276

Toro 690997

Washer-Sealing

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

276

Toro 690997

Washer-Sealing

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

276

Toro 690997

Washer-Sealing

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

358

Toro 499889

Engine Gasket Set

$

$

Currently unavailable

524

Toro 691032

Seal-O Ring

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

633

Toro 690998

Seal-Shaft, Choke/Throttle

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

633

Toro 690998

Seal-Shaft, Choke/Throttle

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

672

Toro 690234

Gasket-Cover Plate, Carburetor

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

672

Toro 690234

Gasket-Cover Plate, Carburetor

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

691

Toro 690657

Seal-Shaft, Governor

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

842

Toro 280393

O-Ring Seal

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

868

Toro 690968

Seal-Valve

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

868

Toro 690968

Seal-Valve

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

943

Toro 690589

Seal-O Ring

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

977

Toro 499812

Carburetor Gasket Set

$

$

Currently unavailable

987

Toro 691000

Seal-Shaft, Throttle

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

987

Toro 691000

Seal-Shaft, Throttle

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

1022

Toro 273486

Gasket-Rocker Cover

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

1022

Toro 273486

Gasket-Rocker Cover

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

1033

Toro 499890

Valve Overhaul Kit

$

$

Currently unavailable

1123

Toro 690987

O-Ring Seal (Solenoid Retainer)

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

1123

Toro 690987

O-Ring Seal (Solenoid Retainer)

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

1124

Toro 690988

Seal-O Ring

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

1124

Toro 690988

Seal-O Ring

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

1128

Toro 690990

Screw

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

1169

Toro 690990

Screw

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable
