74590 (190-DH) - Toro Lawn Tractor (SN: 210000001 - 210999999) (2001) BLOWER HOUSING ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 406777-0157-E1 Parts Diagram

Lawn Tractor

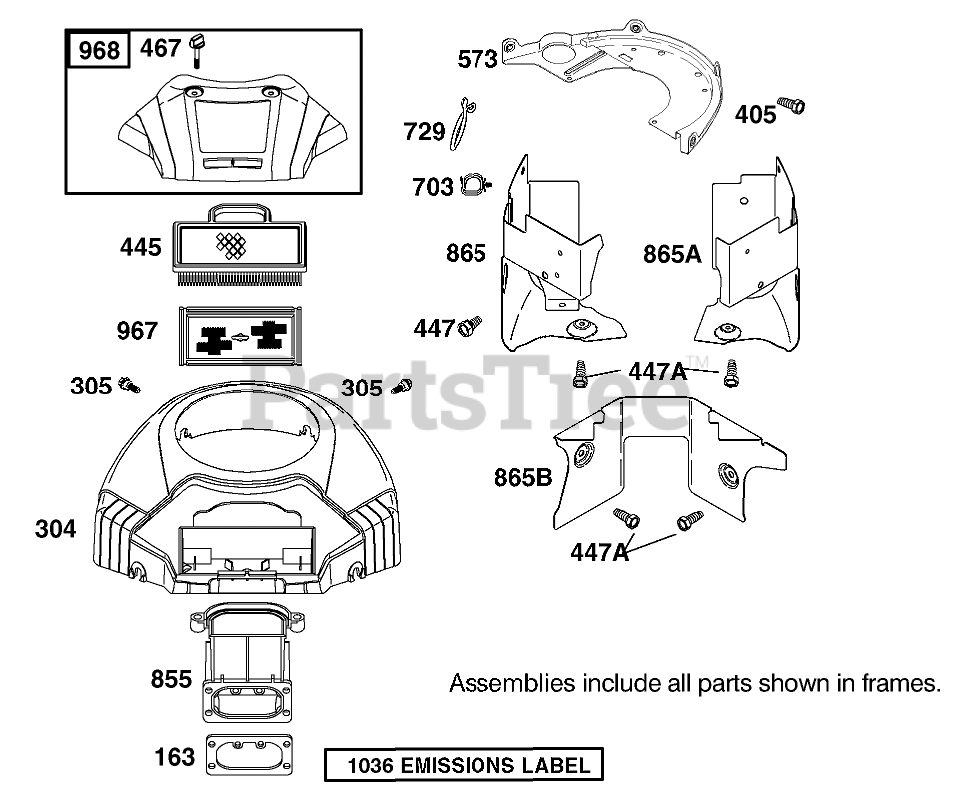

BLOWER HOUSING ASSEMBLY ENGINE BRIGGS AND STRATTON MODEL 406777-0157-E1 Parts Diagram

  • Title

163

Briggs & Stratton 273640

Gasket-Air Cleaner
(Superseded to 691001)

Note: Included in Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 8

0

163

Briggs & Stratton 273640

Gasket-Air Cleaner
(Superseded to 691001)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$3.49

$

In Stock, Qty 8

0

304

Briggs & Stratton 691004

Housing-Blower

$201.99

$

Usually ships in 2-12 days

0

305

Briggs & Stratton 691005

Screw
(Superseded to 594618)

$3.99

$

Usually ships in 2-12 days

0

405

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

445

Briggs & Stratton 499486

Filter-Cartridge, Air Cleaner
(Superseded to 499486S)

$15.99

$

In Stock, Qty 20+

0

447

Briggs & Stratton 94930

Screw-Hex
(Superseded to 691003)

$3.49

$

In Stock, only 2 left!

0

447A

Briggs & Stratton 690960

Screw
(Superseded to 691108)

$3.49

$

In Stock, Qty 20+

0

467

Briggs & Stratton 691008

Knob-Cleaner, Air

$13.99

$

In Stock, Qty 5

0

573

Briggs & Stratton 691009

Plate-Back
(Superseded to 594902)

$59.99

$

Usually ships in 2-12 days

0

703

Briggs & Stratton 691010

Clip

$6.99

$

Usually ships in 2-12 days

0

729

Briggs & Stratton 694123

Clip?Wire

$4.49

$

Usually ships in 2-12 days

0

855

Briggs & Stratton 691011

Adapter-Air

$45.99

$

Usually ships in 2-12 days

0

865

Briggs & Stratton 691012

Cover-Guide, Air
(Superseded to 796852)

$37.99

$

Usually ships in 2-12 days

0

865A

Briggs & Stratton 691014

Cover-Guide, Air (Cylinder 2)
(Superseded to 591666)

$47.99

$

Usually ships in 2-12 days

0

865B

Briggs & Stratton 691015

Cover-Guide, Air (Valley)

$27.99

$

Usually ships in 2-12 days

0

967

Briggs & Stratton 273638

Filter-Pre Cleaner
(Superseded to 273638S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 499788

Cover-Air Cleaner
(Superseded to 790692)

$159.99

$

Usually ships in 2-12 days

0

1036

Briggs & Stratton 694390

Emission Label

$3.99

$

Usually ships in 2-12 days

0
