74590 (190-DH) - Toro Lawn Tractor (SN: 220000001 - 220999999) (2002) Axle Shaft Assembly Parts Diagram
Lawn Tractor

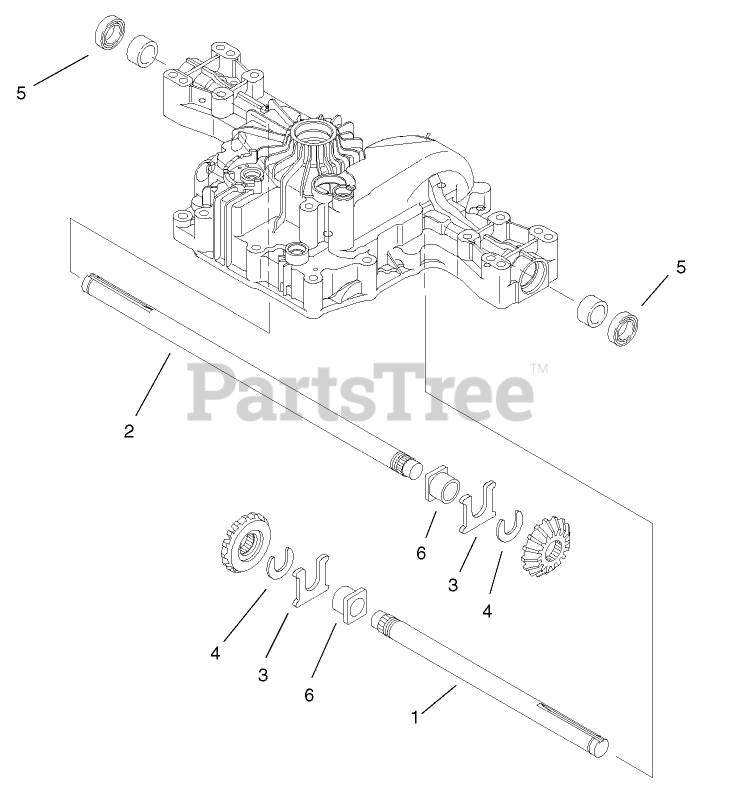

Axle Shaft Assembly Parts Diagram
Toro 104-3307
SHAFT-AXLE, RH
$351.99
$
Usually ships in 3-6 days
Toro 104-3308
SHAFT-AXLE, LH
$351.99
$
Usually ships in 3-6 days
Toro 104-3309
WASHER-THRUST
$19.99
$
Usually ships in 3-6 days
Toro 104-3310
RING
$4.49
$
Usually ships in 3-6 days
Toro 104-3311
SEAL
$37.99
$
Usually ships in 3-6 days
Toro 104-3312
BUSHING
$10.99
$
Usually ships in 3-6 days
