74590 (190-DH) - Toro Lawn Tractor (SN: 220000001 - 220999999) (2002) Carburetor Assembly Engine Briggs and Stratton Model 406777-0157-E1 Parts Diagram

Lawn Tractor

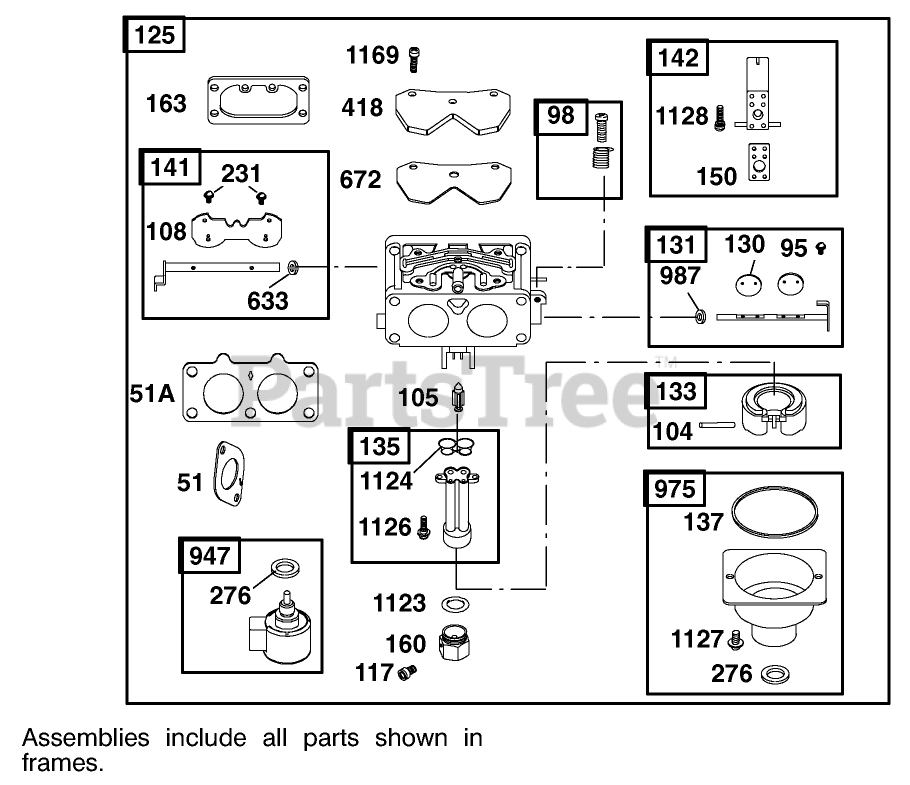

Carburetor Assembly Engine Briggs and Stratton Model 406777-0157-E1 Parts Diagram

  • Title

51

Toro 273487

Gasket-Intake

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

51A

Toro 690950

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

51A

Toro 690950

Gasket-Intake

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

51A

Toro 690950

Gasket-Intake

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

95

Toro 690718

Screw

$

$

Currently unavailable

98

Toro 499802

Idle Speed Kit

$

$

Currently unavailable

104

Toro 690984

Guard-Muffler

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

105

Toro 690985

Valve-Float, Needle

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

108

Toro 690986

Valve-Choke

$

$

Currently unavailable

117

Toro 690232

Jet-Main

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

Toro 690989

Jet-Main(High Altitude)

$

$

Currently unavailable

125

Toro 499804

Carburetor

$

$

Currently unavailable

130

Toro 690993

Valve-Throttle

$

$

Currently unavailable

131

Toro 499805

Throttle Shaft Kit

$

$

Currently unavailable

133

Toro 499806

Float-Carburetor

$

$

Currently unavailable

135

Toro 499803

Tube-Fuel Transfer

$

$

Currently unavailable

137

Toro 690994

Gasket-Bowl, Float

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

137

Toro 690994

Gasket-Bowl, Float

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

141

Toro 499807

Kit-Choke Shaft

$

$

Currently unavailable

142

Toro D499808

Nozzle-Carburetor

$

$

Currently unavailable

150

Toro 690995

Gasket-Nozzle

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

150

Toro 690995

Gasket-Nozzle

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

160

Toro 690996

Retainer-Solenoid

$

$

Currently unavailable

163

Toro 273640

Gasket-Air Cleaner

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

163

Toro 273640

Gasket-Air Cleaner

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

231

Toro 690718

Screw

$

$

Currently unavailable

276

Toro 690997

Washer-Sealing

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

276

Toro 690997

Washer-Sealing

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

276

Toro 690997

Washer-Sealing

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

418

Toro 690999

Plate-Cover, Carburetor

$

$

Currently unavailable

633

Toro 690998

Seal-Shaft, Choke/Throttle

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

633

Toro 690998

Seal-Shaft, Choke/Throttle

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

672

Toro 690234

Gasket-Cover Plate, Carburetor

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

672

Toro 690234

Gasket-Cover Plate, Carburetor

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

947

Toro 499809

Solenoid-Fuel

$

$

Currently unavailable

975

Toro 499810

Bowl-Float

$

$

Currently unavailable

987

Toro 691000

Seal-Shaft, Throttle

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

987

Toro 691000

Seal-Shaft, Throttle

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

1123

Toro 690987

O-Ring Seal (Solenoid Retainer)

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

1123

Toro 690987

O-Ring Seal (Solenoid Retainer)

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

1124

Toro 690988

Seal-O Ring

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

1124

Toro 690988

Seal-O Ring

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

1126

Toro 690991

Screw

$

$

Currently unavailable

1127

Toro 690992

Screw (Float Bowl)

$

$

Currently unavailable

1128

Toro 690990

Screw

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

1169

Toro 690990

Screw

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable
