74590 (190-DH) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

Lawn Tractor

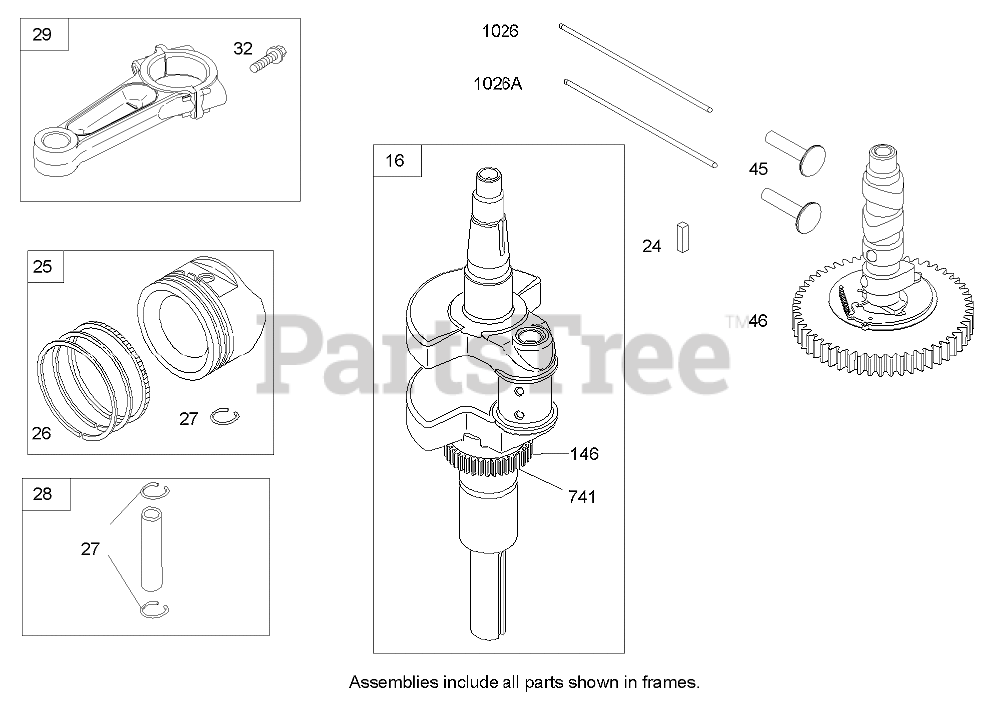

CRANKSHAFT ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

  • Title

16

Briggs & Stratton 691046

Crankshaft
(Superseded to 595704)

Note: Obtain parts from www.briggsandstratton.com

$385.99

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 20+

0

25

Briggs & Stratton 499588

Piston ASM (Standard)
(Superseded to 793647)

Note: Obtain parts from www.briggsandstratton.com

$137.99

$

In Stock, only 1 left!

0

Toro 499589

Piston Assembly (.010 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

Briggs & Stratton 499590

Piston ASM (.020in Oversize)
(Superseded to 793648)

Note: Obtain parts from www.briggsandstratton.com

$159.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499591

Piston Assembly (.030 Oversize)

Note: Obtain parts from www.briggsandstratton.com

$96.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 499604

Ring Set (Standard)

Note: Obtain parts from www.briggsandstratton.com

$69.99

$

In Stock, only 3 left!

0

Briggs & Stratton 499605

Ring Set (.010 Oversize)(Connecting Rod)

Note: Obtain parts from www.briggsandstratton.com

$43.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 263181

Lock-Piston Pin
(Superseded to 690975)

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, only 1 left!

0

28

Briggs & Stratton 690229

Pin-Piston (STD)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 1 left!

0

29

Toro 499583

Connecting Rod (Standard)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

32

Briggs & Stratton 690976

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 262679

Tappet-Valve
(Superseded to 690977)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 2 left!

0

46

Briggs & Stratton 690978

Camshaft

Note: Obtain parts from www.briggsandstratton.com

$100.99

$

Usually ships in 2-12 days

0

146

Briggs & Stratton 94388

Key-Timing
(Superseded to 690979)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, only 3 left!

0

741

Briggs & Stratton 690980

Gear-Timing

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

In Stock, only 1 left!

0

1026

Briggs & Stratton 690981

Rod-Push (Steel)
(Superseded to 597785)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

1026A

Briggs & Stratton 690982

Rod-Push (Aluminum)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0
