74590 (190-DH) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) CYLINDER ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

Lawn Tractor

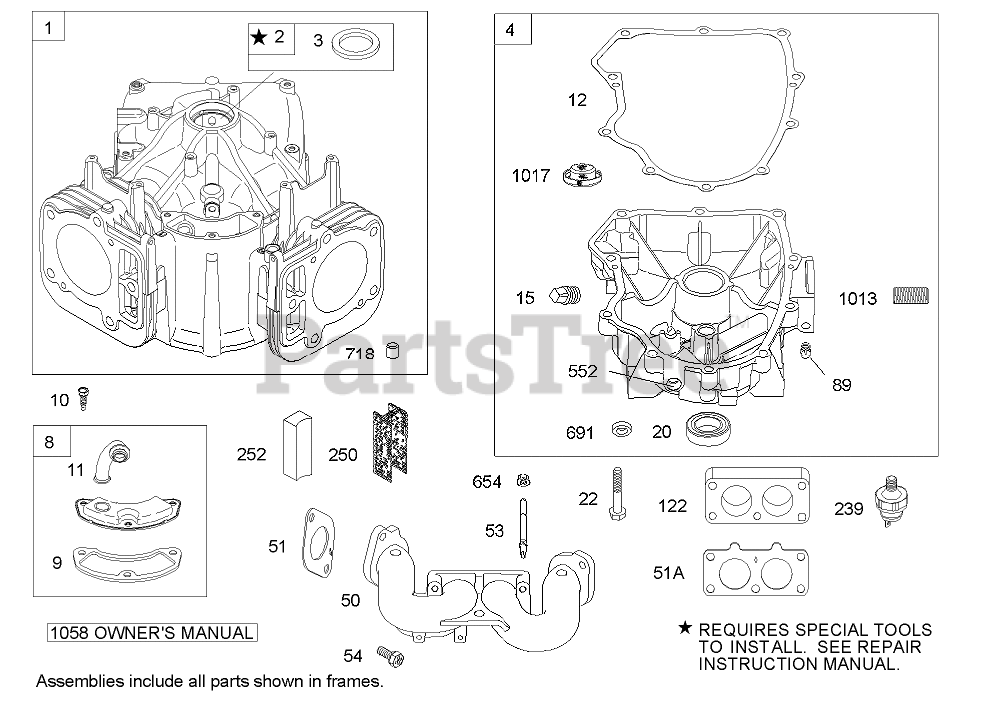

CYLINDER ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

  • Title

1

Briggs & Stratton 690231

Cylinder Assembly
(Superseded to 797096)

Note: Obtain parts from www.briggsandstratton.com

$362.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 499585

Bushing and Seal Kit
(Superseded to 797673)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 3 left!

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 20+

0

3

Briggs & Stratton 391086

Seal-Oil
(Superseded to 391086S)

Note: Included in Engine Gasket Set-Ref. 358.

$6.49

$

In Stock, Qty 20+

0

4

Briggs & Stratton 690069

Sump-Engine

Note: Obtain parts from www.briggsandstratton.com

$154.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 499601

Breather ASM
(Superseded to 792185)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

9

Briggs & Stratton 273370

Gasket-Breather
(Superseded to 690937)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 2 left!

0

9

Briggs & Stratton 273370

Gasket-Breather
(Superseded to 690937)

Note: Included in Engine Gasket Set-Ref. 358.

$8.49

$

In Stock, only 2 left!

0

10

Briggs & Stratton 690960

Screw
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 690942

Tube-Breather
(Superseded to 792184)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 273488

Gasket-Crankcase
(Superseded to 594195)

Note: Obtain parts from www.briggsandstratton.com

$37.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 273488

Gasket-Crankcase
(Superseded to 594195)

Note: Included in Engine Gasket Set-Ref. 358.

$37.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 94239

Plug-Pipe
(Superseded to 690946)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 17

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Included in Engine Gasket Set-Ref. 358.

$7.49

$

In Stock, Qty 20+

0

22

Briggs & Stratton 690308

Screw (Crankcase Cover/Sump)
(Superseded to 694966)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

50

Briggs & Stratton 690948

Manifold-Intake
(Superseded to 595606)

Note: Obtain parts from www.briggsandstratton.com

$87.99

$

In Stock, only 4 left!

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 13

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Engine Gasket Set-Ref. 358.

$3.49

$

In Stock, Qty 13

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$3.49

$

In Stock, Qty 13

0

51

Briggs & Stratton 273487

Gasket-Intake
(Superseded to 690949)

Note: Included in Valve Overhaul Kit-Ref. 1033.

$3.49

$

In Stock, Qty 13

0

51A

Briggs & Stratton 690950

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$2.99

$

In Stock, Qty 19

0

51A

Briggs & Stratton 690950

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$2.99

$

In Stock, Qty 19

0

51A

Briggs & Stratton 690950

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$2.99

$

In Stock, Qty 19

0

51A

Briggs & Stratton 690950

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$2.99

$

In Stock, Qty 19

0

53

Briggs & Stratton 690951

Stud

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 3 left!

0

54

Briggs & Stratton 94913

Screw-Torx Hex
(Superseded to 690953)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 19

0

89

Briggs & Stratton 690283

Plug-Oil
(Superseded to 794903)

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 1 left!

0

122

Briggs & Stratton 690952

Spacer-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, only 1 left!

0

239

Briggs & Stratton 491657

Switch?Oil Pressure
(Superseded to 491657S)

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

In Stock, only 1 left!

0

250

Briggs & Stratton 690957

Retainer-Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

252

Briggs & Stratton 690956

Collector-Oil
(Superseded to 794389)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

552

Briggs & Stratton 690552

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 10

0

654

Briggs & Stratton 94010

Nut
(Superseded to 690958)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 7

0

691

Briggs & Stratton 690657

Seal-Shaft, Governor
(Superseded to 790574)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 7

0

691

Briggs & Stratton 690657

Seal-Shaft, Governor
(Superseded to 790574)

Note: Included in Engine Gasket Set-Ref. 358.

$5.99

$

In Stock, Qty 7

0

718

Briggs & Stratton 230192

Pin-Dowel
(Superseded to 690959)

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0

1013

Briggs & Stratton 690954

Nipple-Filter, Oil

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 9

0

1017

Briggs & Stratton 690770

Screen-Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

1058

Toro 274277

Owner-s Manual

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
