74590 (190-DH) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) ENGINE ASSEMBLY Parts Diagram

Lawn Tractor

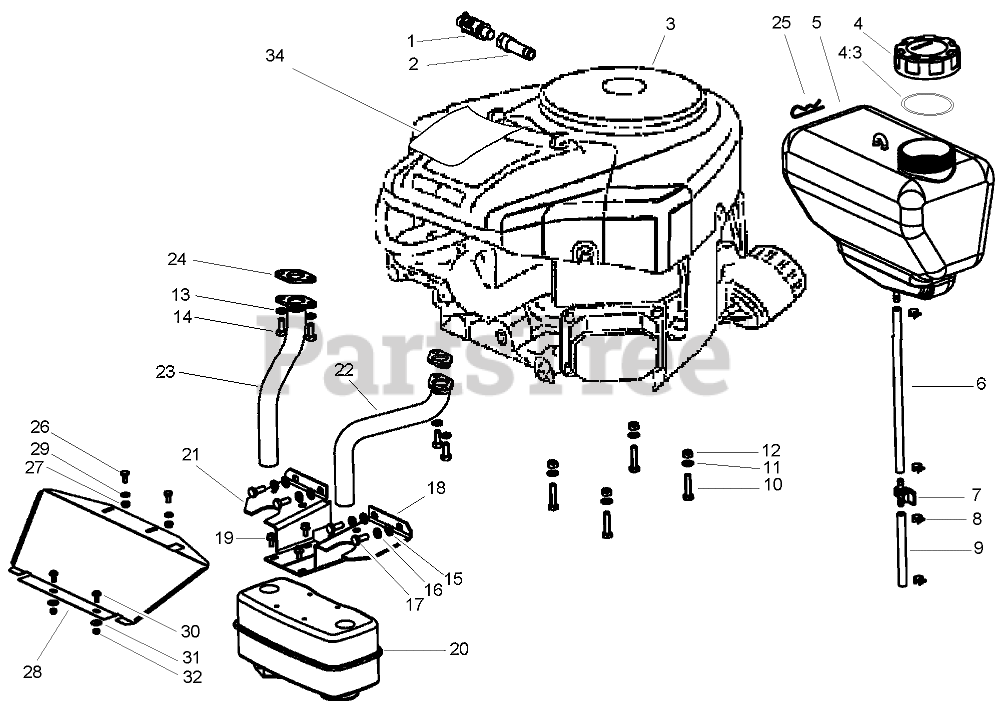

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 104-3208

VALVE-OIL DRAIN

$

$

Currently unavailable

2

Toro 106-5764

Coupler-Oil Drain

$

$

Not available

3

ENGINE-Briggs and Stratton, 406777-0157-E1

Note: Not serviced separately

$

$

Not available

4

Toro 88-3980

GAS CAP ASM

$31.99

$

In Stock, Qty 6

0

4:3

Toro 88-4010

GASKET-CAP, GAS

$29.99

$

In Stock, only 4 left!

0

5

Toro 104-3057

TANK-FUEL

$

$

Currently unavailable

6

Toro 106-0890

LINE-FUEL

$

$

Not available

7

Toro 104-3224

VALVE-TANK, FUEL

$

$

Currently unavailable

8

Toro 104-3212

CLAMP-LINE, FUEL

$

$

Currently unavailable

9

Toro 106-0891

LINE-FUEL

$

$

Currently unavailable

10

Toro 33114-035

SCREW-HH

$4.99

$

In Stock, only 3 left!

0

11

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

12

Toro 33024-00

NUT-LOCK, NI

$0.99

$

Usually ships in 3-6 days

0

13

Toro 104-2927

WASHER-SPRING

$

$

Not available

14

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

15

Toro 33094-00

WASHER-PLAIN

$0.99

$

In Stock, only 2 left!

0

16

Toro 104-2927

WASHER-SPRING

$

$

Not available

17

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

18

Toro 104-3214

GUARD-MUFFLER, LH

$

$

Currently unavailable

19

Toro 106-5763

Screw

$

$

Currently unavailable

20

Toro 104-3225

MUFFLER

$

$

Currently unavailable

21

Toro 104-3215

GUARD-MUFFLER, RH

$

$

Currently unavailable

22

Toro 104-3216

TUBE-EXHAUST, LH

$

$

Currently unavailable

23

Toro 104-3217

TUBE-EXHAUST, RH

$

$

Currently unavailable

24

Toro 104-3226

GASKET-EXHAUST

$10.99

$

In Stock, Qty 12

0

25

Toro 104-3144

PIN-HAIR

$

$

Currently unavailable

26

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

27

Toro 33023-00

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

28

Toro 104-3219

SHIELD-HEAT

$

$

Currently unavailable

29

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

30

Toro 104-2980

SCREW

$

$

Currently unavailable

31

Toro 104-2943

WASHER-FLAT

$

$

Currently unavailable

32

Toro 87-5140

NUT-LOCK

$0.99

$

Usually ships in 3-6 days

0

34

Toro 104-2901

DECAL-ENGINE

$

$

Not available
