74590 (190-DH) - Toro Lawn Tractor (SN: 240000001 - 240999999) (2004) Starter Assembly Briggs and Stratton 406777-0157-E1 Parts Diagram

Lawn Tractor

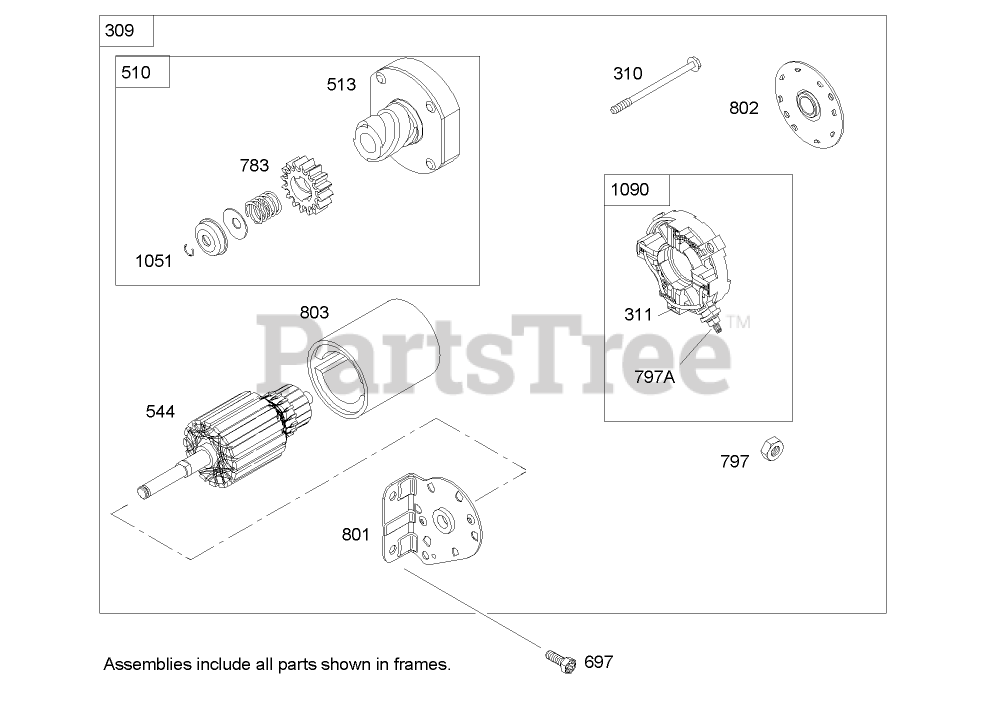

Starter Assembly Briggs and Stratton 406777-0157-E1 Parts Diagram

  • Title

309

Toro 691262

Motor-Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

309

Toro 691262

Motor-Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

310

Toro 691263

Bolt

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

311

Toro 497608

Brush Set

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

510

Toro 497606

Drive-Starter

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

513

Toro 398003

Clutch ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

544

Starter Armature (Serviced By 691262 Starter Motor Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

697

Toro 690372

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

783

Toro 693058

Gear-Pinion

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

797

Toro 92278

Nut-Hex

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

797A

Toro 693167

Nut

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

801

Toro 691283

Cap-Drive

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

802

Toro 497607

Cap-End

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

803

Housing-Starter (Serviced By 691262 Starter Motor Only)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1051

Toro 263080

Retainer

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1090

Toro 497605

Cap-End

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
