74590 (DH 220) - Toro Lawn Tractor (SN: 250000001 - 250999999) (2005) Cylinder Assembly Briggs and Stratton 406777-0157-E1 Parts Diagram

Lawn Tractor

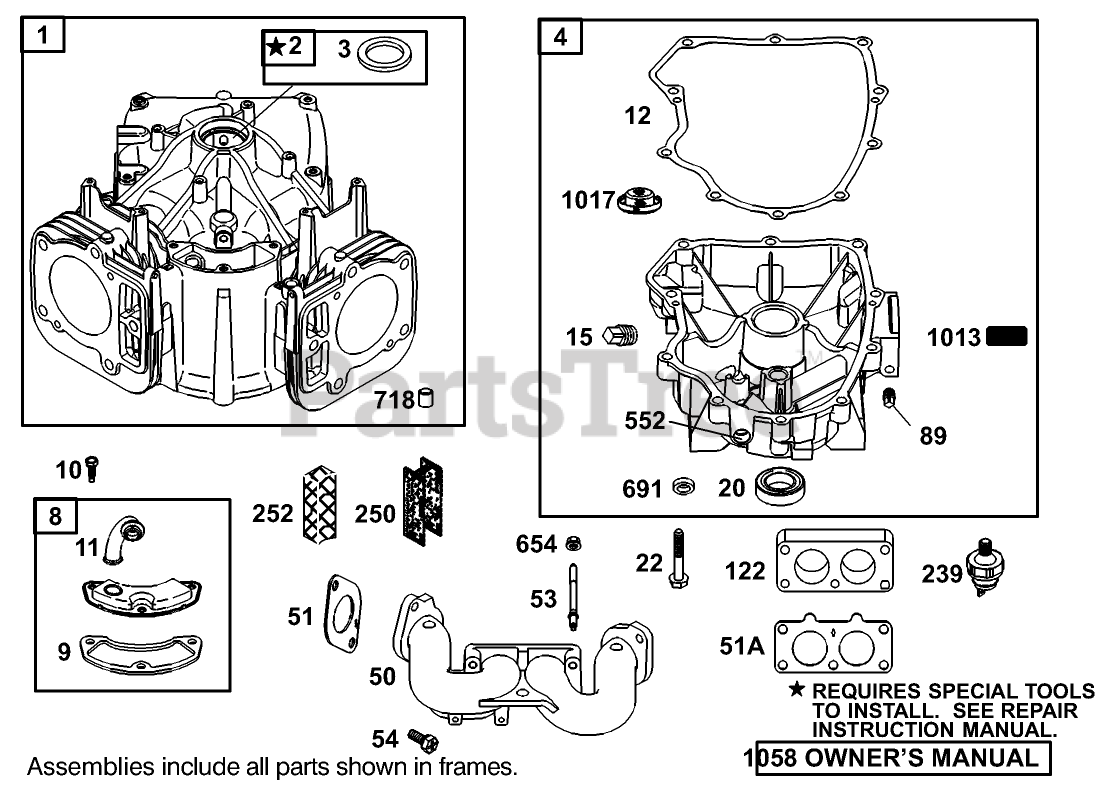

Cylinder Assembly Briggs and Stratton 406777-0157-E1 Parts Diagram

  • Title

1

Toro 690231

Cylinder Assembly

$

$

Currently unavailable

2

Toro 499585

Bushing and Seal Kit

$

$

Currently unavailable

3

Toro 391086

Seal-Oil

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

4

Toro 690069

Sump-Engine

$

$

Currently unavailable

8

Toro 499601

Breather ASM

$

$

Currently unavailable

9

Toro 273370

Gasket-Breather

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

10

Toro 690960

Screw

$

$

Currently unavailable

11

Toro 690942

Tube-Breather

$

$

Currently unavailable

12

Toro 273488

Gasket-Crankcase

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

15

Toro 94239

Plug-Pipe

$

$

Currently unavailable

20

Toro 690947

Seal-Oil

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

22

Toro 690308

Screw (Crankcase Cover/Sump)

$

$

Currently unavailable

50

Toro 690948

Manifold-Intake

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 273487

Gasket-Intake

Note: Included in Valve Overhaul Kit-Ref. 1033.

$

$

Currently unavailable

51A

Toro 690950

Gasket-Intake

Note: Included in Caburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

51A

Toro 690950

Gasket-Intake

Note: Included in Carburetor Kit-Ref. 121

$

$

Currently unavailable

51A

Toro 690950

Gasket-Intake

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

53

Toro 690951

Stud

$

$

Currently unavailable

54

Toro 94913

Screw-Torx Hex

$

$

Currently unavailable

89

Toro 690283

Plug-Oil

$

$

Currently unavailable

122

Toro 690952

Spacer-Carburetor

$

$

Currently unavailable

239

Toro 491657

Switch?Oil Pressure

$

$

Currently unavailable

250

Toro 690957

Retainer-Breather

$

$

Currently unavailable

252

Toro 690956

Collector-Oil

$

$

Currently unavailable

552

Toro 690552

Bushing-Crank, Governor

$

$

Currently unavailable

654

Toro 94010

Nut

$

$

Currently unavailable

691

Toro 690657

Seal-Shaft, Governor

Note: Included in Gasket Set-Ref. 358.

$

$

Currently unavailable

718

Toro 230192

Pin-Dowel

$

$

Not available

1013

Toro 690954

Nipple-Filter, Oil

$

$

Currently unavailable

1017

Toro 690770

Screen-Pump, Oil

$

$

Currently unavailable

1058

Toro 274277

Owner-s Manual

$

$

Currently unavailable
