74590 (DH 220) - Toro Lawn Tractor (SN: 250000001 - 250999999) (2005) STARTER ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

Lawn Tractor

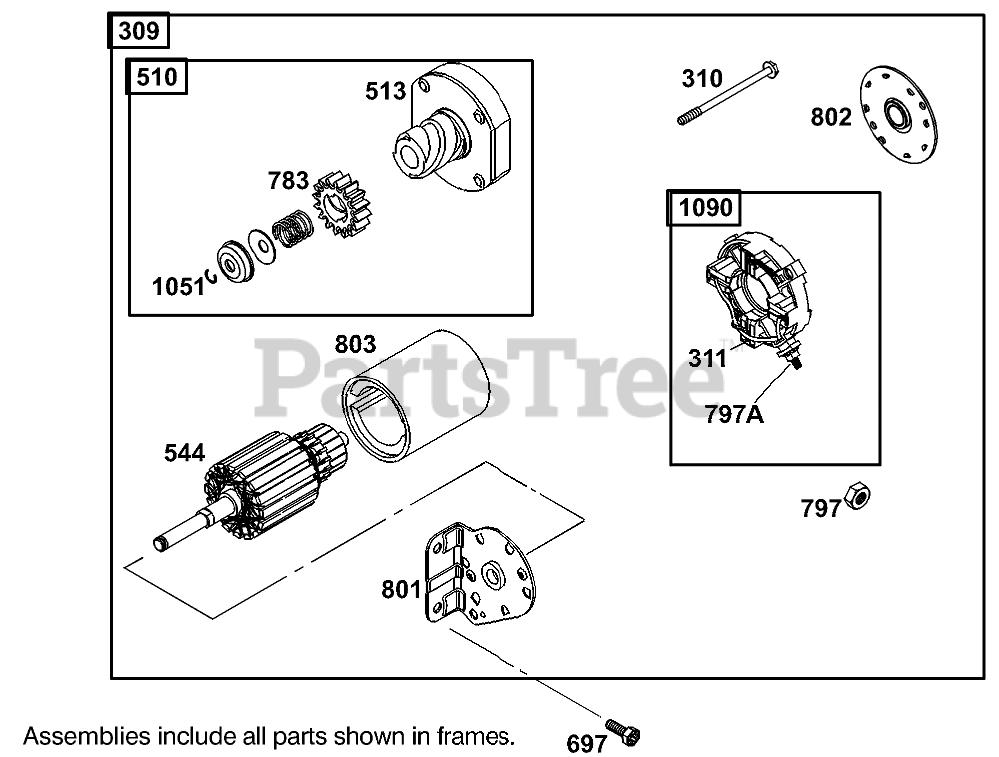

STARTER ASSEMBLY BRIGGS AND STRATTON 406777-0157-E1 Parts Diagram

  • Title

309

Briggs & Stratton 691262

Motor-Starter
(Superseded to 795121)

$143.99

$

In Stock, Qty 17

0

310

Briggs & Stratton 691263

Bolt

$3.49

$

Usually ships in 2-12 days

0

311

Briggs & Stratton 497608

Brush Set

$27.99

$

In Stock, only 4 left!

0

510

Briggs & Stratton 497606

Drive-Starter
(Superseded to 696541)

$90.99

$

In Stock, only 1 left!

0

513

Briggs & Stratton 398003

Clutch ASM
(Superseded to 692024)

$21.99

$

In Stock, only 1 left!

0

544

Starter Armature (Serviced By 691262 Starter Motor Only)

$

$

Not available

697

Briggs & Stratton 690372

Screw
(Superseded to 791680)

$3.99

$

In Stock, only 2 left!

0

783

Briggs & Stratton 693058

Gear-Pinion
(Superseded to 695708)

$6.99

$

In Stock, Qty 20+

0

797

Briggs & Stratton 92278

Nut-Hex
(Superseded to 691029)

$5.49

$

Usually ships in 2-12 days

0

797A

Briggs & Stratton 693167

Nut

$4.49

$

Usually ships in 2-12 days

0

801

Briggs & Stratton 691283

Cap-Drive

$83.99

$

Usually ships in 2-12 days

0

802

Briggs & Stratton 497607

Cap-End
(Superseded to 691286)

$26.99

$

Usually ships in 2-12 days

0

803

Housing-Starter (Serviced By 691262 Starter Motor Only)

$

$

Not available

1051

Briggs & Stratton 263080

Retainer
(Superseded to 691265)

$5.49

$

In Stock, Qty 7

0

1090

Briggs & Stratton 497605

Cap-End
(Superseded to 691293)

$29.99

$

In Stock, Qty 6

0
