74591 (DH 220) - Toro Lawn Tractor (SN: 260000001 - 260999999) (2006) CYLINDER ASSEMBLY BRIGGS AND STRATTON 441577-0120-E1 Parts Diagram

Lawn Tractor

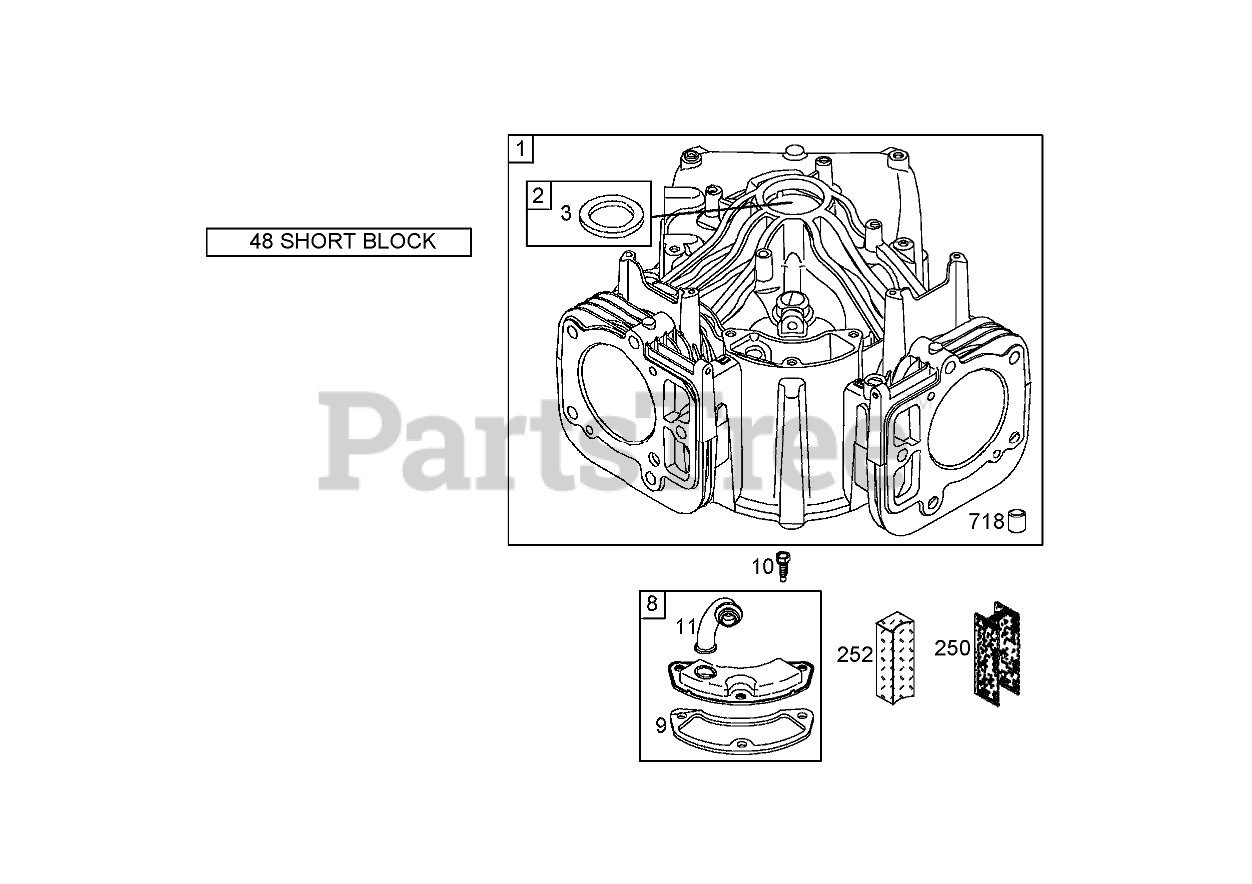

CYLINDER ASSEMBLY BRIGGS AND STRATTON 441577-0120-E1 Parts Diagram

  • Title

1

Briggs & Stratton 699753

Cylinder ASM
(Superseded to 594970)

Note: Obtain parts from www.briggsandstratton.com

$398.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 499585

Bushing and Seal Kit
(Superseded to 797673)

Note: Obtain parts from www.briggsandstratton.com

$18.99

$

In Stock, only 3 left!

0

3

Toro 391086s

Seal-Oil

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 391086s

Seal-Oil

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

8

Briggs & Stratton 792185

Breather ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

9

Briggs & Stratton 690937

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, only 1 left!

0

9

Briggs & Stratton 690937

Gasket-Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$8.49

$

In Stock, only 1 left!

0

10

Briggs & Stratton 691108

Screw

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 20+

0

11

Briggs & Stratton 690942

Tube-Breather
(Superseded to 792184)

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 2-12 days

0

48

Briggs & Stratton 698172

Short Block
(Superseded to 797093A)

Note: Obtain parts from www.briggsandstratton.com

$1334.99

$

Usually ships in 2-12 days

0

250

Briggs & Stratton 690957

Retainer-Breather

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, only 1 left!

0

252

Briggs & Stratton 690956

Collector-Oil
(Superseded to 794389)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, only 1 left!

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

Usually ships in 2-12 days

0
