74592 (DH 220) - Toro Lawn Tractor (SN: 270000001 - 270000651) (2007) Carburetor Assembly Briggs and Stratton 441677-0136-E1 Parts Diagram

Lawn Tractor

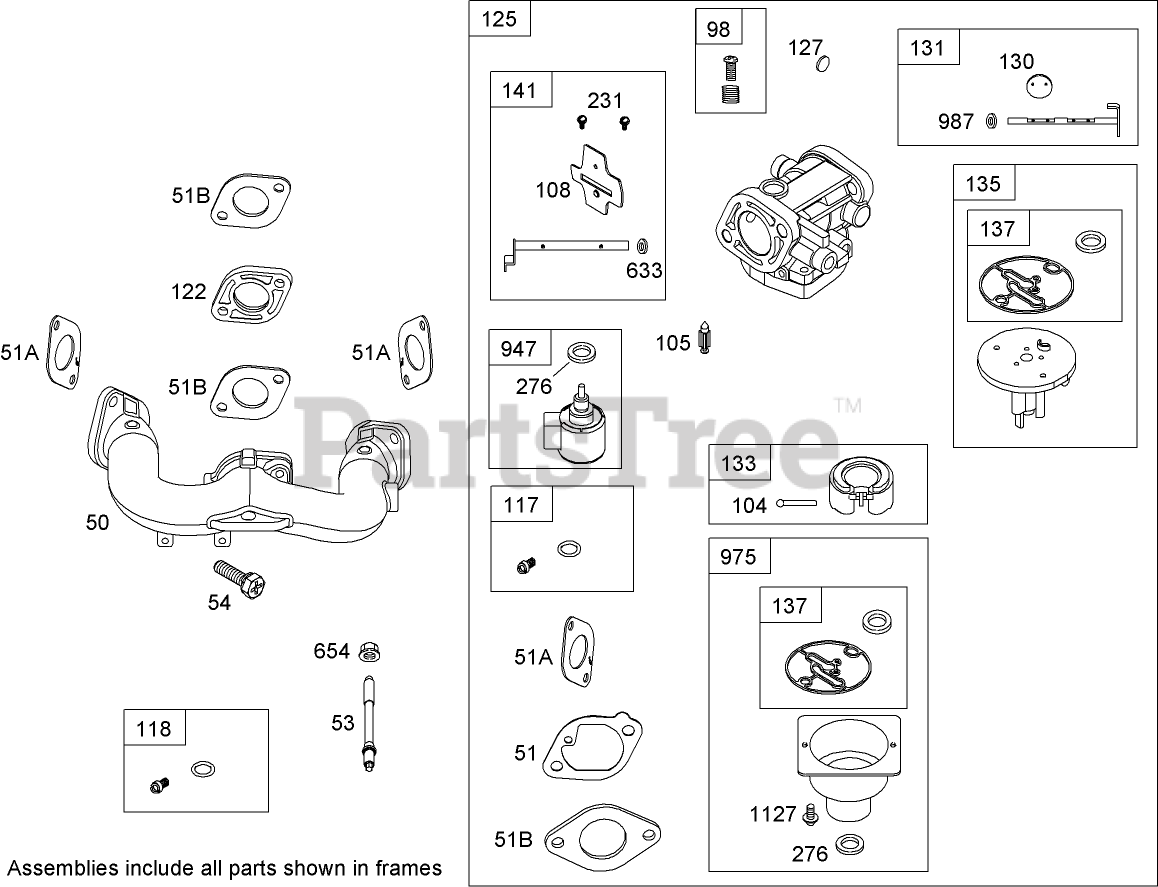

Carburetor Assembly Briggs and Stratton 441677-0136-E1 Parts Diagram

  • Title

50

Toro 699801

Manifold-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

51

Toro 699800

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51

Toro 699800

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

51

Toro 699800

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

51A

Toro 690949

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$4.49

$

Usually ships in 0 days

0

51A

Toro 690949

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.49

$

Usually ships in 0 days

0

51A

Toro 690949

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 0 days

0

51B

Toro 699803

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51B

Toro 699803

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

51B

Toro 699803

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

53

Toro 690951

Stud

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 0 days

0

54

Toro 699816

Screw (Intake Manifold)

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 0 days

0

98

Toro 699721

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$20.99

$

Usually ships in 0 days

0

104

Toro 694918

Pin-Hinge, Float

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 0 days

0

104

Toro 694918

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$10.99

$

Usually ships in 0 days

0

105

Toro 698537

Valve-Needle, Float

Note: Obtain parts from www.briggsandstratton.com

$24.99

$

Usually ships in 0 days

0

108

Toro 699808

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

117

Toro 791406

Jet-Main (Standard)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

118

Toro 699820

Jet-Main (High Altitude)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

122

Toro 699802

Spacer-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

125

Toro 699807

Carburetor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

127

Toro 699810

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 0 days

0

130

Toro 699809

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

131

Toro 699812

Throttle Shaft Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

133

Toro 694914

Carburetor Float ASM

Note: Obtain parts from www.briggsandstratton.com

$41.99

$

Usually ships in 0 days

0

135

Toro 792022

Tube-Transfer, Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

137

Toro 698781

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$14.99

$

Usually ships in 0 days

0

137

Toro 698781

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$14.99

$

Usually ships in 0 days

0

141

Toro 699811

Choke Shaft Kit

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

231

Toro 690718

Screw

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 0 days

0

276

Toro 695410

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 0 days

0

276

Toro 695410

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$9.99

$

Usually ships in 0 days

0

633

Toro 695414

Seal-Shaft, Choke and Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

633

Toro 695414

Seal-Shaft, Choke and Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

654

Toro 690958

Nut

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 0 days

0

947

Toro 699728

Solenoid-Fuel

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

975

Toro 699502

Bowl-Float

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

987

Toro 699813

Seal-Shaft, Throttle

Note: Obtain parts from www.briggsandstratton.com

$9.49

$

Usually ships in 0 days

0

987

Toro 699813

Seal-Shaft, Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$9.49

$

Usually ships in 0 days

0

1127

Toro 695407

Screw

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

Usually ships in 0 days

0
