74592 (DH 220) - Toro Lawn Tractor (SN: 280000001 - 280000528) (2008) Gasket Set Briggs and Stratton 441677-0136-E1 Parts Diagram

Lawn Tractor

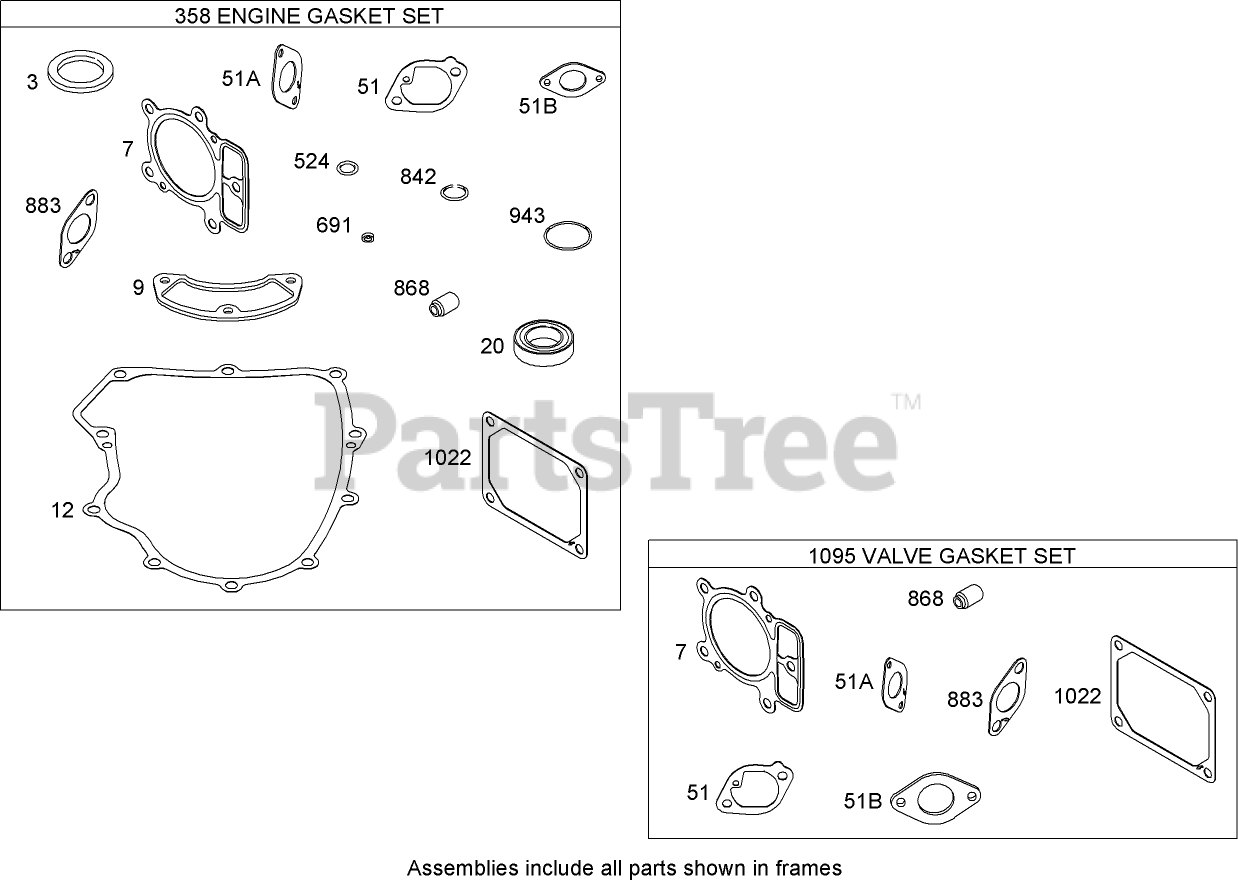

Gasket Set Briggs and Stratton 441677-0136-E1 Parts Diagram

  • Title

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 391086s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

7

Toro 693997

Gasket-Head, Cylinder

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

7

Toro 693997

Gasket-Head, Cylinder

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

7

Toro 693997

Gasket-Head, Cylinder

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

9

Toro 690937

Gasket-Breather

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

9

Toro 690937

Gasket-Breather

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

12

Toro 697227

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

12

Toro 697227

Gasket-Crankcase

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

20

Toro 791892

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

20

Toro 791892

Seal-Oil (PTO Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

51

Toro 699800

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

51

Toro 699800

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

51

Toro 699800

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51A

Toro 690949

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

51A

Toro 690949

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51A

Toro 690949

Gasket-Intake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

51B

Toro 699803

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51B

Toro 699803

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

51B

Toro 699803

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

358

Toro 699823

Engine Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

524

Toro 691032

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

524

Toro 691032

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

691

Toro 790574

Seal-Shaft, Governor

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

691

Toro 790574

Seal-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

842

Toro 691031

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

842

Toro 691031

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

868

Toro 690968

Seal-Valve

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

868

Toro 690968

Seal-Valve

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

868

Toro 690968

Seal-Valve

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

883

Toro 690970

Gasket-Exhaust

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

943

Toro 690589

Seal-O Ring

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

943

Toro 690589

Seal-O Ring

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1022

Toro 690971

Gasket-Cover, Rocker

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1022

Toro 690971

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

1022

Toro 690971

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

1095

Toro 699822

Valve Gasket Set

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
