74592 (DH 220) - Toro Lawn Tractor (SN: 290000001 - 290999999) (2009) ELECTRICAL STARTER ASSEMBLY Parts Diagram

Lawn Tractor

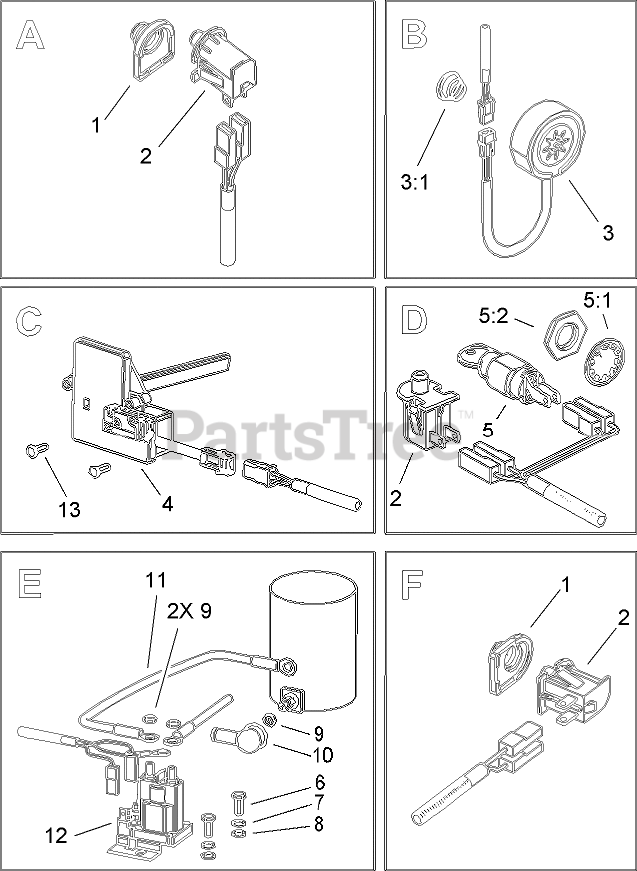

ELECTRICAL STARTER ASSEMBLY Parts Diagram

  • Title

1

Toro 104-3178

COVER-PROTECTIVE

$

$

Not available

2

Toro 104-3179

SWITCH-DELTA
(Superseded to 82-2190)

$14.99

$

In Stock, Qty 20+

0

3

Toro 99-8090

MAGNET ASM

$301.99

$

Usually ships in 3-6 days

0

3:1

Toro 93-6601

SPRING-COMPRESSION

$2.49

$

Usually ships in 3-6 days

0

4

Toro 104-3185

SWITCH-OMRON

$

$

Not available

5

Toro 46-5780

STARTER SWITCH ASM

$29.99

$

In Stock, Qty 15

0

5:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 13

0

5:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 18

0

6

Toro 33113-012

SCREW-HH

$0.99

$

Usually ships in 3-6 days

0

7

Toro 104-3186

WASHER-SPRING

$

$

Currently unavailable

8

Toro 33093-00

WASHER-FLAT

$0.99

$

Usually ships in 3-6 days

0

9

Toro 32128-32

NUT-HHF

$2.99

$

In Stock, Qty 8

0

10

Toro 104-3187

BOOT-RUBBER

$

$

Currently unavailable

11

Toro 104-3188

LEAD-STARTER, ELECTRIC

$

$

Not available

12

Toro 104-3189

Solenoid
(Superseded to 740207)

$34.99

$

In Stock, Qty 11

0

13

Toro 104-3349

Screw
(Superseded to 104-2977)

$

$

Not available
