74601 (17K-44 ZX) - Toro 44" TimeCutter Zero-Turn Mower (SN: 230000001 - 230999999) (2003) Air Intake/Filtration Assembly Kohler CV 490S-27503 Parts Diagram

44" TimeCutter Zero-Turn Mower

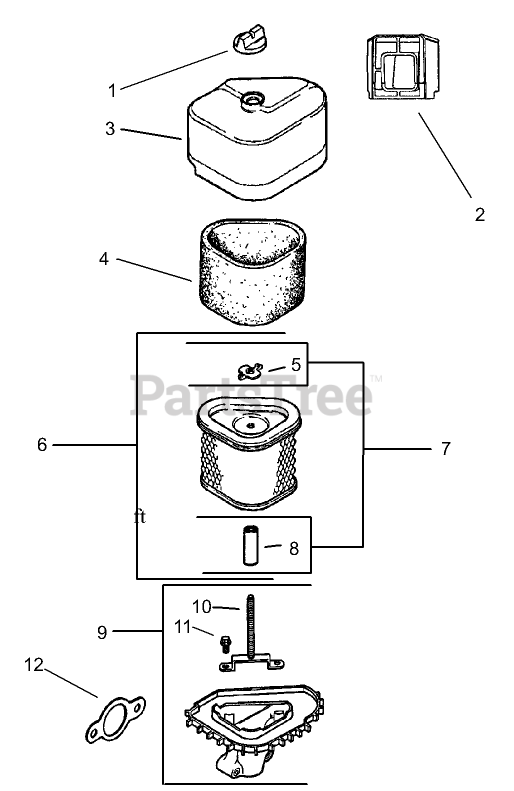

Air Intake/Filtration Assembly Kohler CV 490S-27503 Parts Diagram

  • Title

1

Toro 25 341 03-S

Knob-Cover

Note: Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro 12 281 01-S

Duct, air

Note: Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro 12 096 24-S

Cover-Air Cleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro 12 083 12-S

Element-Precleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable

5

Toro 12 100 08-S

Nut-Wing

Note: Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro 12 083 10-S

Element-Air Cleaner (Incl 5, 7 8 )

Note: Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro 12 743 12-S

Kit-Air Cleaner Seal (Incl 5 8)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 12 032 11-S

Seal

Note: Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 12 094 07-S

Base-Air Cleaner (Incl10 11)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro 12 072 04-S

Stud

Note: Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro 12 086 01-S

Screw

Note: Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 12 041 02-S

Gasket-Base, Air Cleaner

Note: Obtain Parts From Kohler

$

$

Currently unavailable
