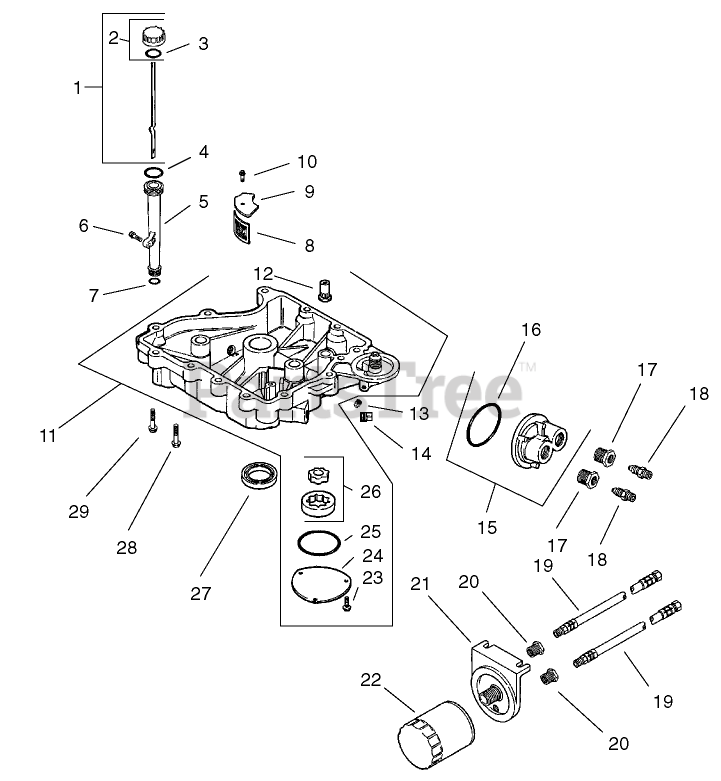

74601 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 210000001 - 210999999) (2001) Oil Pan / Lubrication Assembly Kohler CV 490-27503 Parts Diagram

44" TimeCutter Zero-Turn Mower

Oil Pan / Lubrication Assembly Kohler CV 490-27503 Parts Diagram

  • Title

1

Toro 12 038 02-S

Dipstick (Includes 2, 3)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro 24 755 46-S

OIL FILL CAP KIT (YELLOW)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro 12 153 03-S

O-Ring

Note: Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro 12 153 02-S

O-RING

Note: Obtain Parts From Kohler

$

$

Currently unavailable

5

Toro 12 123 04-S

OIL FILL TUBE KIT

Note: Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro M-545020-S

SCREW-FLANGE, THREAD FORMING (M5X.8X20)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro 12 153 01-S

O-RING

Note: Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 25 162 07-S

Screen-Pickup, Oil

Note: Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 12 096 03-S

Cover-Screen, Oil Pickup

Note: Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro 12 199 50-S

Pan-Oil (incl. 12, 16-19)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 25 462 09-S

Valve-Relief, Oil Pressure

Note: Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro 25 139 52-S

Plug-Pipe (1/8in)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

14

Toro 25 139 57-S

PLUG-PIPE, SQ HD (3/8)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

15

Toro 24 029 02-S

Adapter, oil filter (Includes 16)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

16

Toro 24 153 13-S

O-Ring

Note: Obtain Parts From Kohler

$

$

Currently unavailable

17

Toro 25 158 10-S

Bushing, reducing 7/8x1/4x1/2 N.P.T.F.

Note: Obtain Parts From Kohler

$

$

Currently unavailable

18

Toro 52 136 02-S

Nipple-Metallic

Note: Obtain Parts From Kohler

$

$

Currently unavailable

19

Toro 52 326 11-S

Hose, oil (red tracer) (2) 1/8-27 N.P.T.F. male coupling, 1/4-18 N.P.S.M. female coupling x 23in long

Note: Obtain Parts From Kohler

$

$

Currently unavailable

20

Toro 25 158 15-S

Bushing, reducing 1/8x1/4 N.P.T.F.

Note: Obtain Parts From Kohler

$

$

Currently unavailable

21

Toro 12 029 02-S

Adapter, oil filter

Note: Obtain Parts From Kohler

$

$

Currently unavailable

22

Toro 12 050 01-S

See Supercession: 98020
(Superseded to 98020)

Note: Obtain Parts From Kohler

$13.99

$

In Stock, Qty 20+

0

23

Toro M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

24

Toro 12 096 34-S

Cover-Pump, Oil

Note: Obtain Parts From Kohler

$

$

Currently unavailable

25

Toro 12 153 06-S

O-Ring (Oil Pump Cover)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

26

Toro 12 393 01-S

Oil Pump ASM

Note: Obtain Parts From Kohler

$

$

Currently unavailable

27

Toro 12 032 03-S

Seal-Oil

Note: Obtain Parts From Kohler

$

$

Currently unavailable

28

Toro 24 086 16-S

Screw-HF (M8x1.25x45)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

29

Toro 24 086 17-S

SCREW-FLANGE (M8X1.25X45)

Note: Obtain Parts From Kohler

$

$

Currently unavailable
