74601 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000913 - 220999999) (2002) Fuel System Assembly Kohler CV 490S-27503 2 Parts Diagram

44" TimeCutter Zero-Turn Mower

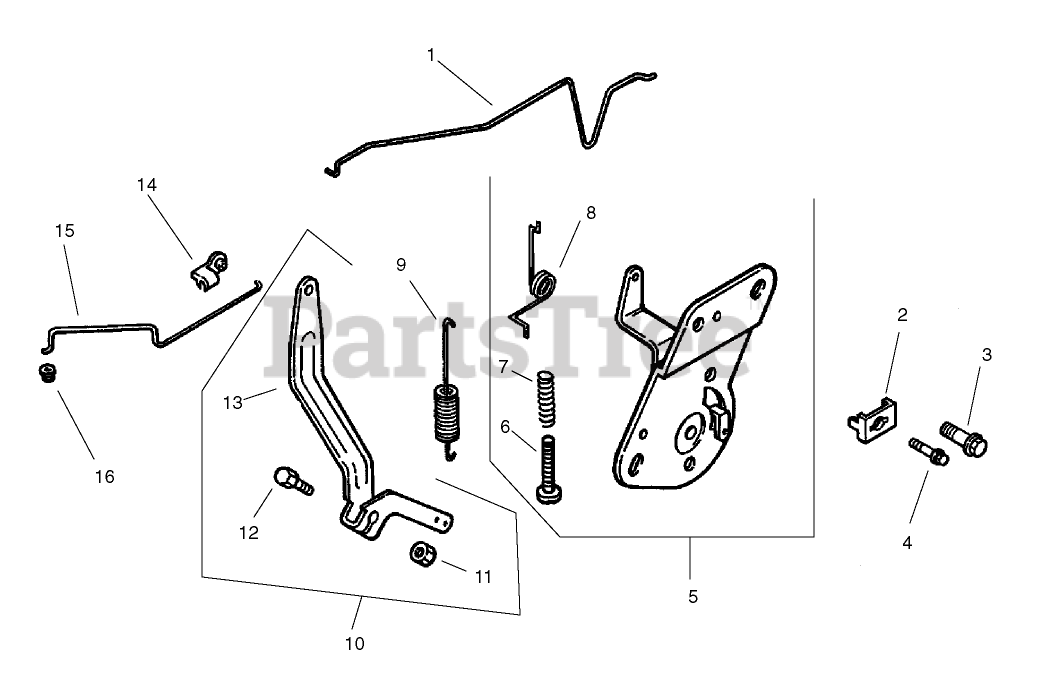

Fuel System Assembly Kohler CV 490S-27503 2 Parts Diagram

  • Title

Toro X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

Toro X-22-11-S

Washer-Lock, Internal Tooth (1/4)

Note: Used to attach carburetor ground lead to carburetor baffle.

$

$

Currently unavailable

1

Toro 12 079 11-S

Linkage-Choke

Note: Obtain Parts From Kohler

$

$

Currently unavailable

2

Toro 12 237 01-S

CLAMP-CABLE

Note: Obtain Parts From Kohler

$

$

Currently unavailable

3

Toro M-545016-S

SCREW-FLANGE, THREAD FORMING (M5X0.8X16)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

4

Toro M-664020-S

Screw-Socket, 6 Lobed (Thread Forming, M6x1.0x20)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

5

Toro 12 536 01-S

Control, speed assembly (Includes 6-8)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

6

Toro M-443025-S

Screw-SPH,M4x0.7x25

Note: Obtain Parts From Kohler

$

$

Currently unavailable

7

Toro 12 089 11-S

Spring-Control, Speed

Note: Obtain Parts From Kohler

$

$

Currently unavailable

8

Toro 12 089 23-S

Spring-Return, Choke

Note: Obtain Parts From Kohler

$

$

Currently unavailable

9

Toro 12 089 19-S

Spring-Governor

Note: Obtain Parts From Kohler

$

$

Currently unavailable

10

Toro 12 755 83-S

Kit, Governor Lever (Incl 10-12)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

11

Toro 12 100 07-S

Nut-Flange, Hex (1/4-20)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

12

Toro 52 211 04-S

Bolt-Square Neck, Round Head (1/4-20x1)

Note: Obtain Parts From Kohler

$

$

Currently unavailable

13

Toro 12 090 28-S

Lever-Governor

Note: Obtain Parts From Kohler

$

$

Currently unavailable

14

Toro 25 158 11-S

BUSHING-RETAINING, LINKAGE

Note: Obtain Parts From Kohler

$

$

Currently unavailable

15

Toro 12 079 10-S

Linkage-Throttle

Note: Obtain Parts From Kohler

$

$

Currently unavailable

16

Toro 25 158 08-S

BUSHING-LINKAGE, THROTTLE

Note: Obtain Parts From Kohler

$

$

Currently unavailable
