74601 (Z 17-44) - Toro 44" TimeCutter Zero-Turn Mower (SN: 220000913 - 220999999) (2002) STARTING SYSTEM ASSEMBLY KOHLER CV 490S-27503 Parts Diagram

44" TimeCutter Zero-Turn Mower

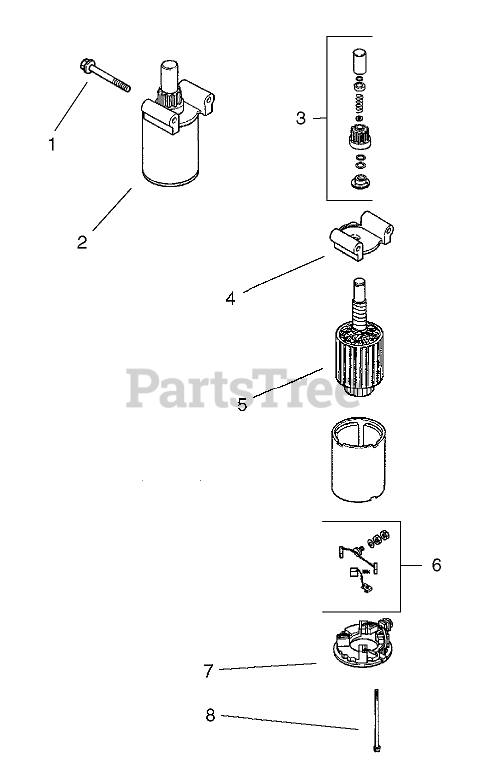

STARTING SYSTEM ASSEMBLY KOHLER CV 490S-27503 Parts Diagram

  • Title

1

Kohler M-839070-S

Screw-HF (M8x1.25x70)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.49

$

Usually ships in 2-5 days

0

2

Kohler 12 098 15-S

Starter assembly (Includes 3-8)
(Superseded to 12 098 22-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$291.99

$

In Stock, only 3 left!

0

3

Kohler 12 755 53-S

Drive Kit

Note: Call PartsTree Customer Service for more information on Kohler Parts

$227.99

$

Usually ships in 2-5 days

0

4

Kohler 12 227 19-S

Cap-End, Drive

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

5

Kohler 12 170 05-S

Armature

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

6

Kohler 12 221 01-S

Brush ASM

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

7

Kohler 12 227 13-S

Commutator-Cap, End

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

8

Kohler 12 211 01-S

Bolt

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available
