74602 (18-44 ZX) - Toro 44" TimeCutter Zero-Turn Mower (SN: 240000001 - 240999999) (2004) CRANKCASE ASSEMBLY BRIGGS AND STRATTON 31M777-0167-E1 Parts Diagram

44" TimeCutter Zero-Turn Mower

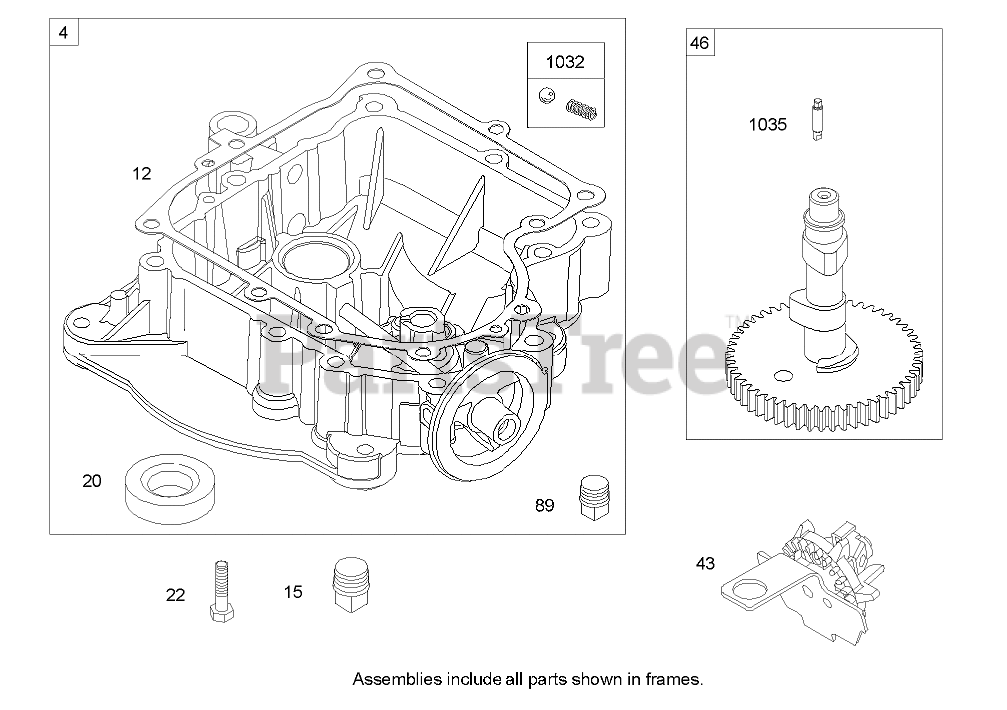

CRANKCASE ASSEMBLY BRIGGS AND STRATTON 31M777-0167-E1 Parts Diagram

  • Title

4

Briggs & Stratton 697188

Sump-Engine
(Superseded to 592849)

Note: Obtain parts from www.briggsandstratton.com

$275.99

$

In Stock, only 3 left!

0

12

Briggs & Stratton 697110

Gasket-Crankcase

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

12

Briggs & Stratton 697110

Gasket-Crankcase

Note: Included in Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 20+

0

15

Briggs & Stratton 690946

Plug-Drain, Oil

Note: Obtain parts from www.briggsandstratton.com

$6.49

$

In Stock, Qty 8

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

In Stock, Qty 20+

0

20

Briggs & Stratton 690947

Seal-Oil
(Superseded to 795387)

Note: Included in Gasket Set-Ref. 358.

$7.99

$

In Stock, Qty 20+

0

22

Briggs & Stratton 692125

Screw

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, only 3 left!

0

43

Briggs & Stratton 691968

Slinger-Governor, Oil

Note: Obtain parts from www.briggsandstratton.com

$41.99

$

In Stock, Qty 13

0

46

Briggs & Stratton 698492

Camshaft
(Superseded to 793880)

Note: Obtain parts from www.briggsandstratton.com

$115.99

$

In Stock, Qty 20+

0

89

Briggs & Stratton 690283

Plug-Oil
(Superseded to 794903)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 8

0

1032

Briggs & Stratton 491710

Ball?Pump, Oil

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

Usually ships in 2-12 days

0

1035

Briggs & Stratton 693784

Shaft-Pump, Oil
(Superseded to 794644)

Note: Obtain parts from www.briggsandstratton.com

$38.99

$

In Stock, only 3 left!

0
