74603 (ZX 440) - Toro 44" TimeCutter Zero-Turn Mower (SN: 260000001 - 260999999) (2006) 44 INCH DECK ASSEMBLY Parts Diagram

44" TimeCutter Zero-Turn Mower

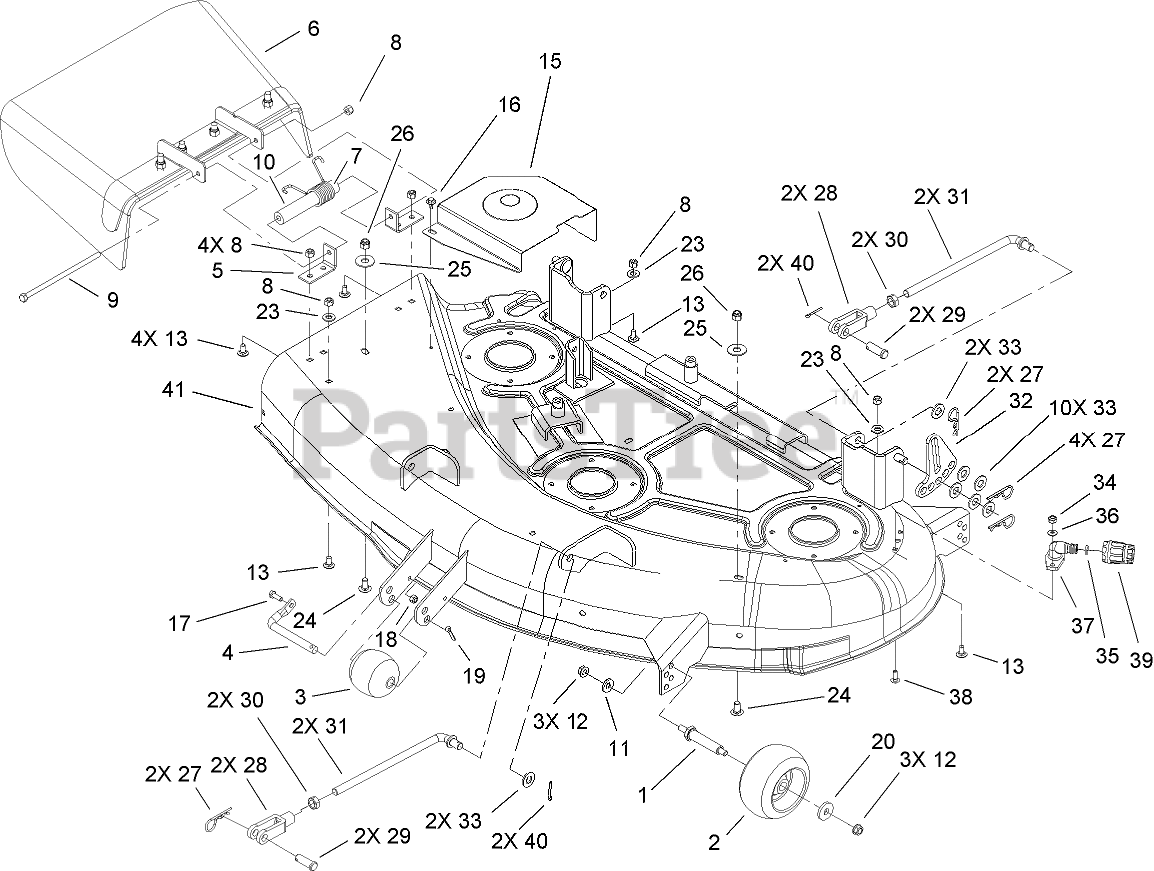

44 INCH DECK ASSEMBLY Parts Diagram

  • Title

1

Toro 99-2842

SPACER
(Superseded to 126-2928)

$26.99

$

In Stock, Qty 20+

0

2

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

0

3

Toro 29-4820

ROLLER

$16.99

$

In Stock, only 4 left!

0

4

Toro 118960-03

Shaft-Roller

$37.99

$

In Stock, only 3 left!

0

5

Toro 108-6196-03

BRACKET-PIVOT, DEFLECTOR

$16.99

$

In Stock, only 1 left!

0

6

Toro 108-8591

DEFLECTOR ASM

$230.99

$

Usually ships in 3-6 days

0

7

Toro 108-4052

SPRING-TORSION

$23.99

$

In Stock, Qty 6

0

8

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

9

Toro 108-8539

BOLT-HH

$14.99

$

Usually ships in 3-6 days

0

10

Toro 108-7159

SPACER-DEFLECTOR

$10.99

$

Usually ships in 3-6 days

0

11

Toro 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

12

Toro 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

13

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 13

0

14

Toro 110-1877-03

COVER-BELT, LH

Note: Not illustrated

$

$

Not available

15

Toro 110-1878-03

COVER-BELT, RH

$

$

Not available

16

Toro 46-8560

SCREW-HHFTF

$1.99

$

In Stock, Qty 20+

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

19

Toro 3272-21

PIN-COTTER

$3.49

$

In Stock, only 3 left!

0

20

Toro 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

23

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

24

Toro 3231-21

SCREW-CARR

$1.49

$

In Stock, only 1 left!

0

25

Toro 3256-5

WASHER-FLAT

$0.99

$

In Stock, only 4 left!

0

26

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

27

Toro 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

28

Toro 100-7338

CLEVIS

$58.99

$

In Stock, Qty 5

0

29

Toro 104-3634

PIN-CLEVIS

$19.99

$

In Stock, Qty 5

0

30

Toro 3220-5

NUT-JAM

$1.99

$

In Stock, Qty 9

0

31

Toro 104-8047

ROD-TRUNION
(Superseded to 131-3945)

$42.99

$

In Stock, Qty 20+

0

32

Toro 104-3699-01

LINK-HOC, ADJUSTING

$62.99

$

In Stock, only 2 left!

0

33

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 3296-16

NUT-LOCK, NI

$1.49

$

In Stock, Qty 6

0

35

Toro 46-6290

O-RING

$2.99

$

In Stock, Qty 14

0

36

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

37

Toro 95-2747

FITTING-WASHOUT
(Superseded to 133-9289)

$6.49

$

In Stock, Qty 13

0

38

Toro 3229-1

BOLT-CARR

$3.99

$

In Stock, Qty 11

0

39

Toro 95-3270

CONNECTOR-HOSE

$22.99

$

In Stock, Qty 19

0

40

Toro 3272-10

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

41

Toro 105-1948

44 INCH DECK ASM

$

$

Not available
