74626 (SS 4260) - Toro 42" TimeCutter Zero-Turn Mower (SN: 311000001 - 311999999) (2011) FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

42" TimeCutter Zero-Turn Mower

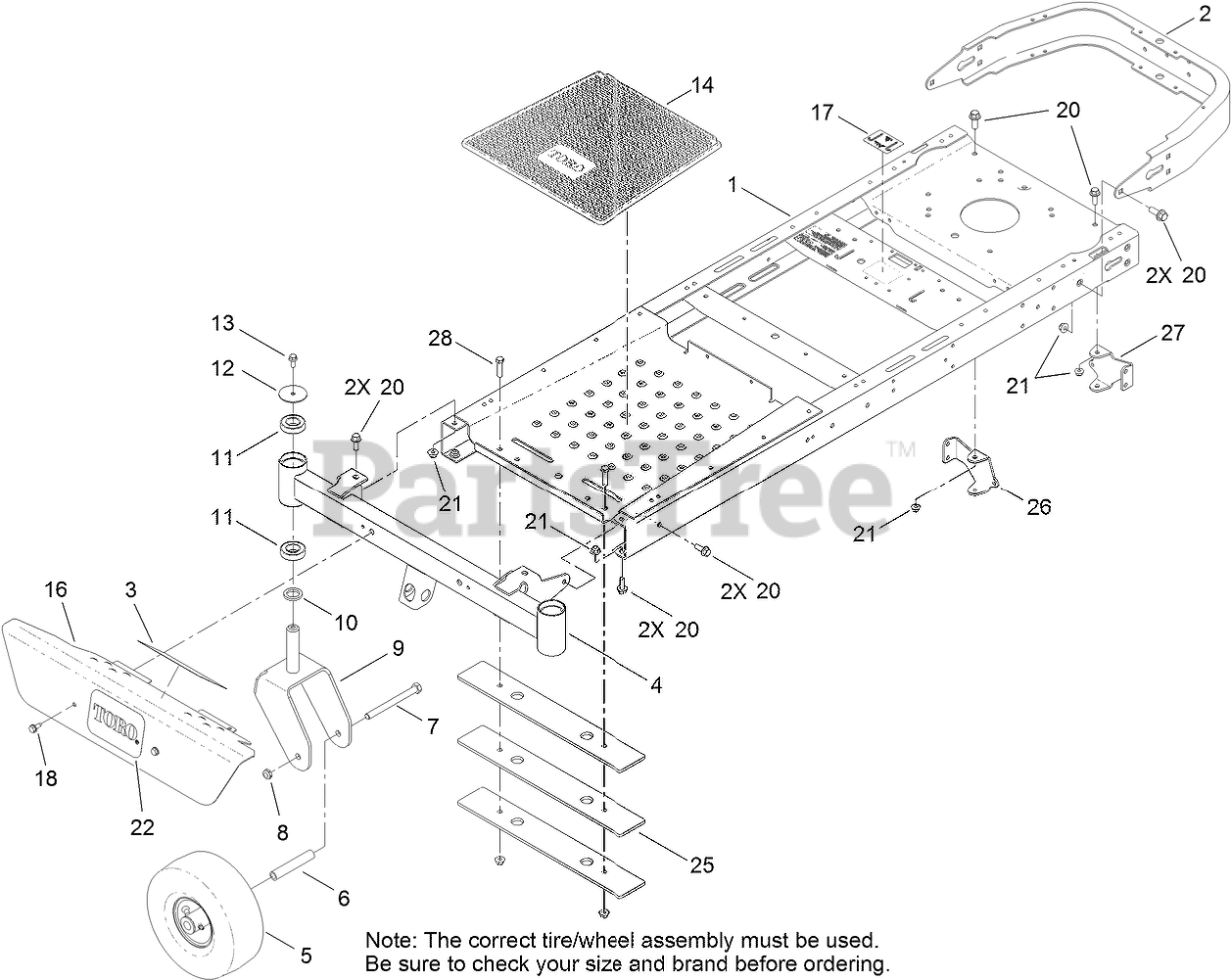

FRAME, FRONT AXLE AND CASTER WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 117-7260-01

FRAME ASM
(Superseded to 121-2970-01)

$464.99

$

Usually ships in 3-6 days

0

2

Toro 110-1920-01

BUMPER-REAR

$120.99

$

Usually ships in 3-6 days

0

3

Toro 120-2239

DECAL-DANGER
(Superseded to 132-0869)

$9.49

$

Usually ships in 3-6 days

0

4

Toro 120-5516-01

AXLE-FRONT

$310.99

$

Usually ships in 3-6 days

0

5

Toro 110-6785

CASTER WHEEL ASM (Kenda)

$83.99

$

In Stock, only 4 left!

0

5

Toro 120-5515

CASTER WHEEL ASM (CST)

$91.99

$

In Stock, Qty 19

0

6

Toro 104-3667

BUSHING-SPANNER

$19.99

$

In Stock, Qty 20+

0

7

Toro 325-22

SCREW-HH

$8.49

$

In Stock, only 1 left!

0

8

Toro 3296-45

NUT-LOCK, NI

$4.49

$

In Stock, Qty 18

0

9

Toro 120-2266-01

FORK-CASTER

$88.99

$

Usually ships in 3-6 days

0

10

Toro 117-7394

WASHER-THRUST

$2.99

$

In Stock, Qty 6

0

11

Toro 109-3678

BEARING-BALL

$14.99

$

In Stock, Qty 20+

0

12

Toro 119-8915

WASHER

$2.99

$

In Stock, Qty 5

0

13

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 5

0

14

Toro 120-5455

MAT-FLOOR
(Superseded to 132-6895)

$102.99

$

Usually ships in 3-6 days

0

16

Toro 117-7332-03

FOOTREST
(Superseded to 132-0890)

$211.99

$

Usually ships in 3-6 days

0

17

Toro 120-5465

DECAL-TRANSPORT

$

$

Not available

18

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 3234-42

SCREW-HHF

$3.49

$

In Stock, Qty 17

0

21

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

22

Toro 105-8278

DECAL

$10.99

$

In Stock, only 4 left!

0

25

Toro 120-2267-01

PLATE-WEIGHT

$28.99

$

Usually ships in 3-6 days

0

26

Toro 117-7459-01

MOUNT-HYDRO, REAR (RH)

$17.99

$

Usually ships in 3-6 days

0

27

Toro 117-7460-01

MOUNT-HYDRO, REAR (LH)

$17.99

$

Usually ships in 3-6 days

0

28

Toro 323-8

SCREW-HH

$1.49

$

In Stock, Qty 20+

0
