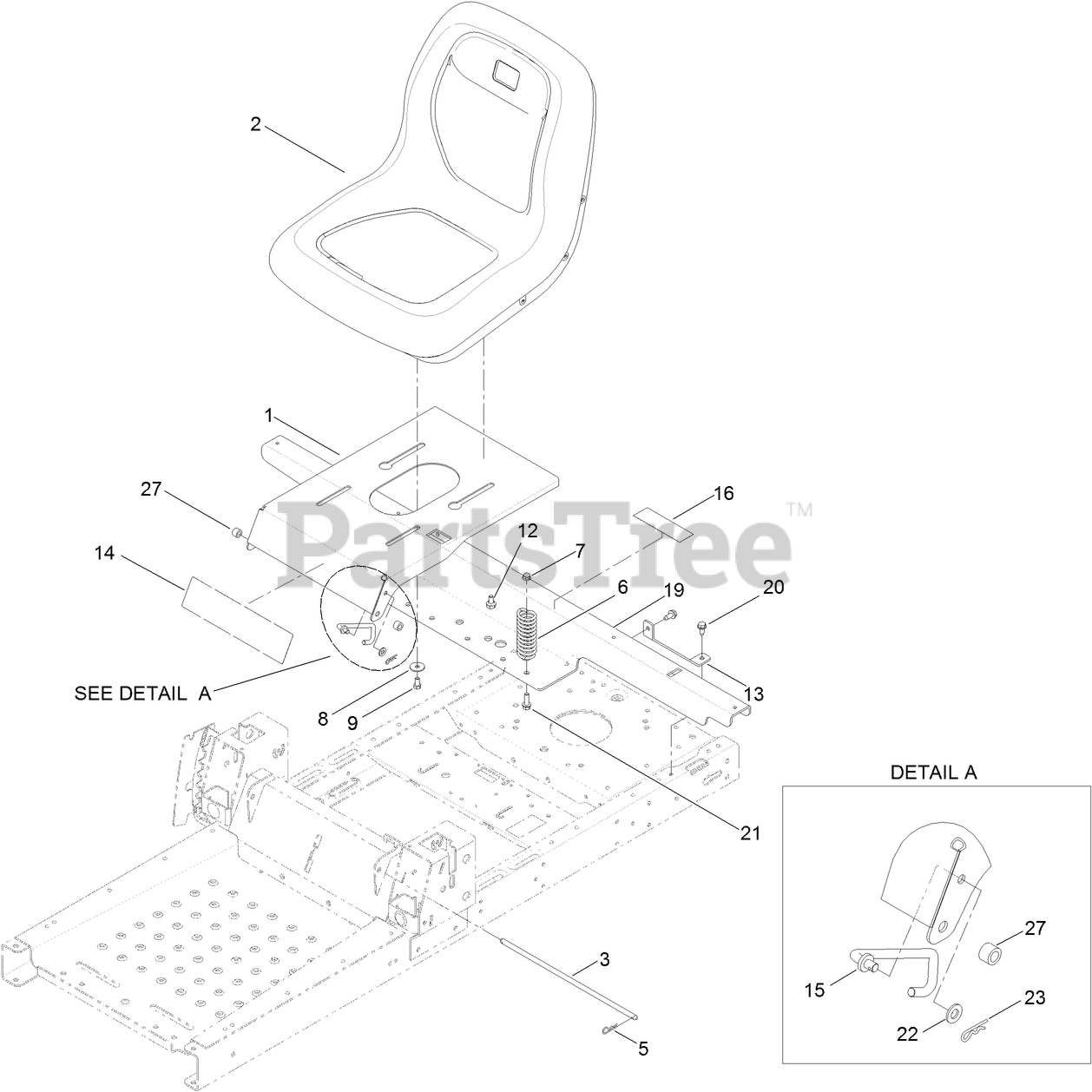

74637 (SS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 314000001 - 314999999) (2014) Seat Assembly Parts Diagram

50" TimeCutter Zero-Turn Mower

Seat Assembly Parts Diagram

  • Title

1

Toro 119-3391-01

See Supercession: 133-4468
(Superseded to 133-4468)

$111.99

$

In Stock, only 1 left!

0

2

Toro 119-8829

SEAT-18 INCH

$394.99

$

Usually ships in 3-6 days

0

3

Toro 115-4966

ROD-STOP

$22.99

$

Usually ships in 3-6 days

0

5

Toro 3290-250

PIN-COTTER

$6.99

$

Usually ships in 3-6 days

0

6

Toro 92-7054

SPRING-COMPRESSION

$25.99

$

In Stock, Qty 8

0

7

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

8

Toro 5-4460

WASHER-PIVOT

$8.49

$

In Stock, Qty 20+

0

9

Toro 322-2

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

12

Toro 37-8771

BOLT-SHOULDER,HFH

$5.99

$

In Stock, Qty 11

0

13

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.99

$

Usually ships in 3-6 days

0

14

Toro 119-8903

DECAL-TIMECUTTER

$25.99

$

Usually ships in 3-6 days

0

15

Toro 119-8972

STOP-SEAT

$8.49

$

Usually ships in 3-6 days

0

16

Toro 106-8717

DECAL-SERVICE, CE

$8.99

$

Usually ships in 3-6 days

0

19

Toro 119-3414-03

SUPPORT-POD
(Superseded to 131-1039-03)

$135.99

$

Usually ships in 3-6 days

0

20

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

21

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, only 1 left!

0

22

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

23

Toro 3290-307

See Supercession: 1-806003
(Superseded to 1-806003)

$1.99

$

In Stock, Qty 20+

0

27

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

0
