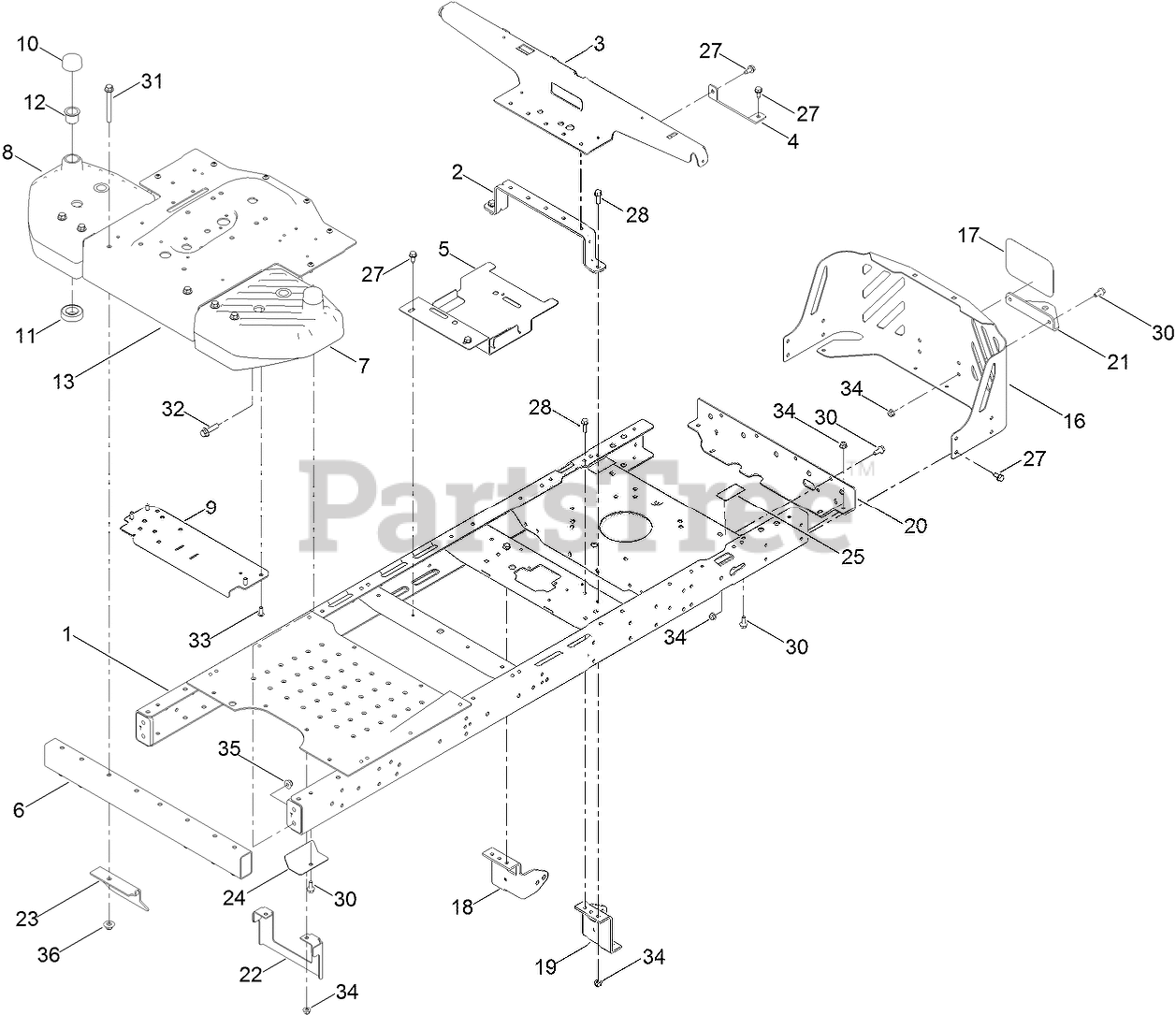

74676 (SW 4200) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 402262593) Frame Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

Frame Assembly Parts Diagram

  • Title

1

Toro 130-0804-01

FRAME ASM

$500.99

$

Usually ships in 3-6 days

0

2

Toro 135-0686-03

BRACE-SEAT, REAR (NARROW)

$20.99

$

Usually ships in 3-6 days

0

3

Toro 131-1040-03

SUPPORT-POD

$108.99

$

Usually ships in 3-6 days

0

4

Toro 119-3431-03

SUPPORT-TANK, REAR

$6.99

$

Usually ships in 3-6 days

0

5

Toro 135-0507-03

BRACKET-BATTERY

$28.99

$

Usually ships in 3-6 days

0

6

Toro 130-6902-03

TUBE-FRONT, NARROW

$86.99

$

Usually ships in 3-6 days

0

7

Toro 130-0748-05

HOUSING-SPINDLE, LH

$347.99

$

Usually ships in 3-6 days

0

8

Toro 130-0746-05

HOUSING-SPINDLE, RH

$347.99

$

Usually ships in 3-6 days

0

9

Toro 130-6983-03

PLATE-BRIDGE, NARROW

$59.99

$

Usually ships in 3-6 days

0

10

Toro 130-7015

CAP-CASTER

$1.99

$

Usually ships in 3-6 days

0

11

Toro 109-3678

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

12

Toro 126-1963

BUSHING-PIVOT

$7.99

$

In Stock, Qty 20+

0

13

Toro 132-9345-05

PAN-STEER, FRONT

$137.99

$

Usually ships in 3-6 days

0

16

Toro 127-3353-03

GUARD-ENGINE, NARROW

$130.99

$

In Stock, only 1 left!

0

17

Toro 99-4693

DECAL

$26.99

$

In Stock, Qty 7

0

18

Toro 137-7020-01

MOUNT-HYDRO, FRONT (RIGHT)

$17.99

$

In Stock, only 1 left!

0

19

Toro 137-7021-01

MOUNT-HYDRO, FRONT (LEFT)
(Superseded to 139-3211-01)

$16.99

$

Usually ships in 3-6 days

0

20

Toro 130-6950-01

CROSSMEMBER-REAR, NARROW

$43.99

$

Usually ships in 3-6 days

0

21

Toro 117-1232-03

BRACKET-HITCH

$31.99

$

In Stock, only 2 left!

0

22

Toro 132-0941-03

BRACKET-UPSTOP

$20.99

$

Usually ships in 3-6 days

0

23

Toro 132-0868-03

GUARD-FRONT

$12.99

$

Usually ships in 3-6 days

0

24

Toro 132-0901-03

PLATE-GUARD

$9.49

$

Usually ships in 3-6 days

0

25

Toro 121-2989

DECAL-BYPASS

$5.49

$

In Stock, only 1 left!

0

27

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

28

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

30

Toro 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

31

Toro 115-7660

SCREW-HHF

$8.49

$

In Stock, only 2 left!

0

32

Toro 114-4681

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

33

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 12

0

34

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

35

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

36

Toro 109-6658

NUT-FLANGE, NI

$1.49

$

In Stock, Qty 20+
