74680 (SW 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 315000001 - 315999999) (2015) MOTION CONTROL ASSEMBLY Parts Diagram

50" TimeCutter Zero-Turn Mower

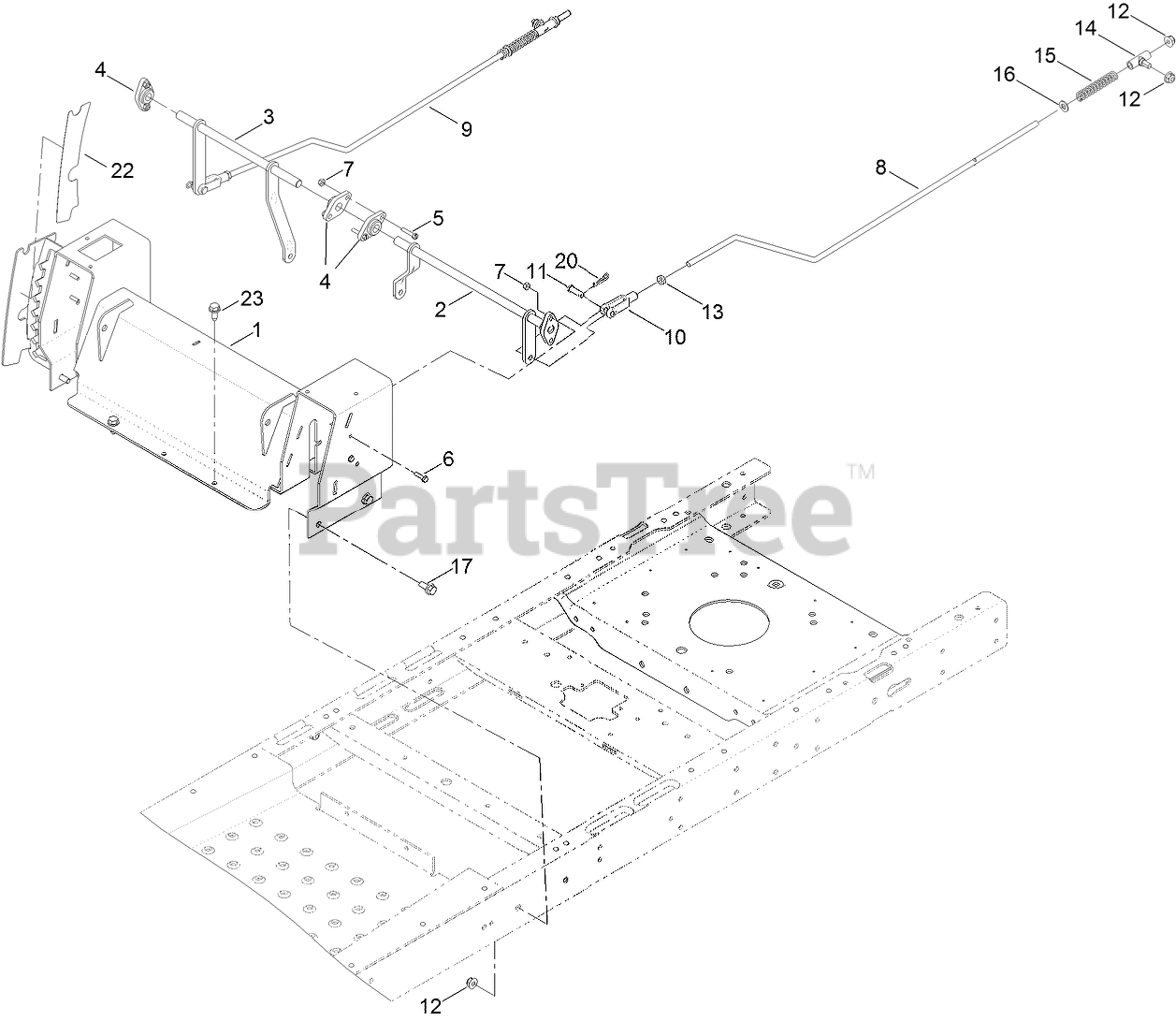

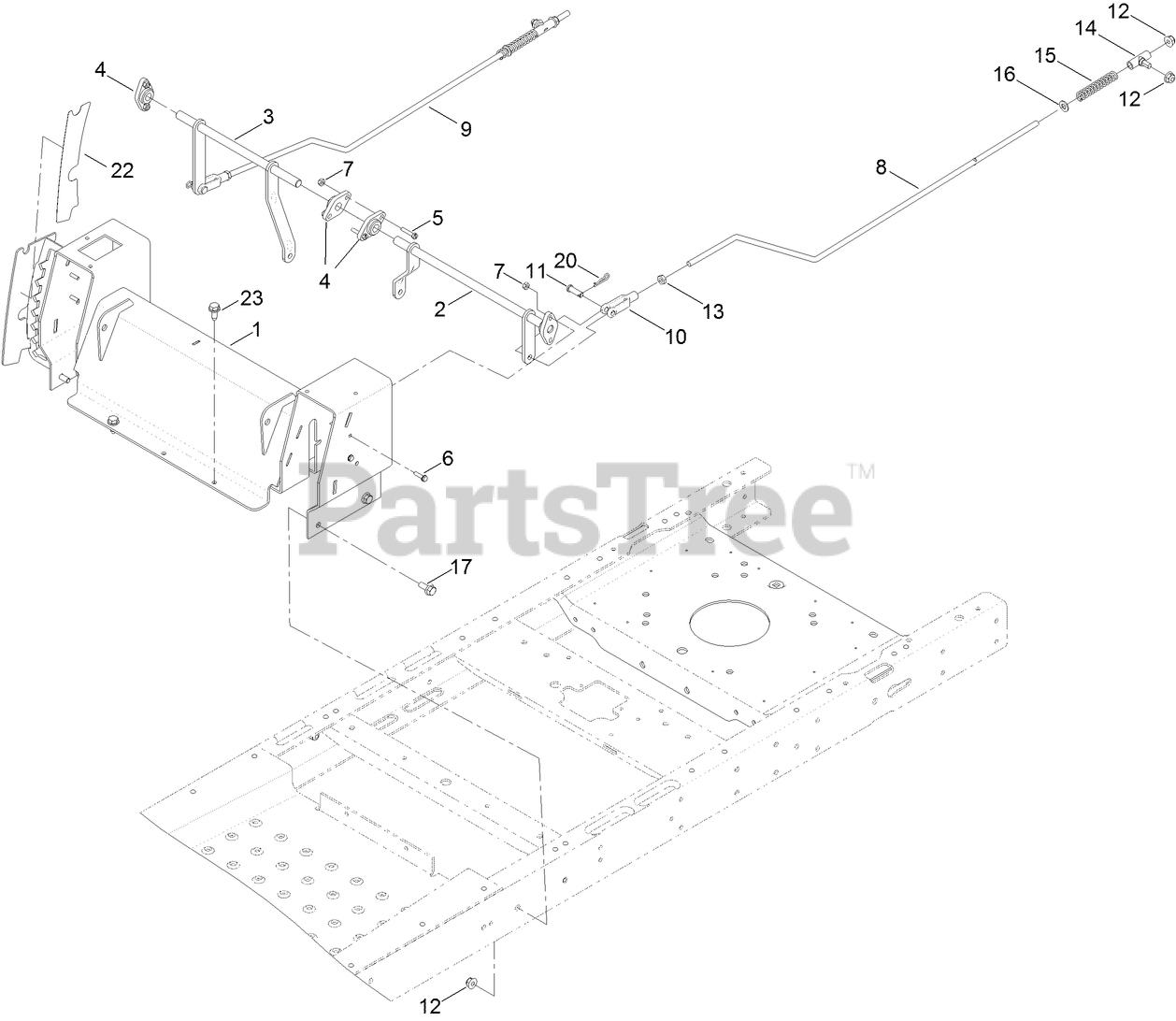

MOTION CONTROL ASSEMBLY Parts Diagram

  • Title

1

Toro 125-5458-03

BOX-CONTROL, WIDE

$183.99

$

Usually ships in 3-6 days

0

2

Toro 127-0138

BELLCRANK-LH, WIDE

$47.99

$

Usually ships in 3-6 days

0

3

Toro 127-0134

BELLCRANK-RH, WIDE

$47.99

$

Usually ships in 3-6 days

0

4

Toro 127-0146

BEARING-FLANGE

$7.99

$

Usually ships in 3-6 days

0

5

Toro 32105-12

SCREW

$2.99

$

In Stock, only 4 left!

0

6

Toro 3290-126

SCREW-HWH

$2.99

$

Usually ships in 3-6 days

0

7

Toro 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Toro 125-1812

ROD-HYDRO, LH

$21.99

$

Usually ships in 3-6 days

0

9

Toro 127-3378

ROD-HYDRO, RH

$21.99

$

Usually ships in 3-6 days

0

10

Toro 1-303105

YOKE-ADJUSTABLE

$12.99

$

In Stock, Qty 6

0

11

Toro 1-808280

PIN-CLEVIS

$2.99

$

In Stock, Qty 17

0

12

Toro 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

13

Toro 3220-2

NUT-JAM

$1.49

$

In Stock, Qty 20+

0

14

Toro 119-8842

MOUNT-ROD, HYDRO
(Superseded to 138-7218)

$12.99

$

Usually ships in 3-6 days

0

15

Toro 1-603807

SPRING-RETURN, NEUTRAL

$3.49

$

In Stock, Qty 19

0

16

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

17

Toro 3234-47

SCREW-HHF

$2.99

$

Usually ships in 3-6 days

0

20

Toro 1-806003

PIN-COTTER

$1.49

$

In Stock, Qty 20+

0

22

Toro 120-5470

DECAL-HOC

$12.99

$

Usually ships in 3-6 days

0

23

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
