74684 (ZS 4200 S) - Toro 42" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) Engine and Muffler Assembly Parts Diagram

42" TimeCutter Zero-Turn Mower

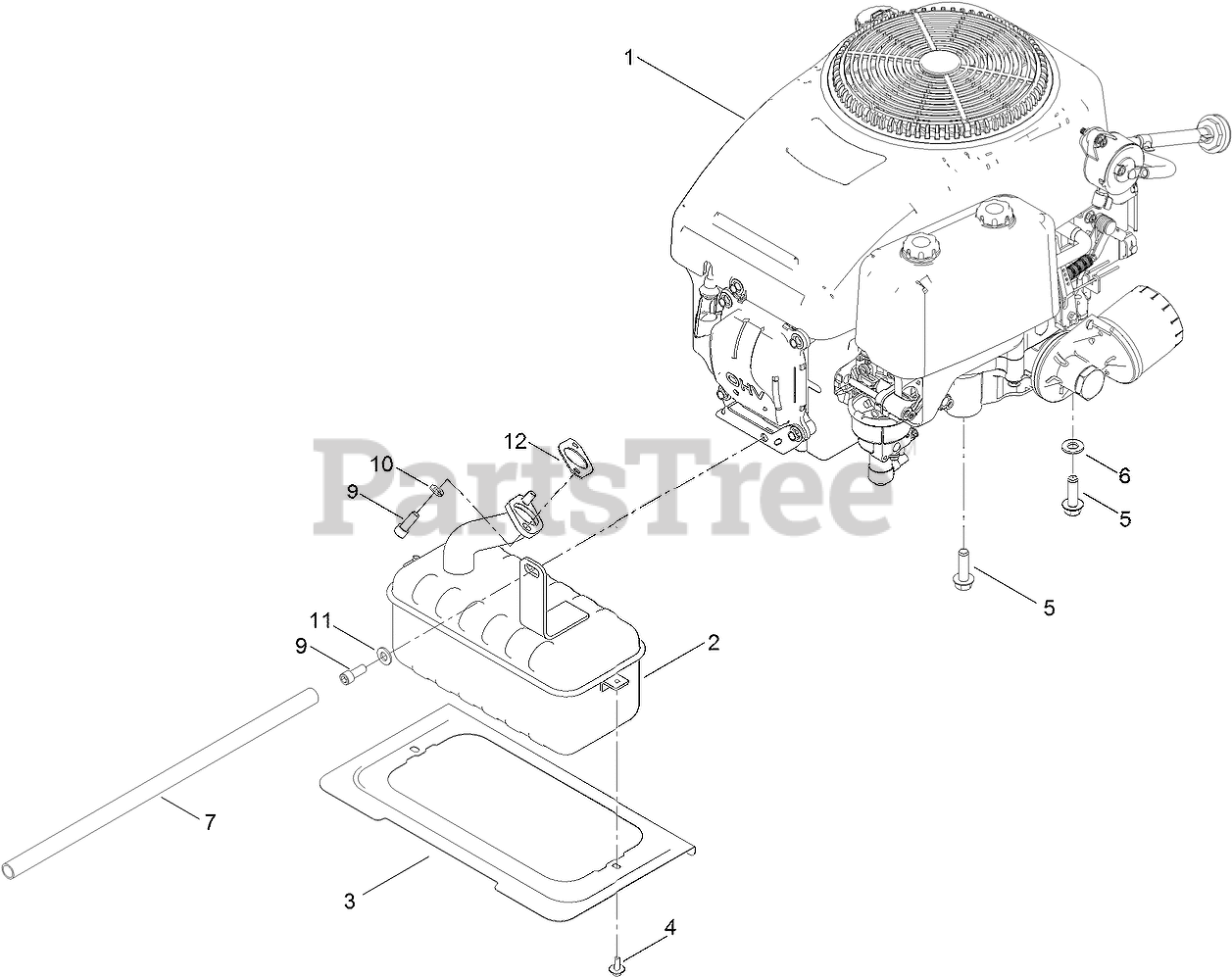

Engine and Muffler Assembly Parts Diagram

  • Title

1

Toro 133-9973

ENGINE-LC1P92F-1

$2153.99

$

Usually ships in 3-6 days

0

2

Toro 130-0691

MUFFLER

$122.99

$

In Stock, only 1 left!

0

3

Toro 131-1071-03

SHIELD-HEAT

$12.99

$

In Stock, only 4 left!

0

4

Toro 139-1700

SCREW-HWH, THD ROLL

$1.49

$

Usually ships in 3-6 days

0

5

Toro 139-2576

SCREW-HWH, THD ROLL

$2.99

$

Usually ships in 3-6 days

0

5

Toro 32144-109

SCREW-THD

$4.99

$

In Stock, Qty 18

0

6

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

0

7

Toro 106-7022

TUBE-DRAIN, OIL

$8.99

$

In Stock, Qty 7

0

9

Toro 3274-10

SCREW-HSH

$9.99

$

In Stock, Qty 20+

0

10

Toro 136-8682

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

10

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

11

Toro 120-9683

WASHER-PLAIN

$2.99

$

Usually ships in 3-6 days

0

11

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 18

0

12

Toro 120-4317

GASKET-EXHAUST

$5.49

$

In Stock, Qty 12

0
