Toro 74688 (ZS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) 50 Inch Deck Assembly Parts Lookup with Diagrams

1

Toro 131-3606

50 INCH DECK AND DECAL ASM

$1446.99

$

Usually ships in 3-6 days

6

Toro 138-7253

Bracket-Hanger, RIGHT REAR

$13.99

$

Usually ships in 3-6 days

7

Toro 138-7254

Bracket-Hanger, LEFT REAR

$17.99

$

Usually ships in 3-6 days

8

Toro 139-2590

Screw

$1.49

$

Usually ships in 3-6 days

9

Toro 139-1730

Screw

$2.99

$

In Stock, only 2 left!

10

Toro 139-2587

SCREW-CARR

$1.49

$

Usually ships in 3-6 days

11

Toro 139-2550

Pin-Clevis

$3.49

$

Usually ships in 3-6 days

12

Toro 138-7255

Rod

$6.99

$

Usually ships in 3-6 days

13

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, only 4 left!

14

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

15

Toro 120-9683

WASHER-PLAIN

$3.49

$

In Stock, only 1 left!

16

Toro 137-3083

PIN-HAIR

$1.49

$

In Stock, Qty 20+

17

Toro 108-7890

COVER-BELT

$23.99

$

In Stock, Qty 12

19

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

20

Toro 133-9289

FITTING-WASHOUT

$6.99

$

In Stock, Qty 8

20:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 6

25

Toro 112-3983-03

BAFFLE-CUTOFF

$28.99

$

In Stock, only 2 left!

27

Toro 1-603299

ROLLER-SCALP, ANTI

$25.99

$

In Stock, Qty 20+

28

Toro 138-7256

ROD

$11.99

$

Usually ships in 3-6 days

30

SPINDLE ASM

Note: Not serviced separately

$

Not available 

30:2

Toro 138-7258

SPACER

$

Currently unavailable 

30:3

Toro 136-5441

BEARING-BALL

$8.49

$

In Stock, Qty 20+

31

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

32

Toro 117-7268

SHAFT-SPINDLE

$33.99

$

In Stock, Qty 8

33

Toro 115-5062-03

BLADE-MULCH, 17.50 INCH

$31.99

$

In Stock, Qty 5

34

Toro 3290-465

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

35

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 14

36

Toro 125-5575

PULLEY

$99.99

$

In Stock, only 2 left!

37

Toro 139-2578

Nut-Hex

$1.49

$

Usually ships in 3-6 days

38

Toro 139-1726

Washer

$2.99

$

Usually ships in 3-6 days

39

Toro 139-2578

Nut-Hex

$1.49

$

Usually ships in 3-6 days

40

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.99

$

In Stock, Qty 20+

41

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

42

Toro 138-7262

ARM-IDLER

$19.99

$

In Stock, only 2 left!

43

Toro 132-9420

PULLEY-IDLER, FLAT

$36.99

$

In Stock, Qty 20+

44

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

45

Toro 139-2602

SCREW-HH

$1.49

$

Usually ships in 3-6 days

46

Toro 119-8820

V-BELT

(Superseded to 119-8820-SL) 

$60.99

$

Usually ships in 3-6 days

47

Toro 138-7264

SPRING-EXTENSION

$8.99

$

In Stock, only 1 left!

48

Toro 138-7266

HOOK-RETURN SPRING

$5.99

$

In Stock, only 2 left!

49

Toro 108-7895

DEFLECTOR

$74.99

$

In Stock, Qty 9

50

Toro 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 20+

52

Toro 139-2551

BOLT-SHOULDER

$6.99

$

Usually ships in 3-6 days

56

Toro 119-2368

DECAL-RECYCLER

$6.49

$

In Stock, only 2 left!

57

Toro 139-1713

SCREW-TAPTITE

$1.49

$

Usually ships in 3-6 days

65

Toro 139-2601

SCREW-HH

$1.49

$

Usually ships in 3-6 days

66

Toro 137-3052

SCREW-HH

$1.49

$

Usually ships in 3-6 days

67

Toro 3296-59

See Supercession: 121-4600

(Superseded to 121-4600) 

$1.49

$

In Stock, Qty 20+

69

Toro 76-2160

PLATE-KICKER

$17.99

$

Usually ships in 3-6 days

72

Toro 112-4010-03

RH BAFFLE ASM

$329.99

$

Usually ships in 3-6 days

73

Toro 138-7272

ROD SUPPORT, UPPER

$19.99

$

Usually ships in 3-6 days

74

Toro 131-3684

ROD SUPPORT, LOWER

$25.99

$

Usually ships in 3-6 days

75

Toro 131-3926

GUARD-SIDE

$27.99

$

Usually ships in 3-6 days

76

Toro 131-3648-03

SHIELD-FRONT

$25.99

$

Usually ships in 3-6 days

77

Toro 3274-55

SCREW-HSBH

$5.49

$

In Stock, Qty 8

78

Toro 1-803037

NUT-RETAINING

$1.99

$

Usually ships in 3-6 days

81

Toro 139-1703

SCREW-PLASTIC, PPH

$1.49

$

Usually ships in 3-6 days

82

Toro 132-0900

NUT-RETAINING

$0.99

$

Usually ships in 3-6 days

83

Toro 112-4011-03

LH BAFFLE ASM

$329.99

$

Usually ships in 3-6 days

90

Toro 94-5583

KNOB

$14.99

$

In Stock, only 2 left!

91

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

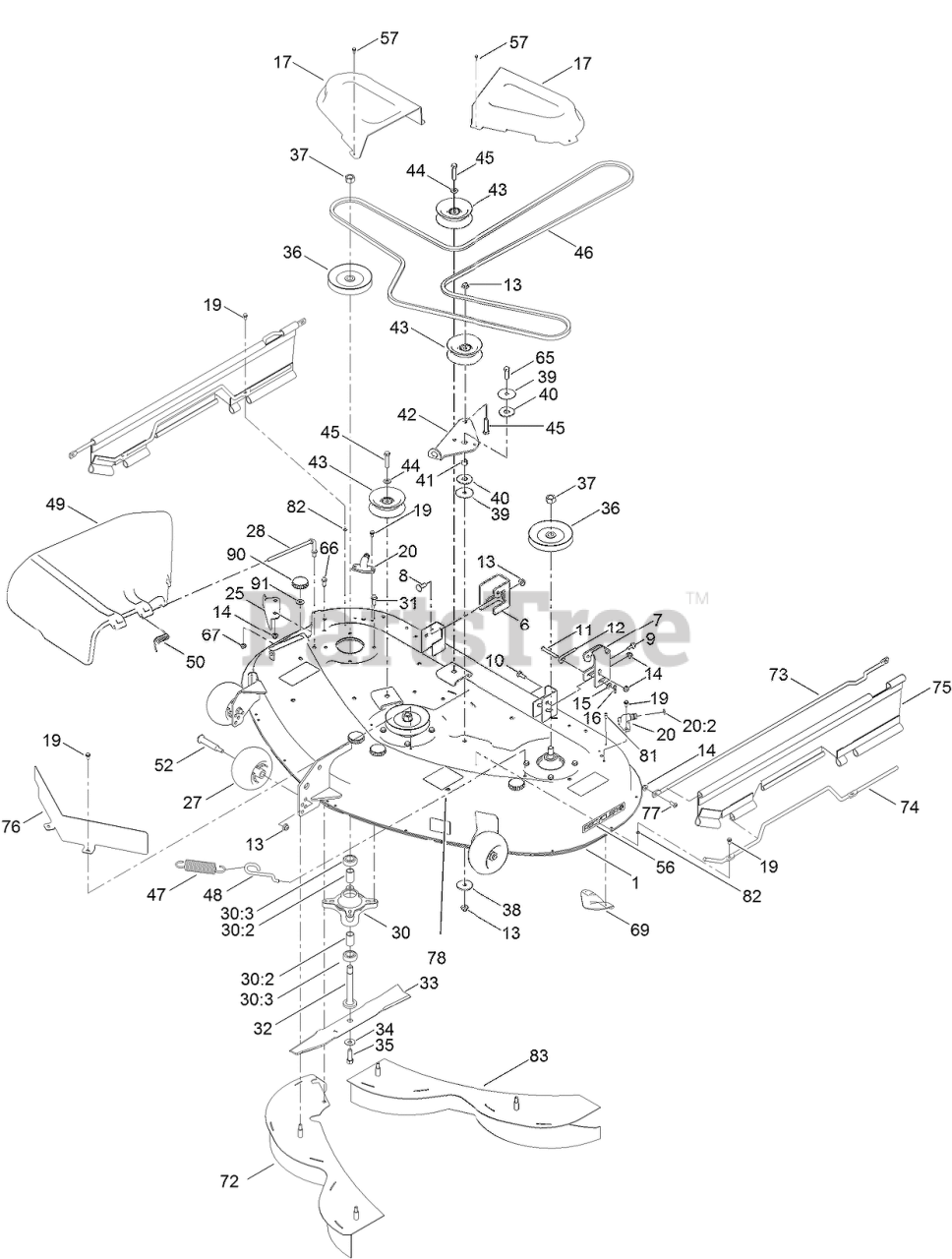

74688 (ZS 5000) - Toro 50" TimeCutter Zero-Turn Mower (SN: 400000000 - 999999999) 50 Inch Deck Assembly Parts Diagram

50 Inch Deck Assembly Parts Diagram
