Toro 74691 (MX 4275 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 413000000 - 414499999) 42in Deck and Decal Assembly Parts Lookup with Diagrams

1

Toro 138-9769

42IN DECK AND DECAL ASM

$751.99

$

Usually ships in 3-6 days

1:3

Toro 130-0731

DECAL-DANGER

$3.49

$

Usually ships in 3-6 days

1:4

Toro 132-0872

DECAL-DANGER, DECK

$2.99

$

In Stock, Qty 17

1:5

Toro 105-7015

DECAL-ROUTING, BELT

$5.49

$

In Stock, Qty 19

6

Toro 139-3214

SPINDLE ASM

$77.99

$

Usually ships in 3-6 days

6:2

Toro 120-7935

SPACER

$2.99

$

In Stock, Qty 20+

6:3

Toro 138-9770

BEARING-BALL

$7.99

$

In Stock, Qty 20+

7

Toro 32144-41

SCREW-TAPTITE

$5.49

$

In Stock, Qty 20+

8

Toro 117-7268

SHAFT-SPINDLE

$29.99

$

In Stock, Qty 20+

9

Toro 139-2433

Pulley

$38.99

$

In Stock, Qty 20+

10

Toro 139-2578

Nut-Hex

$1.49

$

Usually ships in 3-6 days

11

Toro 117-5376-03

BLADE-MULCH

$30.99

$

In Stock, Qty 20+

13

Toro 145-0411

BOLT-BLADE, SEMS

$3.49

$

Usually ships in 3-6 days

14

Toro 132-9420

PULLEY-IDLER, FLAT

$34.99

$

In Stock, Qty 20+

15

Toro 115-1166

WASHER-FLAT

$4.99

$

In Stock, Qty 9

16

Toro 138-0722

SCREW-HH

$1.49

$

In Stock, only 1 left!

17

Toro 139-5802

WASHER-PLAIN

$5.49

$

Usually ships in 3-6 days

18

Toro 139-1726

Washer

$2.99

$

Usually ships in 3-6 days

19

Toro 114-0463

WASHER-FRICTION, COMPOSITE

$5.49

$

In Stock, Qty 20+

20

Toro 115-4986

SPACER

$2.99

$

In Stock, Qty 20+

21

Toro 119-4042

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

22

Toro 138-7262

ARM-IDLER

$18.99

$

In Stock, only 1 left!

23

Toro 147-2924

V-BELT

$54.99

$

In Stock, only 2 left!

24

Toro 137-2019

ROD-PIVOT

$12.99

$

In Stock, Qty 19

25

Toro 138-7502

DEFLECTOR-DISCHARGE

$62.99

$

In Stock, Qty 20+

26

Toro 138-7268

SPRING-TORSION

$2.99

$

In Stock, Qty 7

27

Toro 121-4600

NUT-HEX

$1.49

$

In Stock, Qty 20+

28

Toro 1-603299

ROLLER-SCALP, ANTI

$22.99

$

In Stock, Qty 20+

29

Toro 139-2551

BOLT-SHOULDER

$6.49

$

In Stock, only 1 left!

30

Toro 133-9289

FITTING-WASHOUT

$6.49

$

In Stock, Qty 16

30:2

Toro 133-9290

O-RING

$1.49

$

In Stock, Qty 10

31

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

32

Toro 138-7267

HOOK-RETURN SPRING

$2.99

$

In Stock, Qty 20+

33

Toro 138-7265

SPRING-EXTENSION

$7.99

$

In Stock, Qty 9

34

Toro 139-5871

PIN-DECK

$2.99

$

In Stock, Qty 10

35

Toro 144-1905

COVER-BELT

$6.49

$

In Stock, only 1 left!

37

Toro 139-3272-03

BRACKET-COVER, BELT

$12.99

$

In Stock, only 1 left!

38

Toro 137-3079

WASHER-PLAIN

$0.99

$

Usually ships in 3-6 days

39

Toro 94-6961

SCREW

$1.49

$

In Stock, only 3 left!

40

Toro 140-0370

LEFT GUARD ASM

$51.99

$

Usually ships in 3-6 days

40:1

Toro 139-7540

GUARD-LEFT

$26.99

$

Usually ships in 3-6 days

40:2

Toro 139-7468

ROD-TOP, LEFT

$

Currently unavailable 

40:3

Toro 139-7476

ROD-SUPPORT, LOWER

$39.99

$

Usually ships in 3-6 days

41

Toro 140-0371

RIGHT GUARD ASM

$51.99

$

Usually ships in 3-6 days

41:1

Toro 139-7541

GUARD-RIGHT

$26.99

$

Usually ships in 3-6 days

41:2

Toro 139-7477

ROD-SUPPORT, LOWER

$39.99

$

Usually ships in 3-6 days

41:3

Toro 140-0385

ROD-TOP, RIGHT

$

Currently unavailable 

42

Toro 1-803037

NUT-RETAINING

$1.49

$

Usually ships in 3-6 days

43

Toro 138-9753

SCREW

$1.49

$

In Stock, Qty 20+

44

Toro 137-2039-03

SHIELD-FROUNT

$22.99

$

Usually ships in 3-6 days

45

Toro 119-4041

NUT-HF

$1.49

$

In Stock, Qty 20+

46

Toro 138-9837-03

BAFFLE-RECYCLING

$271.99

$

Usually ships in 3-6 days

47

Toro 139-2630

BOLT-CARR

$1.49

$

Usually ships in 3-6 days

48

Toro 119-2368

DECAL-RECYCLER

$5.49

$

In Stock, only 4 left!

49

Toro 140-5183-01

PLATE-MOUNT, GUARD

$14.99

$

Usually ships in 3-6 days

50

Toro 140-2701-03

DEFLECTOR

$81.99

$

Usually ships in 3-6 days

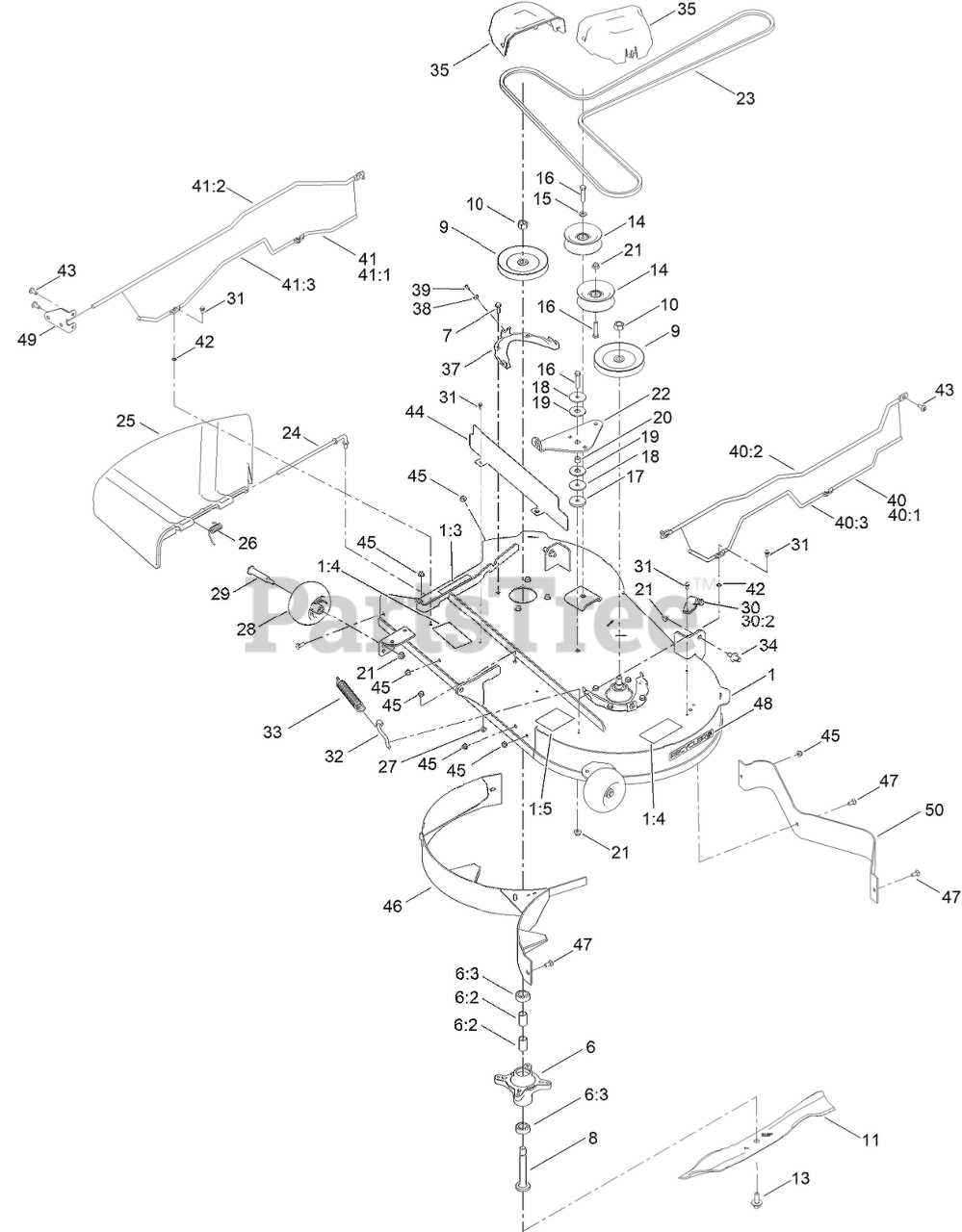

74691 (MX 4275 T) - Toro 42" TimeCutter Zero-Turn Mower (SN: 413000000 - 414499999) 42in Deck and Decal Assembly Parts Diagram

42in Deck and Decal Assembly Parts Diagram
