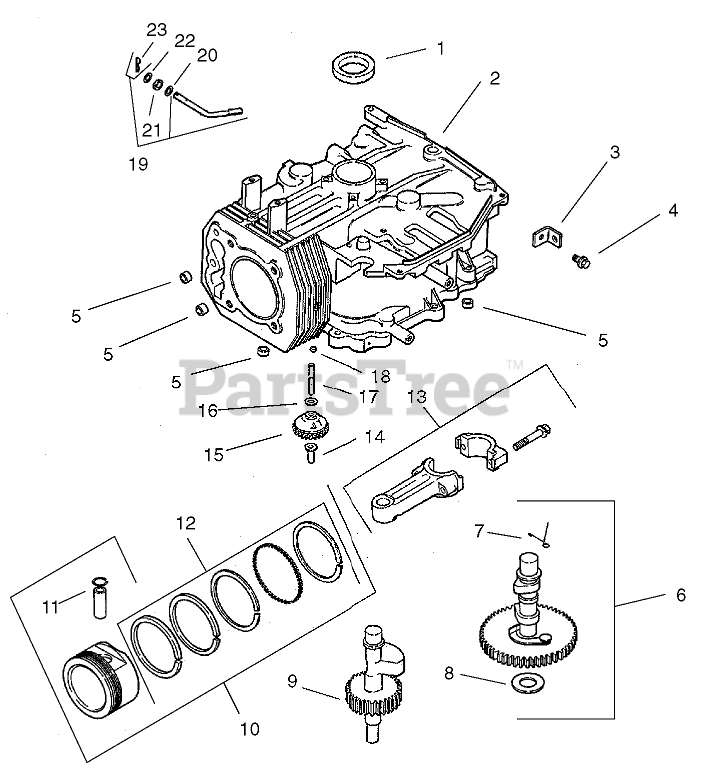

74701 (Z 17-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 210000001 - 210999999) (2001) CRANKCASE ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Kohler 12 032 03-S

Seal-Oil

Note: Call PartsTree Customer Service for more information on Kohler Parts

$9.99

$

Usually ships in 2-5 days

0

2

Block, cylinder (Use:Short Block 12 522 51)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

3

Kohler 12 445 02-S

Strap-Lifting

Note: Call PartsTree Customer Service for more information on Kohler Parts

$16.99

$

Usually ships in 2-5 days

0

4

Kohler M-839025-S

Screw-HF (M8x1.25x25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 3 left!

0

5

Kohler 24 380 13-S

Pin-Locating
(Superseded to 24 380 16-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 8

0

6

Kohler 12 755 49-S

Kit, camshaft (Includes 7, 8)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$209.99

$

Usually ships in 2-5 days

0

7

Kohler 12 089 31-S

Spring-Actuating
(Superseded to 12 089 37-S)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

8

Kohler 12 422 08-S

SHIM-CAMSHAFT (BLUE .03)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 09-S

SHIM-CAMSHAFT (RED .032)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0

Kohler 12 422 10-S

SHIM-CAMSHAFT (YELLOW .034)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 11-S

SHIM-CAMSHAFT (GREEN .036)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 1 left!

0

Kohler 12 422 12-S

SHIM-CAMSHAFT (GRAY .038)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

In Stock, only 1 left!

0

Kohler 12 422 13-S

SHIM-CAMSHAFT (BLACK .04)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.99

$

Usually ships in 2-5 days

0

Kohler 12 422 07-S

SHIM-CAMSHAFT (WHITE .028)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

Usually ships in 2-5 days

0

9

Kohler 12 144 28-S

Shaft-Balance

Note: Call PartsTree Customer Service for more information on Kohler Parts

$109.99

$

Usually ships in 2-5 days

0

10

Kohler 12 874 07-S

Piston w/Ring Set (Std.)(Includes 11, 12)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 12 874 08-S

Piston w/Ring Set (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 12 874 09-S

Piston w/Ring Set (.50)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

Kohler 12 874 11-S

Piston w/Ring Set (.08)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

11

Kohler 12 018 02-S

Retainer-Pin, Piston

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, only 2 left!

0

12

Kohler 12 108 07-S

Ring Set (Std. and .08)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$82.99

$

In Stock, only 1 left!

0

Kohler 12 108 08-S

Ring Set (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$110.99

$

Usually ships in 2-5 days

0

Kohler 12 108 09-S

Ring Set (.50)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Kohler 12 067 11-S

Rod-Connecting (STD)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$80.99

$

In Stock, only 1 left!

0

Kohler 12 067 06-S

Rod-Connecting (.25)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$124.99

$

Usually ships in 2-5 days

0

14

Kohler 12 380 01-S

PIN-REGULATING, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$3.49

$

In Stock, Qty 13

0

15

Kohler 12 043 05-S

Gear-Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$24.99

$

In Stock, Qty 8

0

16

Kohler M-631005-S

WASHER-FLAT (6 MM)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 8

0

17

Kohler 12 144 02-S

SHAFT-GEAR, GOVERNOR

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.49

$

In Stock, Qty 6

0

18

Kohler 52 139 09-S

PLUG-CUP

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 8

0

19

Kohler 12 755 64-S

Kit, governor cross shaft w/clip (Includes 23)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$11.99

$

In Stock, only 3 left!

0

20

Kohler X-25-102-S

WASHER-FLAT (1/4)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 9

0

21

Kohler 12 032 01-S

Seal-Cross Shaft, Governor

Note: Call PartsTree Customer Service for more information on Kohler Parts

$4.99

$

In Stock, Qty 9

0

22

Kohler M-631015-S

WASHER-FLAT (6mm)

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

In Stock, Qty 10

0

23

Kohler 12 154 05-S

Clip-Pin, Hitch

Note: Call PartsTree Customer Service for more information on Kohler Parts

$2.49

$

Usually ships in 2-5 days

0
