74701 (Z 17-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 210000001 - 210999999) (2001) ELECTRICAL ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

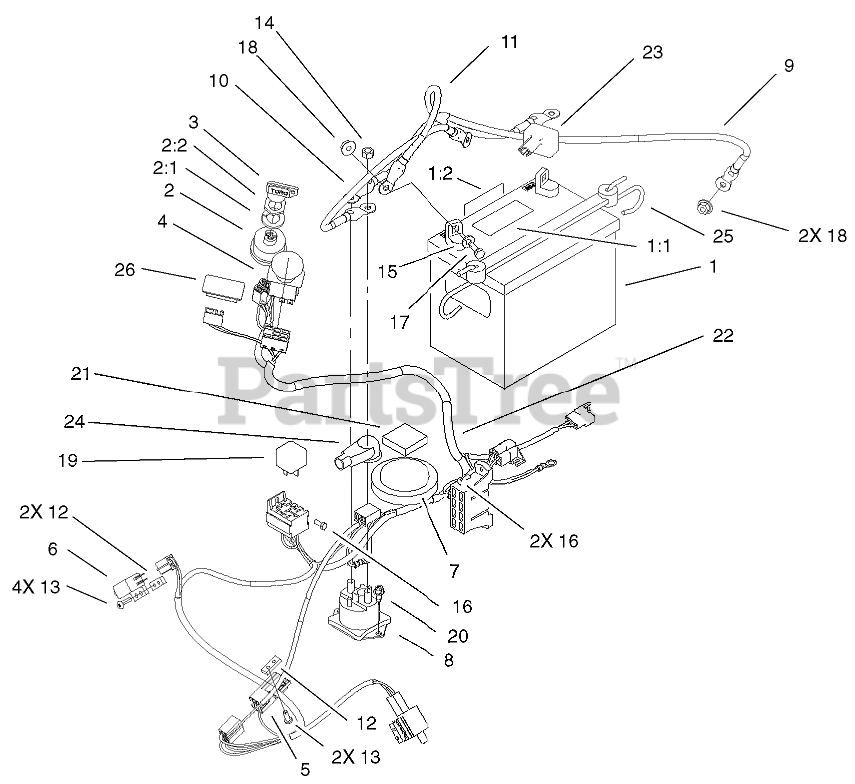

ELECTRICAL ASSEMBLY Parts Diagram

  • Title

1

Toro 104-2491

BATTERY
(Superseded to 104-8162)

$

$

Not available

1:1

Toro 104-4163

Decal-Battery

$

$

Currently unavailable

1:2

Toro 104-5091

Decal-Battery

$

$

Currently unavailable

2

Toro 88-9830

Key Switch ASM
(Superseded to 104-2541)

$37.99

$

In Stock, Qty 20+

0

2:1

Toro 3254-5

WASHER-TOOTH, INTERNAL

$1.49

$

In Stock, Qty 11

0

2:2

Toro 218-461

NUT-HH

$3.99

$

In Stock, Qty 17

0

3

Toro 63-8360

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

4

Toro 95-7489

SWITCH-PTO

$34.99

$

Usually ships in 3-6 days

0

5

Toro 1-633111

SWITCH

$20.99

$

In Stock, Qty 20+

0

6

Toro 65-7410

SWITCH-POLE, SINGLE
(Superseded to 1-513051)

$18.99

$

In Stock, only 4 left!

0

7

Toro 100-3524

SWITCH-SEAT

$60.99

$

In Stock, only 1 left!

0

8

Toro 28-4210

SOLENOID

$64.99

$

In Stock, only 3 left!

0

9

Toro 28-3891

WIRE-SOLENOID/STARTER

$27.99

$

Usually ships in 3-6 days

0

10

Toro 93-1189

WIRE ASM

$29.99

$

Usually ships in 3-6 days

0

11

Toro 93-0324

CABLE

$42.99

$

Usually ships in 3-6 days

0

12

Toro 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 14

0

13

Toro 32144-8

SCREW-PPHTF

$5.99

$

Usually ships in 3-6 days

0

14

Toro 32149-1

NUT-KEPS

$5.99

$

In Stock, Qty 11

0

15

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

16

Toro 32144-1

SCREW-TAPTITE

$3.49

$

In Stock, Qty 18

0

17

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

18

Toro 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

19

Toro 98-7249

RELAY

$22.99

$

In Stock, Qty 12

0

20

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

21

Toro 104-2488

FOAM-SWITCH, SEAT

$6.99

$

Usually ships in 3-6 days

0

22

Toro 104-3686

Harness-Wire Kohler

$

$

Not available

23

Toro 28-8080

BOOT-TERMINAL

$23.99

$

Usually ships in 3-6 days

0

24

Toro 93-3190

BOOT-INSULATOR, TERMINAL

$6.99

$

Usually ships in 3-6 days

0

25

Toro 104-2466

HOLDDOWN-BATTERY

$23.99

$

In Stock, Qty 7

0

26

Toro 99-7420

PLUG-HOLE

$8.49

$

Usually ships in 3-6 days

0
