74701 (Z 17-52) - Toro 52" TimeCutter Zero-Turn Mower (SN: 210000001 - 210999999) (2001) ENGINE & CLUTCH ASSEMBLY Parts Diagram

52" TimeCutter Zero-Turn Mower

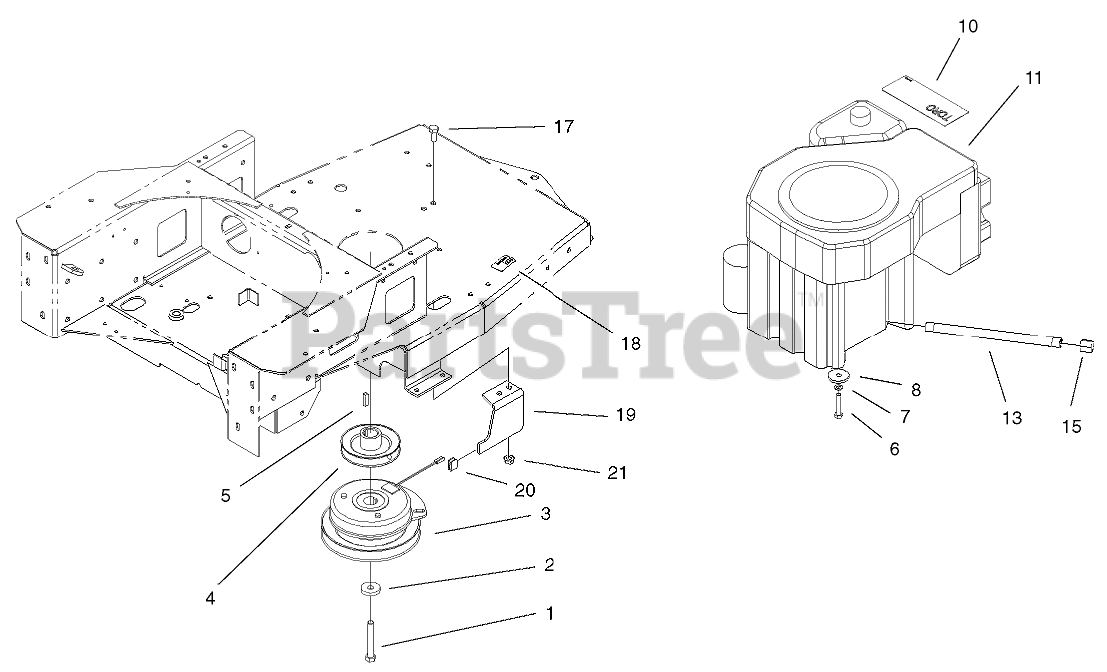

ENGINE & CLUTCH ASSEMBLY Parts Diagram

  • Title

1

Toro 3212-12

SCREW-HH

$3.49

$

In Stock, Qty 9

0

2

Toro 112843

WASHER

$3.49

$

In Stock, Qty 18

0

3

Toro 104-3624

CLUTCH
(Superseded to 109-7035)

$485.99

$

Usually ships in 3-6 days

0

4

Toro 100-7314

PUMP DRIVE PULLEY ASM

$192.99

$

Usually ships in 3-6 days

0

5

Toro 5-7280

KEY

$5.49

$

In Stock, only 2 left!

0

6

Toro 33114-030

SCREW-HH

$1.49

$

Usually ships in 3-6 days

0

7

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

8

Toro 62-7190

SPACER-STEEL

$4.99

$

Usually ships in 3-6 days

0

10

Toro 104-8020

Decal-Engine Kohler
(Superseded to 105-7034)

$

$

Not available

11

Engine-Kohler, Cv490-27503

Note: Not serviced

$

$

Not available

11

Engine-Kohler, Cv490-27503

Note: Call PartsTree Customer Service for more information on Kohler Parts

$

$

Not available

13

Toro 104-8018

NIPPLE-PIPE

$80.99

$

Usually ships in 3-6 days

0

15

Toro 288-10

CAP-PIPE

$10.99

$

Usually ships in 3-6 days

0

17

Toro 323-4

SCREW-HH

$3.99

$

In Stock, Qty 19

0

18

Toro 65-2690

DECAL-SURFACE, HOT

$5.49

$

In Stock, only 4 left!

0

19

Toro 104-3613-03

STOP-CLUTCH

$

$

Not available

20

Toro 98-5023

BUMPER

$6.99

$

Usually ships in 3-6 days

0

21

Toro 32128-21

NUT-HF

$0.99

$

In Stock, Qty 20+

0
